HDMI Audio Decoder,4K Audio Digital to Analog Converter, 3.5mm Headphone Output, 5.1-Channel Mode,Support Network Player, HDTV, Blu-ray DVD, DVD, PS3, DM500S, DM800HD, Etc

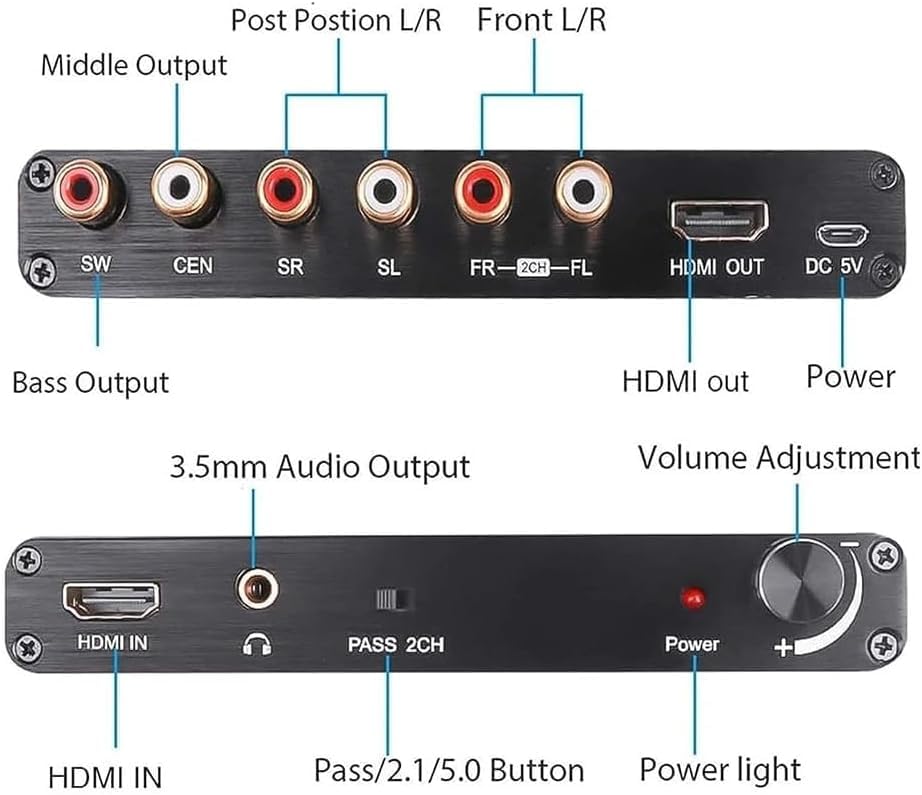

Product Description -Build-in high performance RTOS operating system and audio decoder chip; support DTS/AC-3. -Super fast start time about 3 seconds. -Input: HDMI, Output:HDMI;SW,CEN,SR,SL,FR,FL; 3.5mm Headphone Port -HDMI Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz. -Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action Specification: HDMIResolution:2160p@30Hz/ 1080p@50/60Hz/1080i/720p/1576i/480p/480i SupportVideoColorFormat:24bits/deep color 30bit,36bit AudioOutput:2CH/5.1CH Analog Audio MaxBandwidth:340MHz MaxBaudRate:10.2Gbps Input/ Output TMDS signal:0.5-1.5Volts p-p(TTL) Input/ Output DDC signal:5Volts p-p(TTL) SupportAudioFormat:MP3,AC3,DTS,WAV,WMA,AAC,ALAC,FLAC,APE,OGG,M4A Signal Noise Ratio:120db Stereo Isolation:80db(1KHZ) Channel Unbalance:0db Sampling Rate:32~192 KHz Bit Rate:16~24 Bit Response Frequency:20Hz~20KHz+/-0.7db THD:20Hz~20KHz 0.25-0.065% THD+N:1KHz 0.15% Max Power Current:420mA Power adapter format: input:AC(50/60Hz)100V-240V, Output:DC5V/2A Packing list Audio Decoder*1 Precautions: Please refer to the manual for correct usage to ensure its longevity. 1. Do not expose this unit to damp, high-temperature, dusty, corrosive, or oxidising environments. 2. All components must be protected from severe vibration, impact, or dropping. 3. Do not touch the power adapter plug with wet hands. 4. When unplugging, hold the plug itself. Do not pull directly on the power cord. 5. Switch off the device when not in use for extended periods. 6. Do not open the casing, and refrain from touching internal components. 7. Use only the original USB power cable supplied with the device.

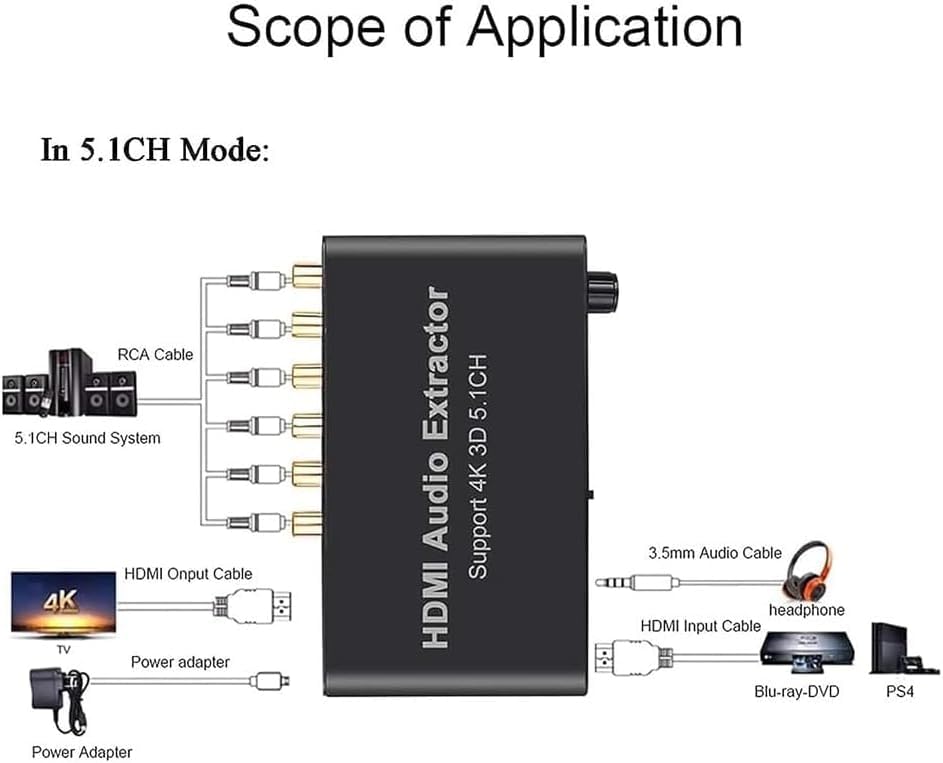

• --This audio decoder can auto convert HDMI input to 5.1 channel analog audio output, and support decoding Dolby AC-3/DTS(include 5.1 RAW digital audio streaming).
• -- HDMI to achieve the synchronization of audio signal decode, There are PASS/2.0CH/5.1CH three kinds of audio mode options, l Supports 6CH volume synchronous adjustment.
• -- 4k Image Quality And High-Definition Color, HDMI resolution is up to 3040×2160@ 30Hz, 4096×2160@ 30Hz, supporting 3D makes the stereoscopic image quality jump and vivid.
• ---Support Blu-Ray 3d, HDMI device definition through 3D format and resolution, realizes the standardization of 3D system output and input scores, and enjoys the cinema effect.
• --High Compatibility, Suitable for HDMI devices, such as computers, set-top boxes, high-definition players, PS3/PS4 and other devices to connect with real devices and functional audio.
