JMT M.2 NGFF SSD to SFF-8643 Adapter Card PCIe 4.0 High Speed Compatible with NVMe M Key to U2 SSD (with 80CM Cable)

JMT M.2 NGFF SSD to SFF-8643 Adapter Card PCIe 4.0 High Speed Compatible with NVMe M key to U2 SSD Specifications: Dimensions: 80mm (L) × 22mm (W) × 14mm (H) Product Features: 1. Supports installing one U.2/U.3 SFF-8639 SSD via the system's PCIe NVMe-compatible M.2 (NGFF) SSD slot, but the buyer must separately purchase an SSF-8643 to SFF-8639 cable. ⚠️ Note: Single U.3 mode SSDs are not supported. 2. The drive signal passes directly through the system's PCIe NVMe-compatible M.2 (NGFF) SSD slot. No conversion chip is used, so there is no performance limitation on the SSD. 3. Supports installation in 2260 and 2280 positions (the PCB can be cut—please test before cutting). 4. Compatible with PCIe 4.0/3.0 protocols. If the system's M.2 slot supports PCIe 4.0, the SSD is PCIe 4.0, and the cable is properly shielded for PCIe 4.0 (some cables may lack necessary shielding), the adapter can run at PCIe 4.0 speeds. If any of the three components (slot, SSD, cable) does not support PCIe 4.0, the SSD will not reach PCIe 4.0 speeds. Pre-purchase Checklist: 1. Ensure your motherboard has a PCIe NVMe-compatible M.2 (NGFF) SSD slot. SATA M.2 (NGFF) SSD slots are not supported. If you are unsure, contact your motherboard manufacturer. Do not purchase if your system is incompatible. 2. If you plan to set up RAID, use two identical SSDs of the same model and specification to ensure consistent performance. RAID compatibility is determined by your motherboard, not by this adapter. We do not provide technical support for RAID configuration. 3. Only compatible with U.2/U.3 SFF-8639 SSDs when connected via an SSF-8643 to SFF-8639 cable.

• This adapter card is designed for use with a motherboard port that features an M.2 NVMe-compatible PCIe slot. The adapter is equipped with an SFF-8643 interface.
• Warm Tips: This adapter is generally intended for users who already have the necessary cable and drive: an SSF-8643 to SFF-8639 cable(optional), connected to a U.2 or U.2/U.3 dual-mode SFF-8639 SSD. Single U.3 mode SSDs and SATA M.2 (NGFF) SSD slots Are NOT supported.

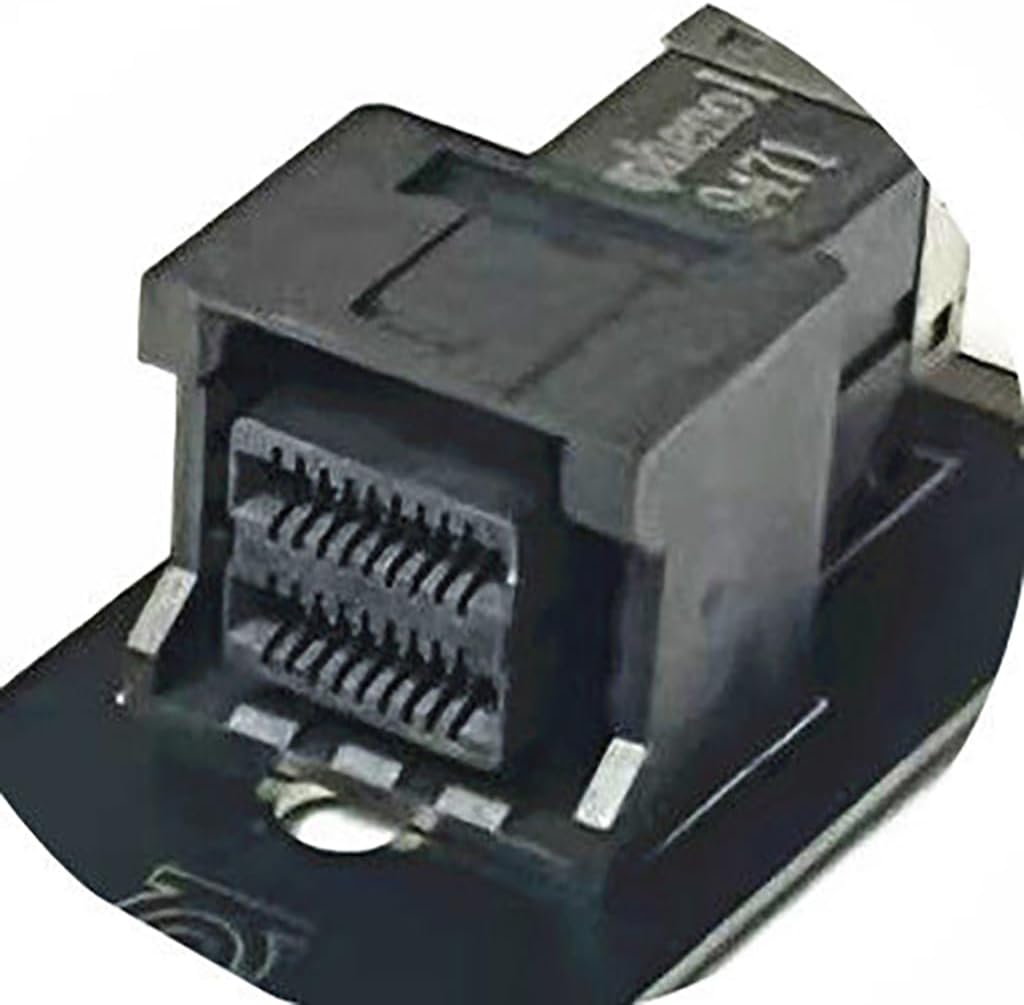

• Installation Tips: The height of the SFF-8643 connector is 14mm—please ensure your device has sufficient vertical clearance.
• Supports installation in 2260 and 2280 positions (the PCB can be cut—please test before cutting).
• Compatible with PCIe 4.0/3.0 protocols: If the system's M.2 slot supports PCIe 4.0, the SSD is PCIe 4.0, and the cable is properly shielded for PCIe 4.0 (some cables may lack necessary shielding), the adapter can run at PCIe 4.0 speeds. If any of the three components (slot, SSD, cable) does not support PCIe 4.0, the SSD will not reach PCIe 4.0 speeds.
• Warm Tips 2: U.2 SFF-8639 SSDs are not SAS interfaces. Some SFF-8639 interface drives are single U.3 mode only and are not supported.
