Pin and Bushing Adapter Service Kit 15012, to be Used with The Pin & Bushing Starter Kit for Heavy Duty Semi Trucks & Equipment, Adapter Tool for Removing Pins & Bushings

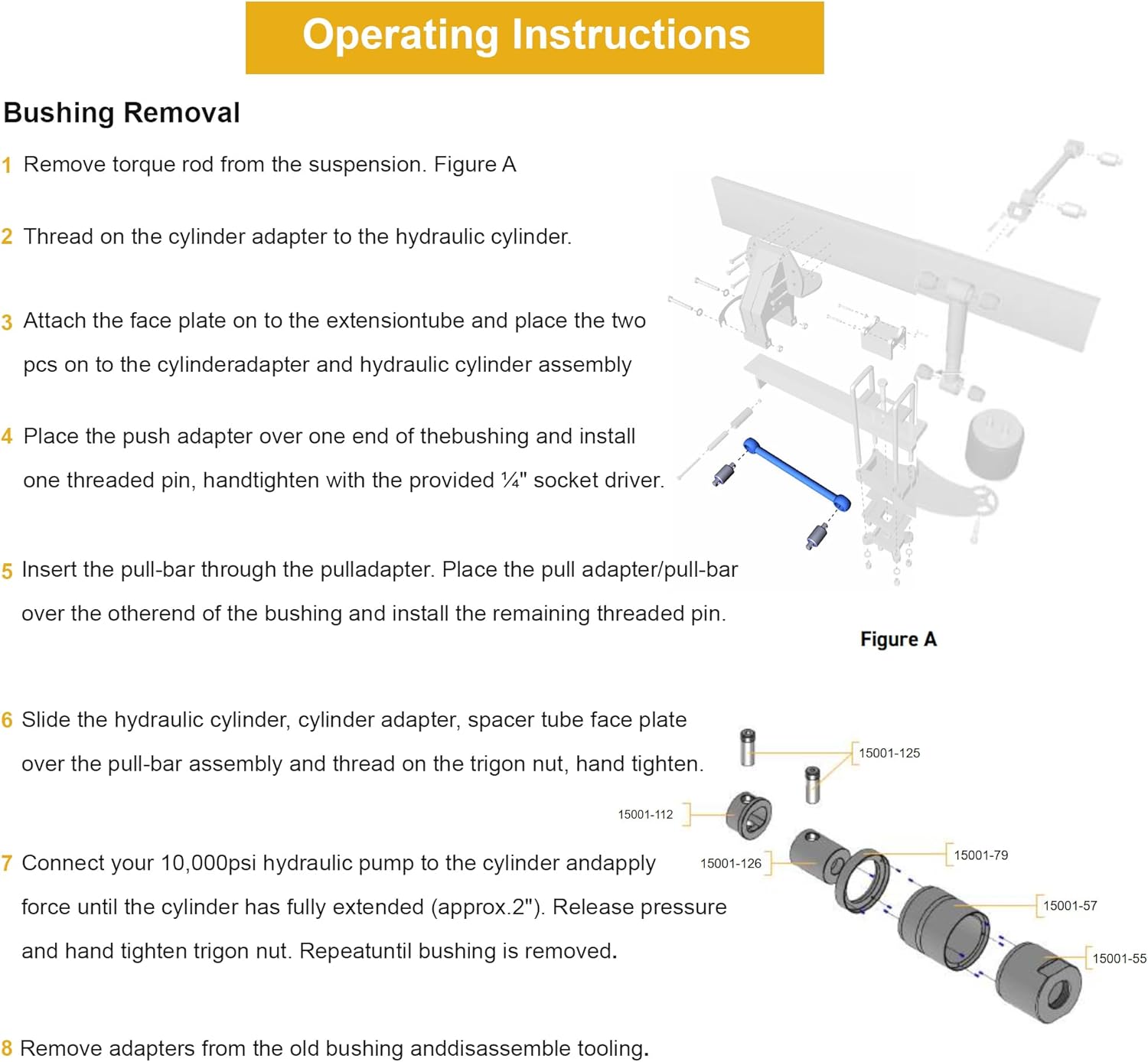

Condition: New Brand: Jetuplusllc OE/OEM Part Number: 15012 Type: Pin & Bushing Adapter Service Kit Material: Metal Color: Black Application: Work for Heavy Duty Truck & Equipment Made from high-grade steel for strength and long-lasting performance under demanding conditions. Black oxide coating provides excellent corrosion resistance, keeping the tool in top condition over time. Compatible Bushings：For R303868, TRB6822, TRB6822UB, 098065, 227723, 321265, 321265U, D424, D424S, DT1480, E3868, C889, 13528, 49210, 66649005, 49210000L, 64400005L, 66649005l, 1693063C1, 12L594, 0227723, TRB68220, 15012, TRB6822UB, 23986, RB187, and 13513 Operating Instructions Bushing Removal: 1.Remove torque rod from the suspension. (Figure 1) 2.Thread on the 15001-55 cylinder adapter to the 17202 hydraulic cylinder. 3.Attach the 15001-79 face plate on to the 15001-57 extension tube and place the two pcs on to the 15001-55 cylinder adapter and 17202 hydraulic cylinder assembly. 4.Place the 15001-112 push adapter over one end of the bushing and install one，15001-125 threaded pin, hand tighten with the provided ¼" socket driver. 5.Insert the 15001-3 pull-bar through the 15001-126 pull adapter. Place the pull adapter/pull-bar over the other end of the bushing and install the remaining 15001-125 threaded pin. 6. Slide the hydraulic cylinder, cylinder adapter, spacer tube, face plate over the pullbar assembly and thread on the 15001-7 trigon nut, hand tighten. 7.Connect your 10,000psi hydraulic pump to the cylinder and apply force until the cylinder has fully extended (approx. 2"). Release pressure and hand tighten trigon nut. Repeat until bushing is removed. 8.Remove adapters from the old bushing and disassemble tooling. Bushing Installation: 1. Thread on the 15001-55 cylinder adapter to the 17202 hydraulic cylinder. 2.Attach the 15001-79 face plate to the 15001-55 cylinder adapter (the 15001-57 extension tube is not used for installation). 3.Place the 15001-112 push adapter on to the new bushing and install one of the 15001-125 threaded pins, tighten by hand with the provided ¼" socket driver. 4.Insert the 15001-3 pull-bar through the 15001-126 pull adapter. Place the pull adapter/pull-bar over the other end of the bushing and install the remaining 15001- 125 threaded pin. 5.Insert the pull-bar and bushing assembly through the eye of the torque rod (threaded end of the pull-bar first) until the bushing is up against the torque rod in the desired orientation. 6. Place the hydraulic cylinder, cylinder adapter, face plate over the pull-bar and thread on the 15001-7 trigon nut, hand tighten. 7. Connect your 10,000psi hydraulic pump to the cylinder and apply force until the cylinder has fully extended. Release pressure and hand tighten trigon nut. Repeat until the bushing is in desired installed depth. 8.Remove adapters from the bushing and disassemble tooling. This Adapter Works on the Following OEM Bushing Numbers: R303868 TRB6822 TRB6822UB 09-8065 227723 321-265 321-265U D424 D424S DT1480 E-3868 C889 13528 49210, 66649-005 49210-000L 64400-005L 66649-005I 1693063C1 12L-5-94 Air Trac 02-27723 TRB68220

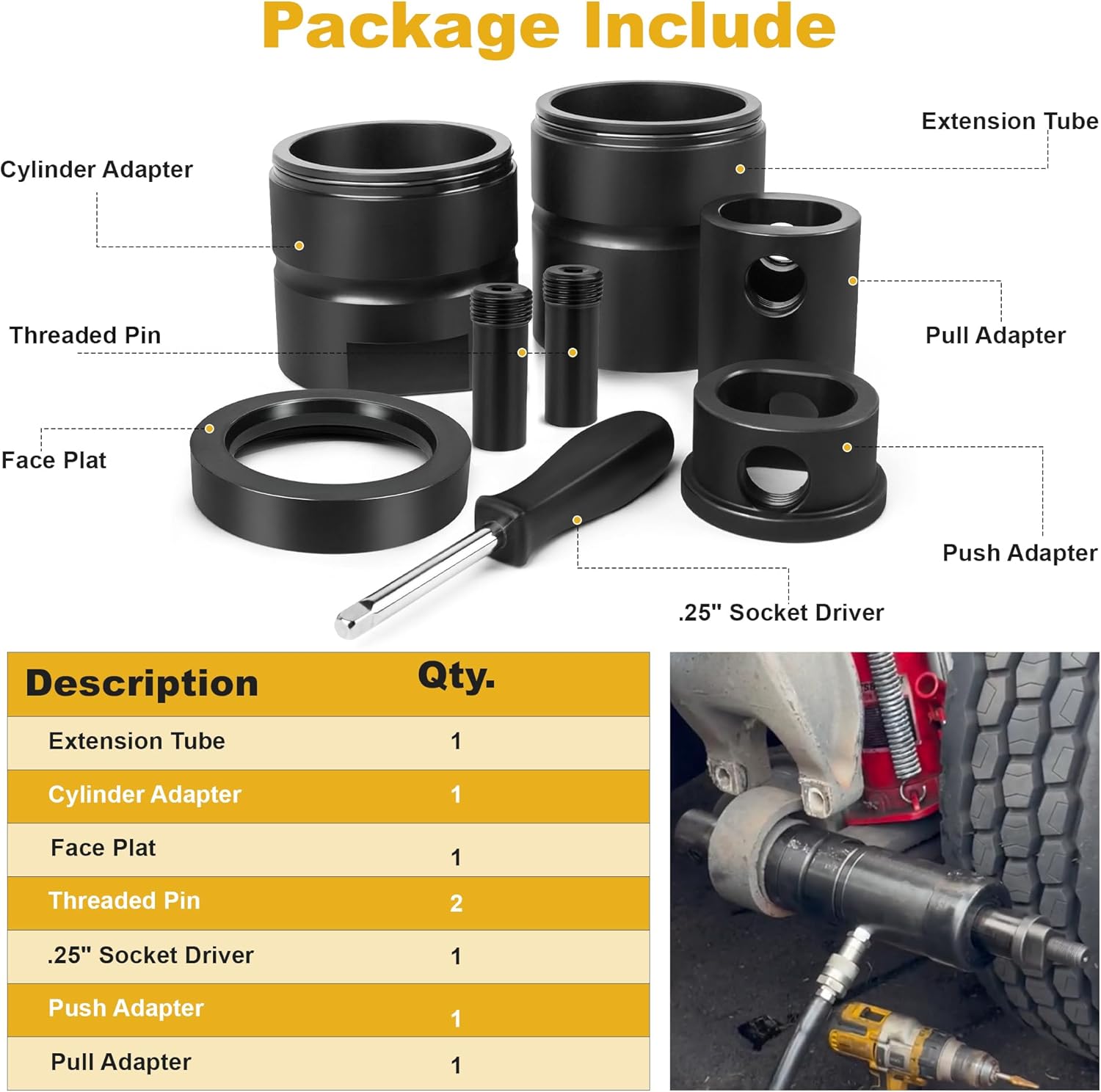

• Type: Pin & Bushing Adapter Service Kit
• OE/OEM Part Number: 15012
• Made from high-grade steel for strength and long-lasting performance under demanding conditions
• Black oxide coating provides excellent corrosion resistance, keeping the tool in top condition over time
• Compatible Bushings：For R303868, TRB6822, TRB6822UB, 098065, 227723, 321265, 321265U, D424, D424S, DT1480, E3868, C889, 13528, 49210, 66649005, 49210000L, 64400005L, 66649005l, 1693063C1, 12L594, 0227723, TRB68220, 15012, TRB6822UB, 23986, RB187, and 13513
