34 Row Engine Auto Transmission Oil Cooler 90w Cooling Electric Fan 10AN Hose in-line Fitting 180F Degree Thermostat Temperature Switch Complete Wiring Kit for Heavy Duty Truck Towing
4.0 (20 items)
Limited Time Sale$83.97 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215319290 | Release Date | 2026/04/12 | List Price | $55.98 | Model Number | 215319290 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Fluid Cooler:Universal 34 stacked plate aluminum heavy duty engine transmission cooler.Minimal pressure drop and to be used for engine, transmission or fuel cooling.Furnace brazed aluminum construction with 4 integrated mounting brackets.Full 2" deep turbulator-equipped plates and a matte black powder coat finish.Dimensions: 2" x 10.9" x 13" with 10AN end fittings and 56000 BTU per hour.Electric Fan:Universal 12 volt high performance 9" inch slim electric cooling fan.Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.Configured as an air puller by default or reversible to an air pusher.Includes mounting bracket feet and complete cooler fin tie strap kit.Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.Wiring Kit:Universal automotive electric fan 5-pin 40A relay switch harness kit.14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.Maximum 30 amp continuous draw with 30A in-line fuse protection.A/C override or manual toggle switch wire built directly into harness.Installation instructions, wiring diagram and components included.Fitting:Universal 10AN in-line electric fan thermostat temperature switch kit.1/8" inch NPT brass thread-in probe and dual pin disconnect switch.Preset to power fan at 180'F turn-on and 165'F turn-off temperature.Anodized aluminum barbed straight push-on hose fitting adapters.Measures temp of any liquid including oil, water and coolant fluid.
- 34 row stacked plate aluminum heavy duty engine transmission cooler.
- Dimensions: 2" x 10.9" x 13" with 10AN end fittings and 56k BTU/hour.
- Upgraded 90 watt fan motor draws 8 amps, producing over 702 CFM.

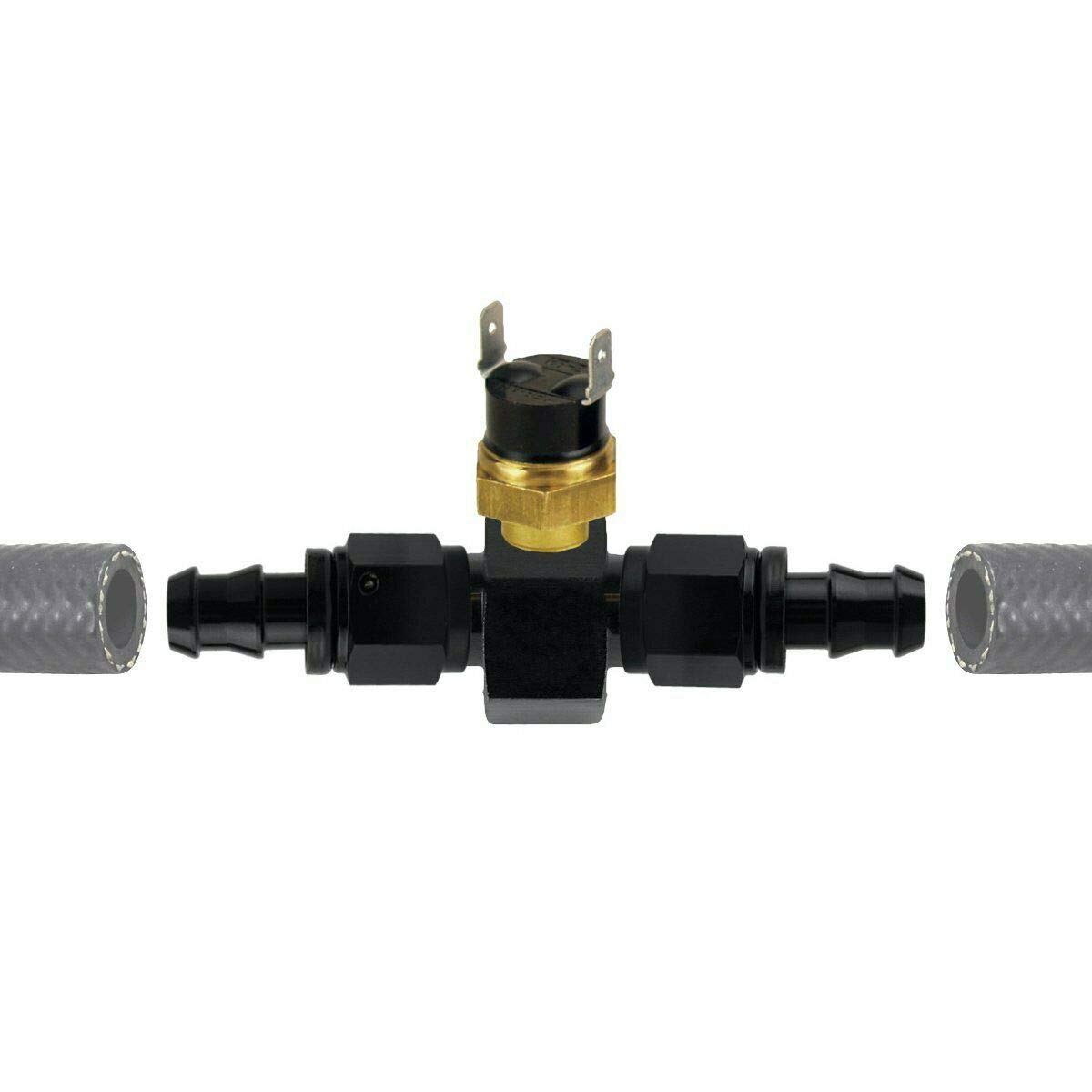

- Universal 10AN in-line electric fan thermostat temperature switch kit.
- Preset to power fan at 180'F turn-on and 165'F turn-off temperature.
| Voltage | 12 Volts |
|---|---|
| Wattage | 90 watts |
| Brand Name | American Volt |
| Unit Count | 1.0 Count |
| Manufacturer | American Volt |
| Material Type | Aluminum |
| Cooling Method | Air |
| Air Flow Capacity | 702 Cubic Feet Per Minute |
| Compatible Devices | Transmission Coolers |
| Power Connector Type | 2-Pin |
| Item Dimensions L x W x H | 13"L x 2"W x 10.9"H |
