Bruce & Shark Top End Rebuild Kit Cylinder Head Piston Fit for Honda TRX90 Sportrax 90 1993 1994 1995-2005

Specifications:Material: Aluminum, SteelDisplacement: 86ccBore Type: Standard BoreBore Size: STD 47mmIntake Valve: 23mmExhaust Valve: 20mmPin Diameter: 13mmPin Overall Length: 38.5mmReplacement Part Number:Cylinder: 12101-GB1-900Cylinder Head: 12200-GN8-920Cylinder Head Cover: 12301-GB6-910Cylinder Head Cover Gasket: 12391-GW8-680Cylinder Head R Side Cover: 12331-GB0-910Cylinder Head R Side Cover Gasket: 12394-GW8-680Cylinder Head L Side Cover: 12341-GB6-910Cylinder Head L Side Cover Gasket: 12395-GW8-680Oil Drain Plug(x2): 12361-035-000Cylinder Base Gasket: 12191-GW8-681Cylinder Head Gasket: 12250-GAN-770Piston (Std): 13101-GT0-000Pin, Piston: 13111-GB0-910Piston Ring Set (Std): 13011-HF7-305Circlips, piston: 94601-13000Valve Stem Seals: 12209-GB4-681Carb Insulator Gasket: 16201-HF7-000Fits Make/Model/Year:Fit for Honda TRX90 Sportrax 1993-2005Fit for Honda C90 Cub 1986-2002Fit for Honda C90M Cub 1985-2003Will not fit Honda CT90, ST90 - Flat Top Piston will not fit models with domed piston.Please compare our kit with your original part to make sure this is the correct kit that you want.

• Complete engine cylinder Top end rebuild kit for Honda 90cc.
• If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

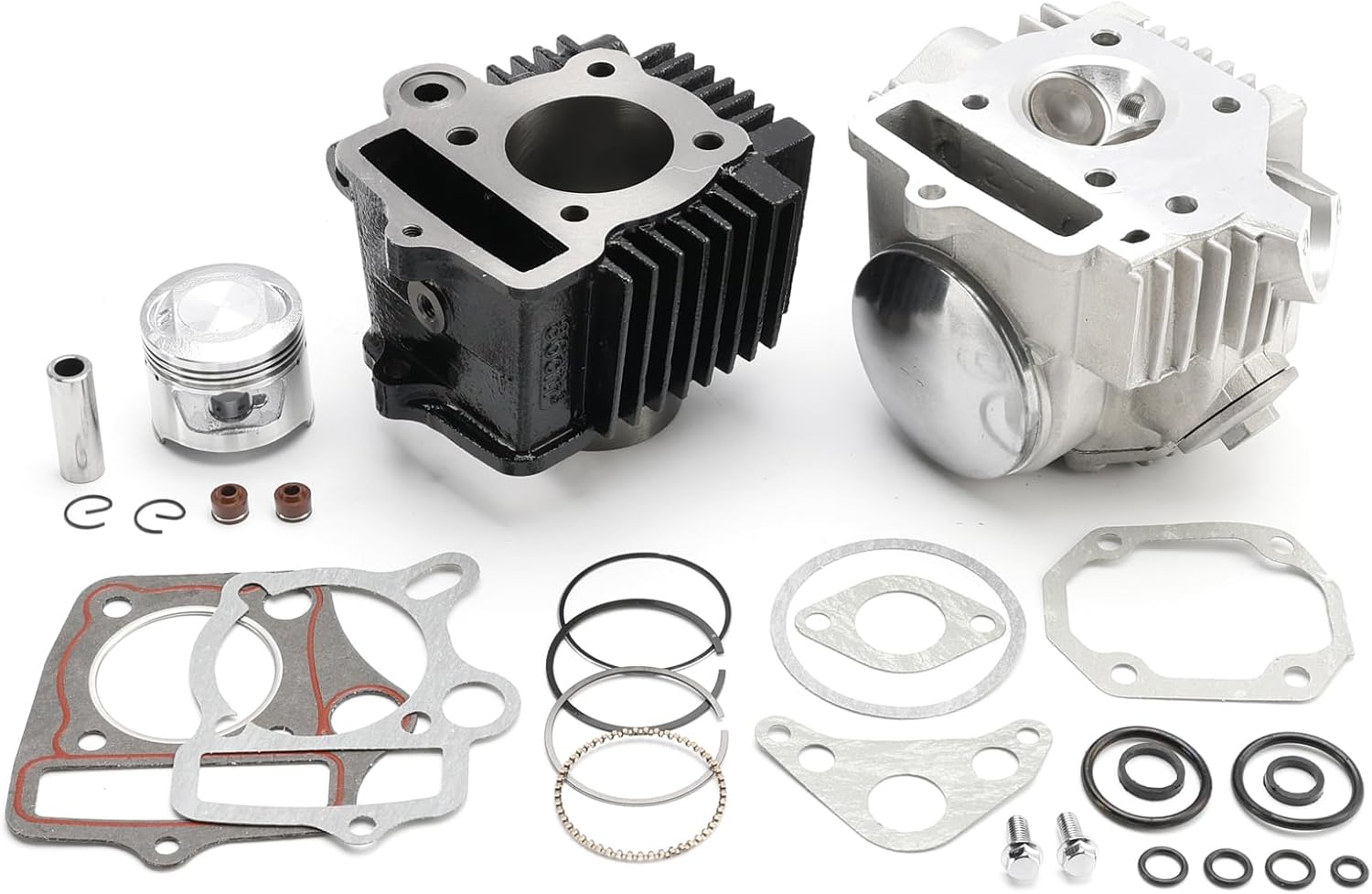

• Kit includes cylinder, cylinder head, piston, rings, pin, clips & top end gasket kit
• Kit is for standard bore size - 47mm, 13mm steel piston pin.
• Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
