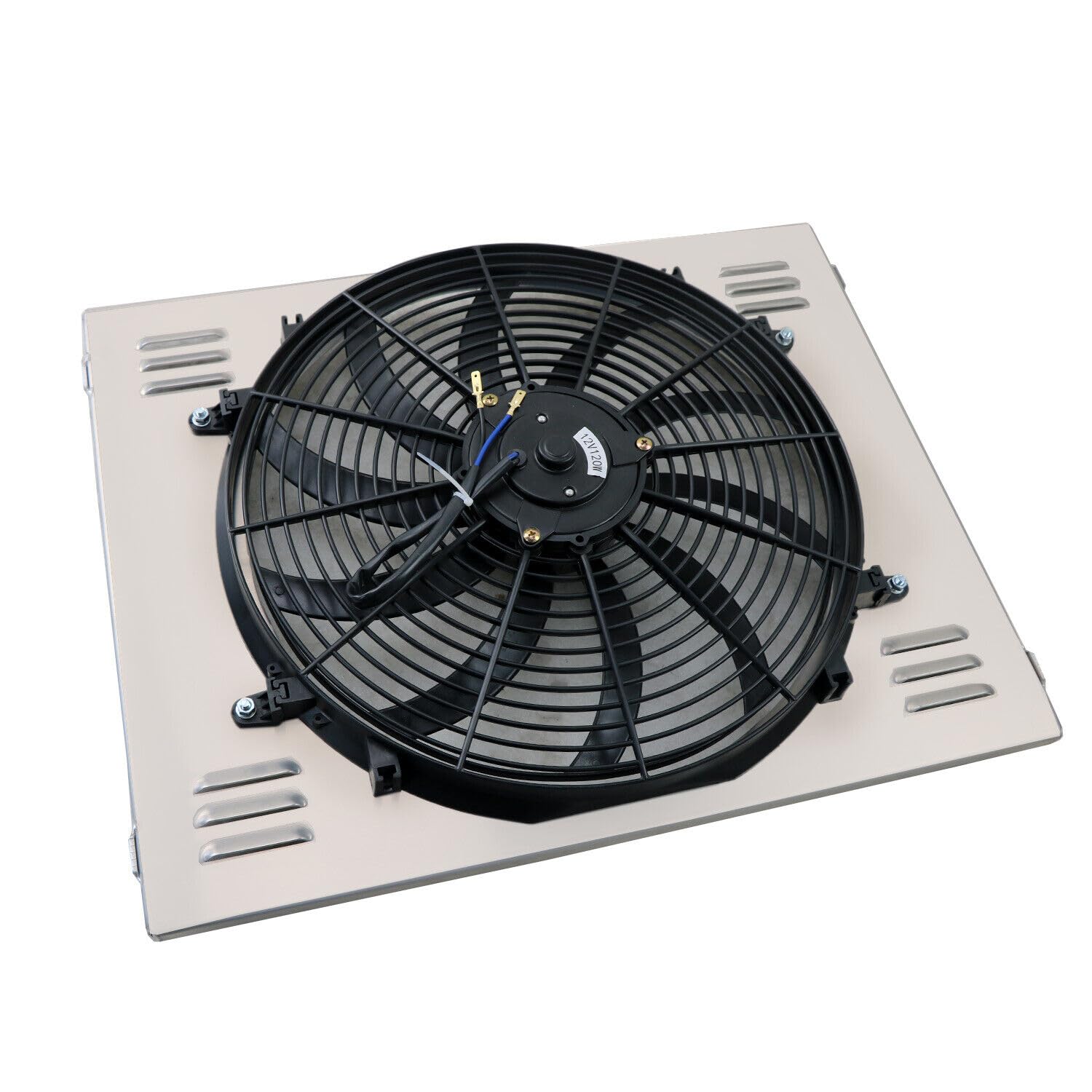

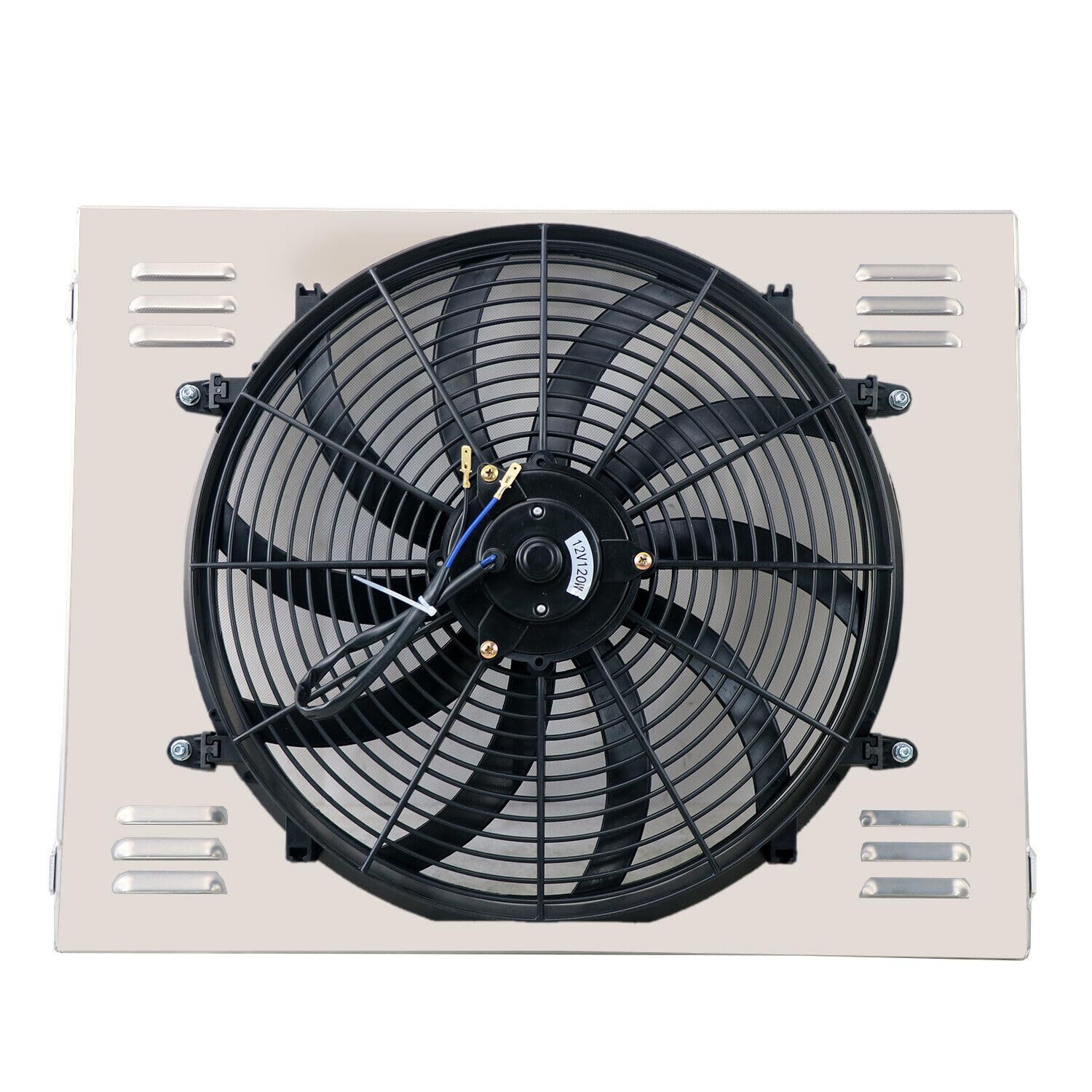

Aluminum Radiator Shroud 16" Fans Relay Kit Compatible with Dodge D/W 100 150 200 300 5.2L 5.9L 1970-1979 78 76

This Listing Is Including: 1 X AA5052 Aluminum Shroud1 X 16" Fans (Includes mounting kits)1 X Thermostat Relay KitR The size of radiator which the shroud fan fits: Core Size: 17.87" Wide x 21.65" Height Fan Specification:Diameter : 16'' (Blade to Blade)Voltage: DC 12 VoltsWattage: 120WNumber of Blades: 10 S-Type bladesMaximum Fan CFM（Cubic Feet per Minute）: 3,000 cfmMaximum Fan RPM（Revolution(s) Per Minute）: 2000±10% Amp Draw: 10amp Thermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.185'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe included.Probe typically threads into radiator, water outlet or manifold.Thermostat Relay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans. This Radiator Fits: Compatible With DODGE D/W SERIES 100 200 300 PICKUP 5.2L 5.9L 1972-1979 Compatible With DODGE B100 B200 B300 VAN 5.2L 5.9L 7.2L V8 1971-1978 Compatible With Dodge Challenger 5.2L 5.6L 5.9L V8 1970-1974 Compatible With Dodge Charger Coronet 5.2L 5.6L V8 1971-1973 Compatible With Dodge Ramcharger 5.2L 5.9L V8 1974-1979 Compatible With Plymouth PB100 PB200 PB300 Van 5.2L 5.9L 6.6L 7.2L V8 1974-1978 Compatible With Plymouth Trailduster 5.2L 5.9L 6.6L 7.2L V8 1974-1979

• 100% Brand new and Full set in box.
• Full Aluminum Shroud and top quality lightweight fan blade made
• Direct Bolt-On Installation, Requires No Modification. & Includes the Mounting Tabs for an Easy Zip Tie Installation.
• Compatible With Dodge D/W 100 150 200 300 5.2L 5.9L 1970-1979
• Details! - Diameter : 16'' (Blade to Blade)；Voltage: DC 12 Volts；Wattage: 120W；Number of Blades: 10 S-Type blades；Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm；Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%；Amp Draw: 10amp.
