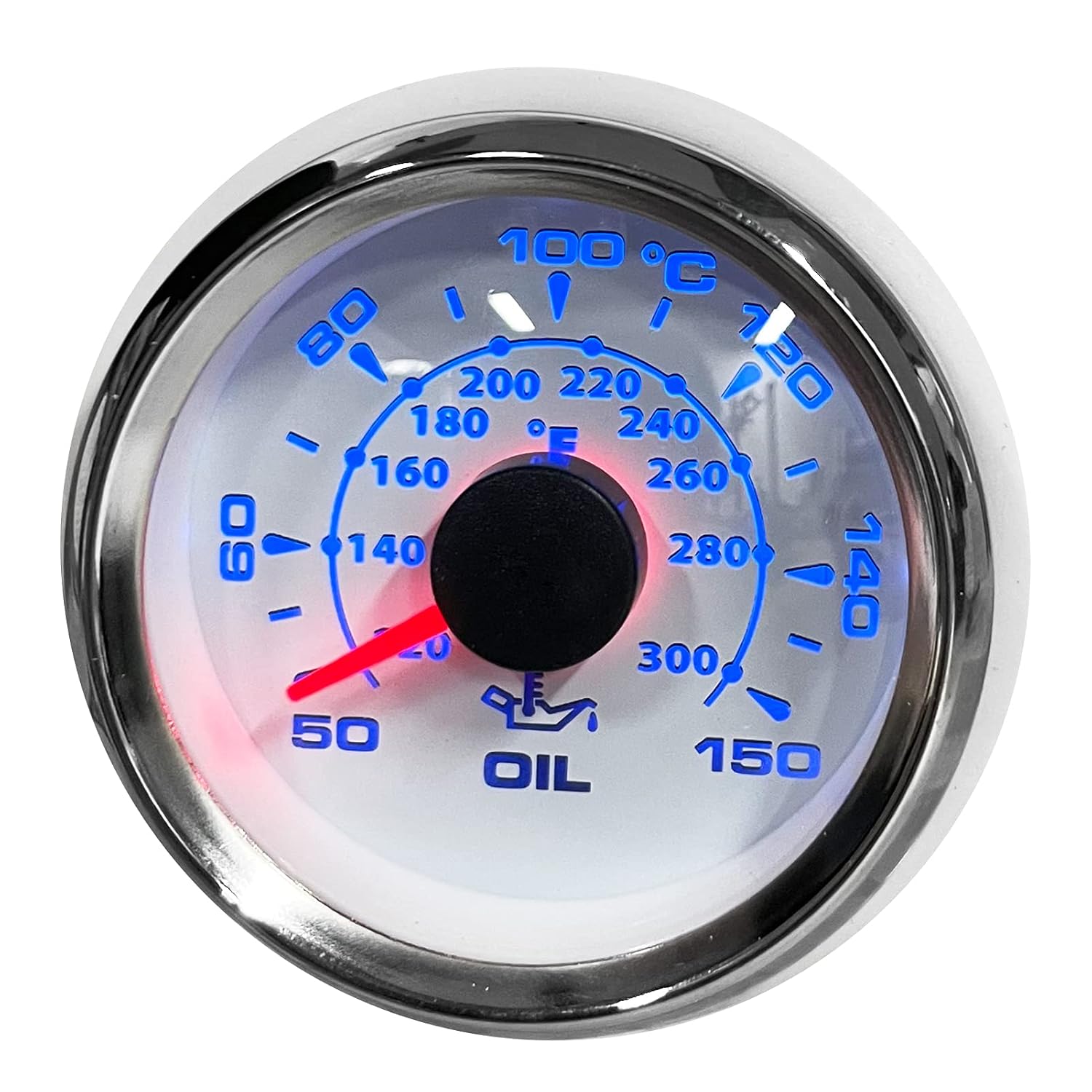

2in Digital Oil Temperature Gauge, 361-19Ohm, 50-150℃, 8 Colors Backlight, IP67 Waterproof - Durable Stainless Steel Bezel, Low Power Stepper Motor, Vehicle and Machinery Use

Item Type: Oil Temperature GaugeMaterial: Stainless Steel 316L Bezel + Anti-Fog GlassColor: White Dial Silver Bezel Functions: Display current Oil TempOperation Mode: Stepper MotorInstallation Diameter: Approx. 52mm/2inWorking Volt: 9-32V(12V/24V)Signal: 361-19ohmRange: 50-150℃Operating Temperature: -30℃-+75℃Storage Temperature: -40℃-+85℃Protection Class: IP67,can work underwater 1m positionBacklight: 8 Colors: red, green, blue, white, yellow, olivine, orange, purple, totally 8 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back ''set'' buttonHow to Use: Fix the meter on the instrument panel and connect the power cordWiring:The red wire is connected to the positive poleThe blue wire is connected to the negative poleThe black wire is connected to the sensorThe orange wire is connected to backlightInstallation Notes:1. Cut a hole 52mm in diameter in the panel (your engine room panel and instrument panel) and insert the meter into the hole corresponding to the panel marked with a and make a small notch in this position to ensure at least 52mm (2in) instrument panel on the back of the instrument.2. After installing the instrument into the panel, screw down with the fixing ring3. Connect the wires, the instrument shell is directly connected to the 12/24V power supply4. Insert the wire harness and fix it firmly on the tablePackage List：1 x Oil Temperature Gauge1 x Power Wire Harness1 x Manual

• [Multi-Color Backlight]: Features 8 different backlight colors that automatically rotate every minute or can be set to your favorite color, enhancing nighttime visibility with vibrant display options.
• [Accurate Temperature Display]: Uses a stepper motor with 361-19ohm signal range to provide precise oil temperature readings from 50-150℃, suitable for various vehicle and engine applications.
• [Robust Construction]: Built with a 316L stainless steel bezel and anti-fog curved glass, making it -, durable, and clear in acidic, , and humid environments.
• [Waterproof and Vibration-]: IP67 rating ensures protection against dust and water immersion up to 1 meter, while secure wiring connections maintain stable operation under strong vibrations.
• [Wide Compatibility]: Designed for installation on automobiles, construction and agricultural machinery, ships, and generator sets, with easy mounting and connection for versatile use.
