14x5.00x6 14x5-6 14/5.00-6 14x5.00-6 Tire Wheel Assembly with Rear Axle Hub 6 Inch 3-Lug 2-Ply Tubeless for ATV Go-Kart Quad Mini Bike Buggy Golf Cart Taotao – Set of 2 with (17T Hubs)

Matched Rear Wheels and Axle Hubs. One Package.Sourcing rear wheels for a go-kart or ATV means matching tire size, rim bolt pattern, and axle hub spline count across separate purchases — and getting any one of those wrong means the assembly won't fit. This complete rear wheel package removes the guesswork. Two pre-mounted 14x5.00-6 tubeless tire and rim assemblies and two splined rear axle hubs — in your choice of 17T or 23T — ship together, dimensioned and matched for direct rear axle installation on standard 6-inch 3-lug configurations.The spline hub selection is the critical fitment decision. 17-tooth and 23-tooth spline counts are the two most common rear axle specifications on go-karts, mini bikes, and small ATVs. Count the splines on your existing rear axle or reference your vehicle's specification before selecting — fitting a 17T hub to a 23T axle or vice versa will prevent installation. Both hub options use the same 3-stud 78mm bolt pattern as the included rims, so the tire-to-hub interface is identical regardless of which spline count you choose.The 14x5.00-6 tubeless tires are 2-ply rated for 308 lbs (140 kg) maximum load per tire at 24 PSI — appropriate rear axle load ratings for go-karts, mini bikes, quad buggies, and light ATVs in recreational and utility use. Operating pressure of 10 PSI provides the right balance of load support and ground contact for typical off-road and mixed-surface rear wheel applications. Tubeless construction eliminates inner tube maintenance and reduces the risk of sudden rear wheel deflation under drive load.The 3-stud iron rims are dimensioned to the standard 6-inch 3-lug specification: 78mm bolt spacing, 54mm center bore, 345mm overall outer diameter, 135mm section width. Both tires arrive pre-mounted — no bead seating equipment needed. Fit the splined hubs to the axle, bolt on the pre-mounted wheels, torque to specification, and the rear axle is ready.This tire size is referenced under multiple equivalent designations: 14x5.00-6, 14/5.00-6, 14x5.00x6, and 14x5x6 are all the same tire size. If your vehicle manual or current tires use any of these size codes, this assembly is the correct dimensional match.Spec Summary: 14x5.00-6 Tubeless | 2-Ply | 308 LBS Max Load Per Tire | 24 PSI Max | 10 PSI Operating | 3-Stud Iron Rim | 78mm Bolt Spacing | 54mm Center Bore | 345mm OD | 135mm Section Width | Rear Axle Hubs: 17T or 23T Spline | 3-Stud 78mm Hub Bolt Pattern | Set of 2 Complete Assemblies

• COMPLETE REAR WHEEL PACKAGE — 2 TIRES, 2 RIMS, 2 REAR AXLE HUBS Package includes 2x 14x5.00-6 pre-mounted tubeless tire and rim assemblies plus 2x rear axle hubs — available in either 17-tooth (17T) or 23-tooth (23T) spline configuration depending on your selection at purchase. Choose the spline count that matches your rear axle specification before ordering. Designed for go-karts, ATVs, quad buggies, mini bikes, and light off-road utility vehicles running standard 6-inch 3-lug rear wheel setups. Verify your rear axle spline count and hub bolt pattern before purchasing to confirm fitment.

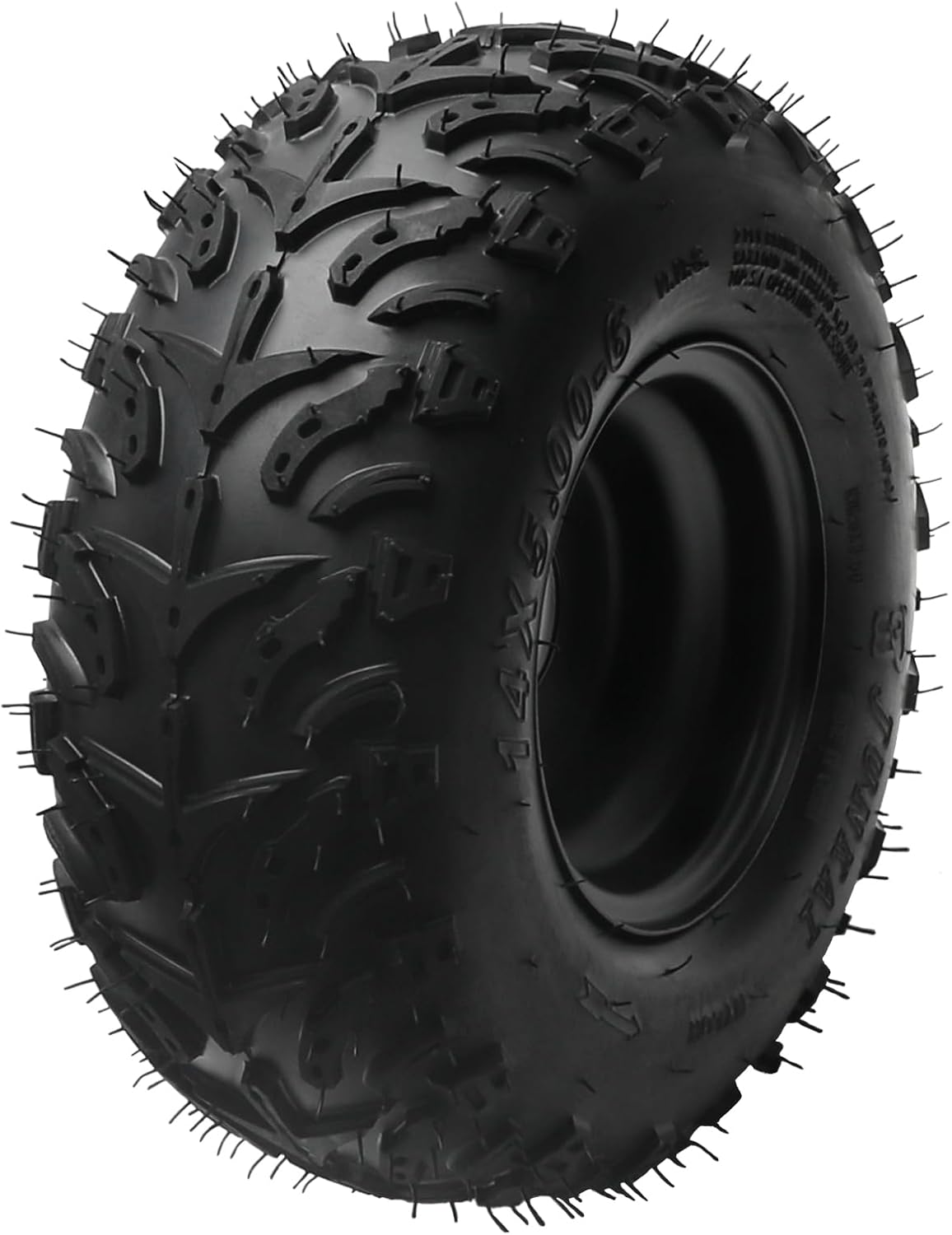

• 2-PLY TUBELESS TIRE — 308 LBS MAX LOAD, MAINTENANCE-FREE Each tire is 2-ply rated tubeless, supporting a maximum load of 140kg (308 lbs) at 170 kPa (24 PSI) cold inflation with a recommended operating pressure of 10 PSI. Tubeless construction eliminates inner tube pinch flat risk and maintains more consistent air pressure over time compared to tubed alternatives. No inner tube required — simpler inflation, more reliable pressure retention, and reduced blowout risk under normal operating loads.
• RIM & HUB DIMENSIONS — CONFIRM BEFORE ORDERING 3-stud iron rim specifications: mounting bolt spacing 78mm (3.07"), center hole diameter 54mm (2.1"), overall wheel outer diameter 345mm (13.6"), tire section width 135mm (5.3"). Rear axle hub spline options: 17T or 23T — select at time of purchase based on your axle spline count. Hub bolt pattern: 3-stud 78mm, matching the included rim directly. Cross-reference your axle spline count and hub bolt spacing against these dimensions before ordering to ensure correct fitment.
• REAR DRIVE TREAD PATTERN — TRACTION ON MIXED TERRAIN Tread design provides reliable grip on packed dirt, gravel, grass, and light mixed-surface conditions typical of go-kart tracks, ATV trails, and utility vehicle applications. Suitable for rear drive wheel positions on both recreational off-road machines and light utility vehicles. Balanced tread blocks support consistent traction under power delivery and predictable handling across varied surface conditions and load weights.
• PRE-MOUNTED TIRES WITH MATCHED REAR HUBS — DIRECT AXLE FITMENT Both tires arrive pre-mounted on their 3-stud iron rims — no tire mounting tools or bead seating required. Slide the rear axle hubs onto your axle splines, bolt the pre-mounted tire and rim assemblies onto the hubs using your existing lug hardware, and rear wheel installation is complete. A matched, ready-to-install rear wheel solution for go-karts, ATVs, mini bikes, quad buggies, and light utility vehicles requiring a 6-inch 3-lug rear wheel configuration with splined axle hub drive.
