LF10-L4H 95-125 PSI Air Compressor Pressure Switch 1/4" Female NPT 4 Port, Material: Plastic, Finish: Black, Air Compressor Four Port Pressure Switch

Our air compressor accessories are developed and manufactured around the three core requirements of stability, efficiency, and convenient maintenance in industrial scenarios. We have a deep understanding of the working characteristics of different compressor models, so each accessory is precisely matched in terms of size, interface, and tolerance control, and can seamlessly integrate with the host to avoid additional losses caused by adaptation issues. In terms of material selection, we focus on the durability of accessories under harsh working conditions - whether facing continuous high pressure, frequent start stop, or temperature and humidity fluctuations, accessories can maintain stable physical and sealing performance, thereby extending the service life of the entire compression system. The design of accessories fully considers the convenience of on-site installation and maintenance. Through structural optimization and modular processing, most accessories support tool simplification or even manual installation, significantly reducing maintenance time and decreasing reliance on professional personnel. At the same time, the precise internal flow channel design reduces unnecessary turbulence and resistance, making the transmission of compressed air smoother. This not only improves the output efficiency of the compressor, but also brings considerable energy savings to users. We deeply understand that reliability is the lifeline of industrial components. Therefore, from raw material storage to finished product delivery, we have established multiple inspection processes to repeatedly verify key performance indicators, ensuring that every product that reaches your hands has excellent quality consistency and long-term stability. Choosing our accessories means choosing an efficient, durable, and worry free reliable partner for your compression system.

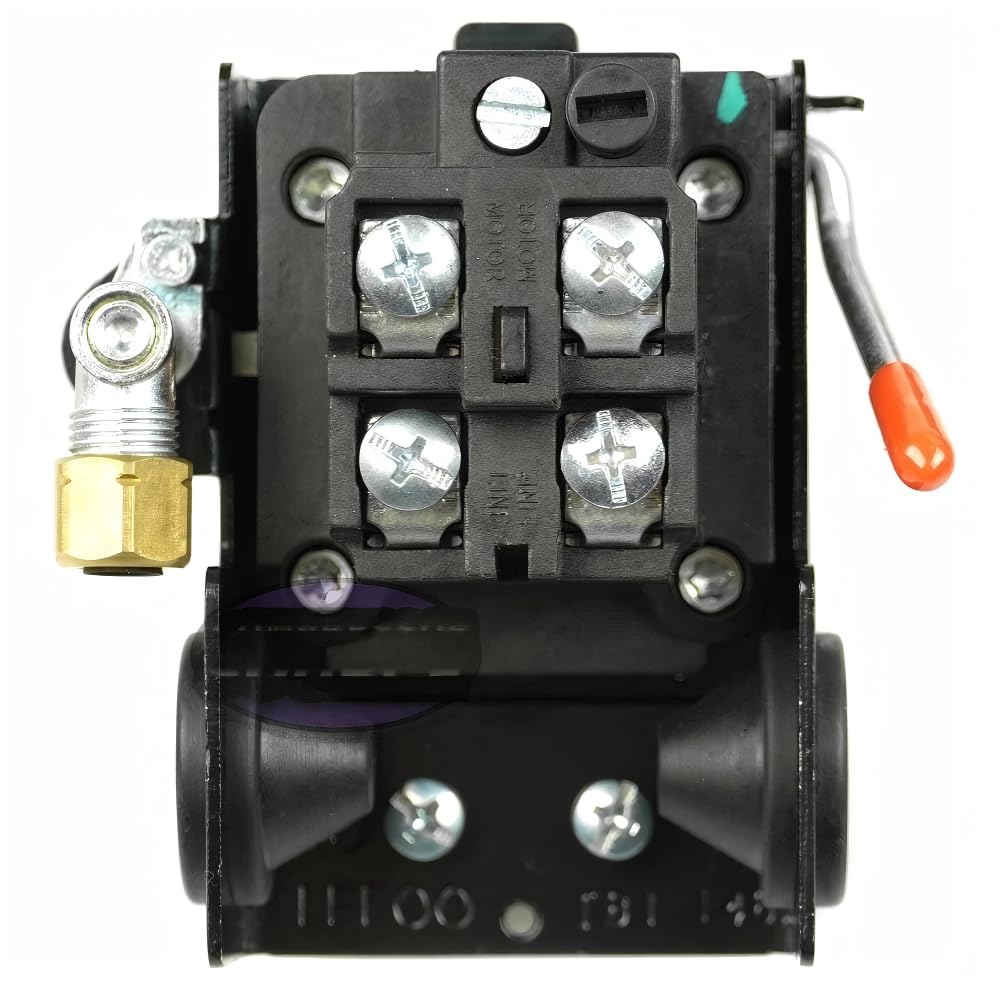

• 95-125 PSI air compressor pressure switch or known as a pressure control valve. This switch has four ports on the bottom, one for air inlet hook up and the other three ports are usually used for a relief valve, gauges, or extra air outlets. These four ports are all 1/4" female NPT. This switch is also equipped with an on and off lever and an elbow style unloader valve on the side, which is 1/4" compression, if the unloader is not needed it does not need to be hooked up. For technical specifications please see below.
• Specifications Air inlets: four 1/4" npt female ports, which can be changed to male using a pipe nipple that can be bought at a local hardware store. Elbow style unloader size: 1/4" compression Equipped with manual on and off lever Pressure setting: turns on at 95 psi and shuts off at 125 psi, can be adjusted for custom setting which is explained under the lid of the pressure switch
• Power and amp rating: 20 amps max at 120 volt, 12 amps max at 240 volt single phase, 9.6 amps max at 240 volt 3 phase. ( if you have a larger industrial compressor with a magnetic starter amps do not matter, all the switch is doing is telling the starter when to shut on and off). 12 volt power dc: 8.6 amps at 32 volts dc, 3.1 amps at 120 volt dc, 1.6 amps at 240 volt dc
• Precise matching and seamless integration: tailor-made for mainstream compressor models on the market, with precise interfaces and stable connections, allowing for quick replacement and integration without the need for modification.
• Durable Material: Made of high-strength and fatigue resistant materials, it can resist high pressure, high humidity, and temperature changes, ensuring long-term reliable operation.
• Structural optimization, easy installation and maintenance: Modular and user-friendly design significantly simplifies installation steps, reduces downtime for maintenance, and improves overall equipment efficiency.
• Flow optimization, energy conservation and efficiency improvement: By optimizing the internal airflow channel design, the system pressure loss is effectively reduced, compression efficiency is improved, and equipment is assisted to work more energy-efficient and smoothly.
• Strict quality control and stable performance: Each product must undergo multiple key function and durability tests before leaving the factory to ensure consistent and reliable quality performance of the delivered product.
