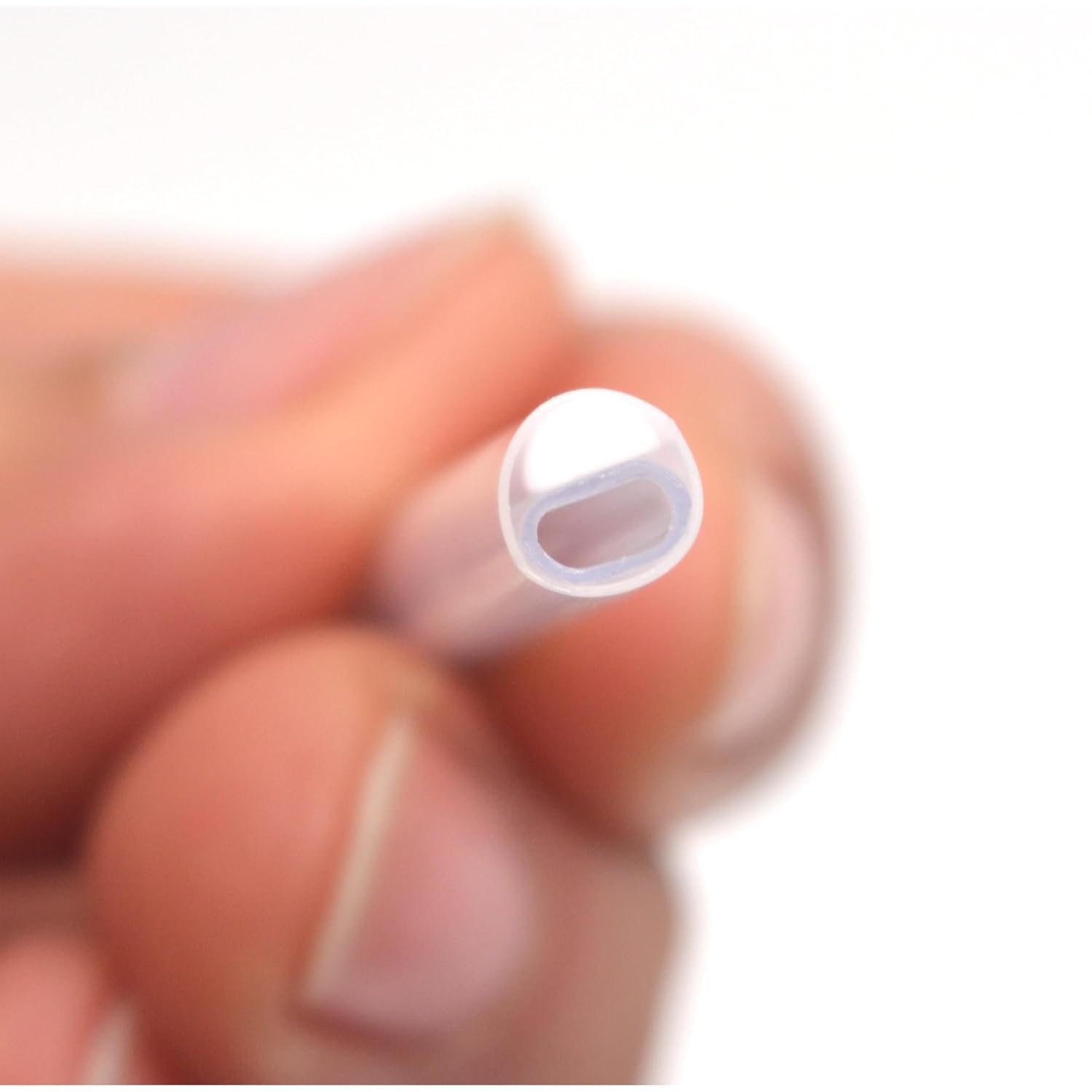

Ribbon Mass Fiber Optic Fusion Splice Protection Sleeves 40mm, Single Ceramic accommodate up 12 fibers -350PCS Come with Box

Product description GT RIBBON series sleeves are applied in bar fiber-optic cables of the RIBBON type. They enable to secure up to twelve fibers in one sleeve. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full protection of the fiber optic splices and quickness of assembly. Initial shrinking of the sleeve was taken into account during the production process to reduce the gap between the tubes. This protects the internal tube and ceramic strengthening element from falling out. The sleeves we produce offer full protections the fiber optic splices. They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions. GT series is characterized by ability to secure up to 12 fibers in one shield and quickness of assembly (120s). The sleeve consists of one D-shaped ceramic strengthening element (dimensions 1.9x3.9mm up to 12 fibers). The standard sleeves are made in clear color. Product properties Pin diameter (D type): 1.9x3.9 (up to 12 fibers)mm ceramic Operating fully recovery temperature:-45 to 100 degree Minimum installation temperature: 120 °C Max installation time: 90 seconds Standard color: Clear Compliant norms: UL224, MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006 RoHS compliant Packing: 50pcs packed to one zip-bag, with a plastic box Package include: 350pcs Ribbon mass fiber splice sleeve

• It is applied in bar fiber-optic cables of the RIBBON type, It can accommodate up to 12 fibers in one sleeve and quickness of assembly (120s). Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces.
• Simple operation, reduce the risk of fiber damage during installation.
• Special design by the cross linking polyolefin melt pipe, and composed of ceramic fiber connection. Protect components, no influence of fiber optical properties.
• They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.
• Packing with an exquisite plastic box, Convenient to storage,50pcs packed to one zip-bag, 350pcs each box
