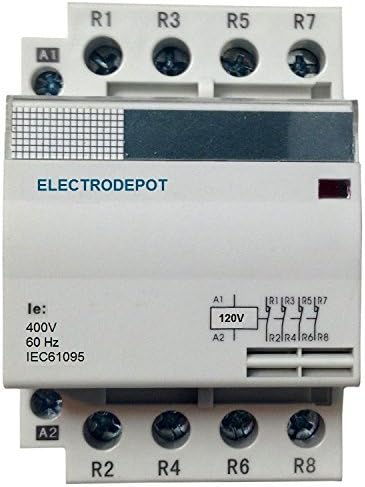

50 Amp 4 Pole Contactor Normally Open (N/O) 120V Coil, 32A Motor, IEC 63A, 60A DIN
4.7 (97 items)
Limited Time Sale$29.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215635397 | Release Date | 2026/04/12 | List Price | $19.60 | Model Number | 215635397 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
4 Pole Electric AC Contactor, 50 Amp 4 Pole Lighting Contactor 120VAC Coil No N/O Contacts, AC Rate: AC-1; 16 kW, AC-3; 11 kW @400V Normally Open Contacts Energy saving low power drain save 120kwh/year. Electrically held lighting contactor. FEATURES DIN rail mounting 60 A. Incandescent or resistive load 40 A. Ballast and General purpose Power ON indicator, Coil: 52VA inrush, 10VA sealed. IEC AC Rate: AC-1; 16 kW, AC-3; 11 kW @400V Operating Temperature -30...+70 °C (-22...+158 °F) Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm, Electric strength: 4 kV Max switching capacity 600 switch/hr No humming coil, low noise CE approved 61095, Weight: 0.88 lb (0.42 kg)
- Normally Open (N.O.) main contacts Power status indicator
- 110/120VAC Coil: 52VA inrush, 10VA sealed

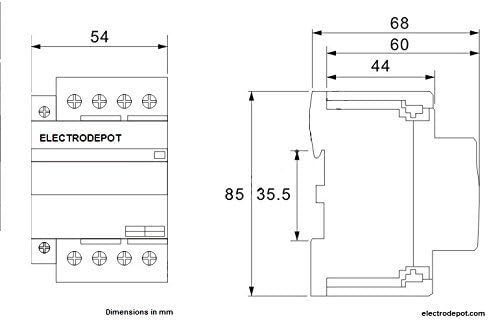

- Mounting Type : 35mm DIN Rail Mount;Overall Size(Approx.) : 60 x 55 x 67mm / 2.4" x 2.2" x 2.7"(L*W*T)
- Rated Current : 50A;Ue : 400V; Number of Poles : 4
- DIN rail included, Compliance: CE, and IEC/EN61095 DIN
| Item Weight | 12.3 ounces |
|---|---|
| Item model number | Controlsupply |
| Batteries required | No |
| Package Dimensions | 8.15 x 5.28 x 3.07 inches |
| Is Discontinued By Manufacturer | No |
Motor Contactors
