4 Pole contactor 120v Coil 100 Amp Normally Open IEC 500V Contactor Switch 110/120VAC Coil Lighting Load 100A, Motor Load 60A, AC Contactor | Includes Aluminum DIN Rail and Phillips Screws
4.7 (120 items)
Limited Time Sale$122.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215635764 | Release Date | 2026/04/12 | List Price | $81.60 | Model Number | 215635764 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Contactor 120v coil – 100Amp 4 Pole Normally Open (NO) AC contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation. Includes DIN rail made of resistant aluminum (35 x 203.20 mm / 1.38 x 8 in) and two (2) 18-8 stainless steel #10 Phillips drive, truss head screws.
- HVAC Parts Applications – Ideal for lighting, motor, or switching tasks. AC-1 for resistance furnaces, incandescent lamps, or electric heaters; and AC-3 for air conditioners, compressors, or fans. Suitable for HVAC contactor applications. Operates at 120/220/277 V. Slim model for easy DIN rail mount.
- Coil Voltage and Amp Load – Voltage: AC 110/120V. Load: 90VA Inrush and 20VA Sealed. Inductive/Motor Load: 60Amp. Resistive/Incandescent Load: 100Amp. AC Load: 30Amp @ 24VDC. Power Lug Terminal Capacity AWG # 2/0. Compatible with 15 Amp, 18 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp, 63 Amp, 80 Amp, 90 Amp and 100 Amp loads.

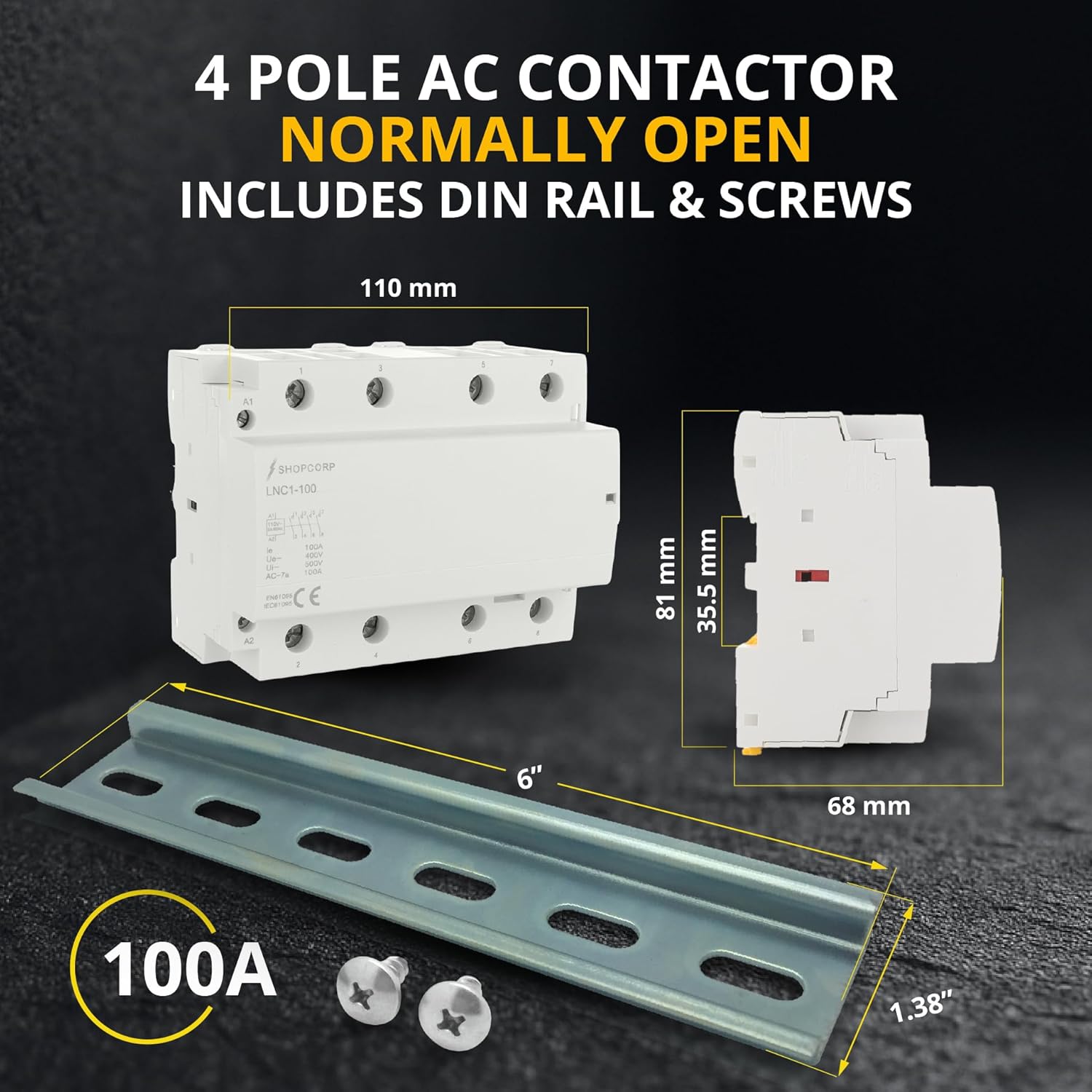

- Contactor AC Dimensions (approx.) – 110 x 81 x 68 mm / 4.3'' x 3.1'' x 2.6'' (Width x Height x Depth). Designed for easy installation on DIN rail mounts.
- About DIN Rail – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 35 mm (1.38 in), length 203.20 mm (8 in), and thickness 5 mm (0.2 in).
| UPC | 850015671838 |
|---|---|
| Color | Multicolored |
| Voltage | 120 Volts |
| Brand Name | SHOPCORP |
| Display Type | LED or LCD |
| Manufacturer | Shopcorp |
| Material Type | Aluminum |
| Included Components | Contactor |
