Electrodepot 30 Amp 3 Pole Contactor, 110-120V Coil, Motor Load 32A, Lighting 40A, 50A Bundle with Slotted Steel Zinc Plated DIN Rail, 35 Millimeters x 6 Inches – 1 Piece with 2 Number 10 Screws
4.6 (47 items)
Limited Time Sale$23.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215635860 | Release Date | 2026/04/12 | List Price | $15.60 | Model Number | 215635860 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

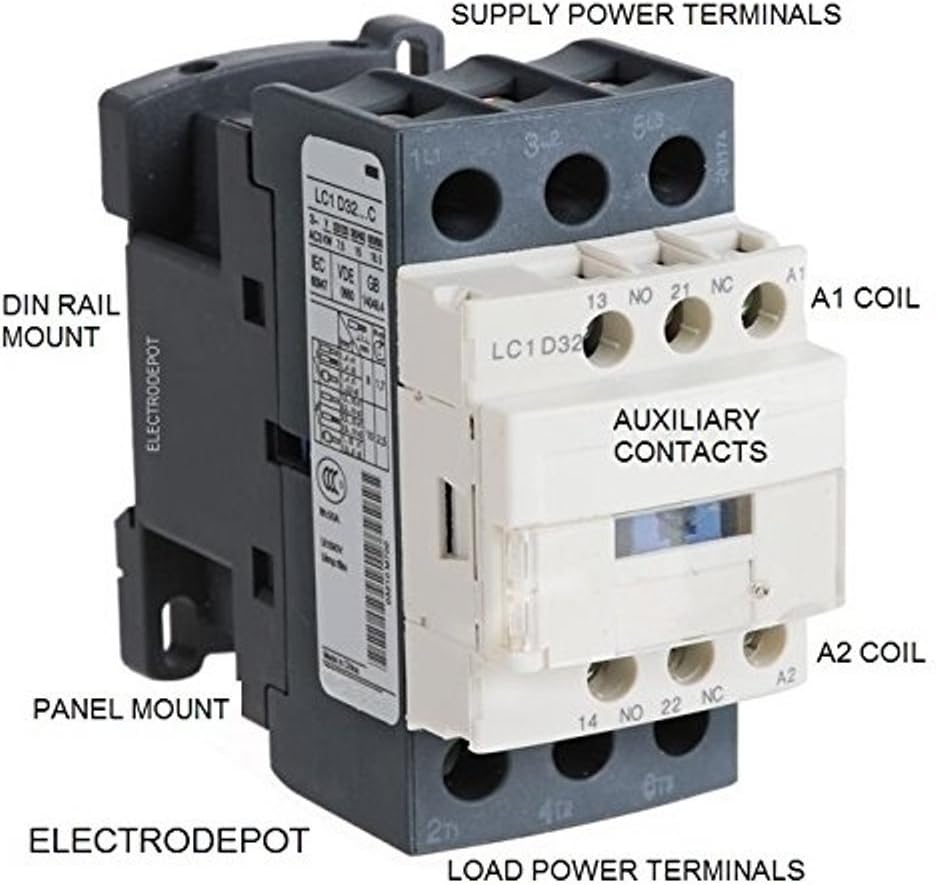

30A 3 Pole contactor for home or industrial uses, with perfectly compatible DIN rail included. The bundle also includes 2 #10 stainless steel trusshead screws (#10, 1/2 inch) so you have everything you’ll need in just one package.About 30A Contactor 30A Contactor 3 Pole 120V coil, 600V Motor load 32A Lighting 40A, 50A 50 Amp. AC-1, 32 Amp. AC-3 Normally Open (N.O.) contacts 50 A. Incandescent, LED or resistive load 32 A. Motor control, 20HP@ 480VAC Auxiliary contact 1NO/1NCAbout DIN RailDIN Rails are the standard mounting support for any electromechanical component, device or equipment designed using the DIN specifications adopted byEuropean (EN) and international (IEC) standards.The rail features conveniently placed slots through out its length making it easy to attach to a panel, wall or equipment. Used for support of mini circuit breakers,contactors, auxiliary relays, terminal blocks, low voltage apparatuses, etc.Standard width of 34.925mm (1.375”) length of 152.40mm (6”) and thickness of 5mm (0.2”).
- BUNDLE CONTENT: The bundle includes one (1) 30A Contactor and one (1) compatible Slotted Steel Zinc Plated DIN Rail with two (2) drive stainless steel truss head screws (#10, 1/2") for immediate installation
- LOAD: Inductive/Motor Load, 32Amp. Incandescent/General purpose Load, 50Amp. Lightning, 40Amp, 50Amp
- COIL RATED VOLTAGE: AC 110V/120V, 50/60Hz
- AUXILIARY CONTACTS: 1 NC (Normally Closed) and 1 NO (Normally Open) incorporated contacts
- CONTACTOR DIMENSIONS (approx.): 85 x 45 x 92 mm / 3.4'' x 1.7'' x 3.6'' (Length x Width x Height)
| UPC | 705595753903 |
|---|---|
| Color | gray |
| Brand Name | Electrodepot |
| Display Type | LED |
| Manufacturer | Electrodepot |
| Material Type | Steel |
| Operating Temperature | 20 Degrees Celsius |
| Item Dimensions L x W x H | 3.35"L x 1.77"W x 3.62"H |
