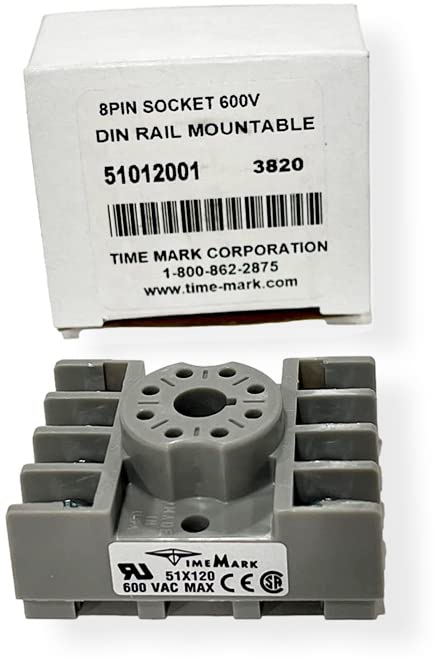

Time Mark 51012001 Model 51X120 8-Pin Socket, 10 Amps at 600VAC Rating, Thermoplastic Body, 6-32 Screws Terminals, Suitable for use with Wire Sizes up to Two 12 AWG, Surface or DIN Rail Mounted
4.3 (128 items)
Limited Time Sale$20.07 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215636262 | Release Date | 2026/04/12 | List Price | $13.38 | Model Number | 215636262 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Time Mark 51012001 Model 51X120 8-Pin Socket, 10 Amps at 600VAC Rating, Thermoplastic Body, 6-32 Screws Terminals, Suitable for use with Wire Sizes up to two 12 AWG, Surface or DIN Rail Mounted Key Features: - Surface or DIN-rail mounted and is suitable for use up to 600 VAC - The thermoplastic body can withstand temperatures up to 300º F continuously without melting or electrical breakdown - Terminals are #6-32 screws, suitable for use with wire sizes up to two #12 AWG - The one-piece molded body does not require a separate insulator strip - UL Recognized, CSA Certified, and CE (European Conformity) Accepted Specifications: - Number of Pins: 8 - Dimensions 3.1 x 2.75 x 1.9 inches - Weight: 0.38 pounds
- Surface or DIN-rail mounted and is suitable for use up to 600 VAC
- The thermoplastic body can withstand temperatures up to 300º F continuously without melting or electrical breakdown
- Terminals are #6-32 screws, suitable for use with wire sizes up to two #12 AWG
- The one piece molded body does not require a separate insulator strip
- UL Recognized, CSA Certified, and CE (European Conformity) Accepted
| UPC | 662917003200 |
|---|---|
| Gauge | 12.0 |
| Model | 51X120 |
| Voltage | 600 Volts |
| Brand Name | Time Mark |
| Part Number | 51012001 |
| Manufacturer | Time Mark Corporation |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount, surface |
| Connector Type | Pin |
| Current Rating | 10 Amps |
| Number Of Poles | 8 |
| Specification Met | CE, CSA, UL |
| Temperature Range | 149 Degrees Celsius |
| Number Of Contacts | 8 |
| Number of Positions | 8 |
| Item Dimensions W x H | 3.1"W x 1.9"H |
| Upper Temperature Rating | 300 Degrees Fahrenheit |
