Lifting Shoulder Eye Bolt 1-1/4"-7 X 3
4.0 (16 items)
Limited Time Sale$26.57 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215648136 | Release Date | 2026/04/12 | List Price | $17.72 | Model Number | 215648136 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

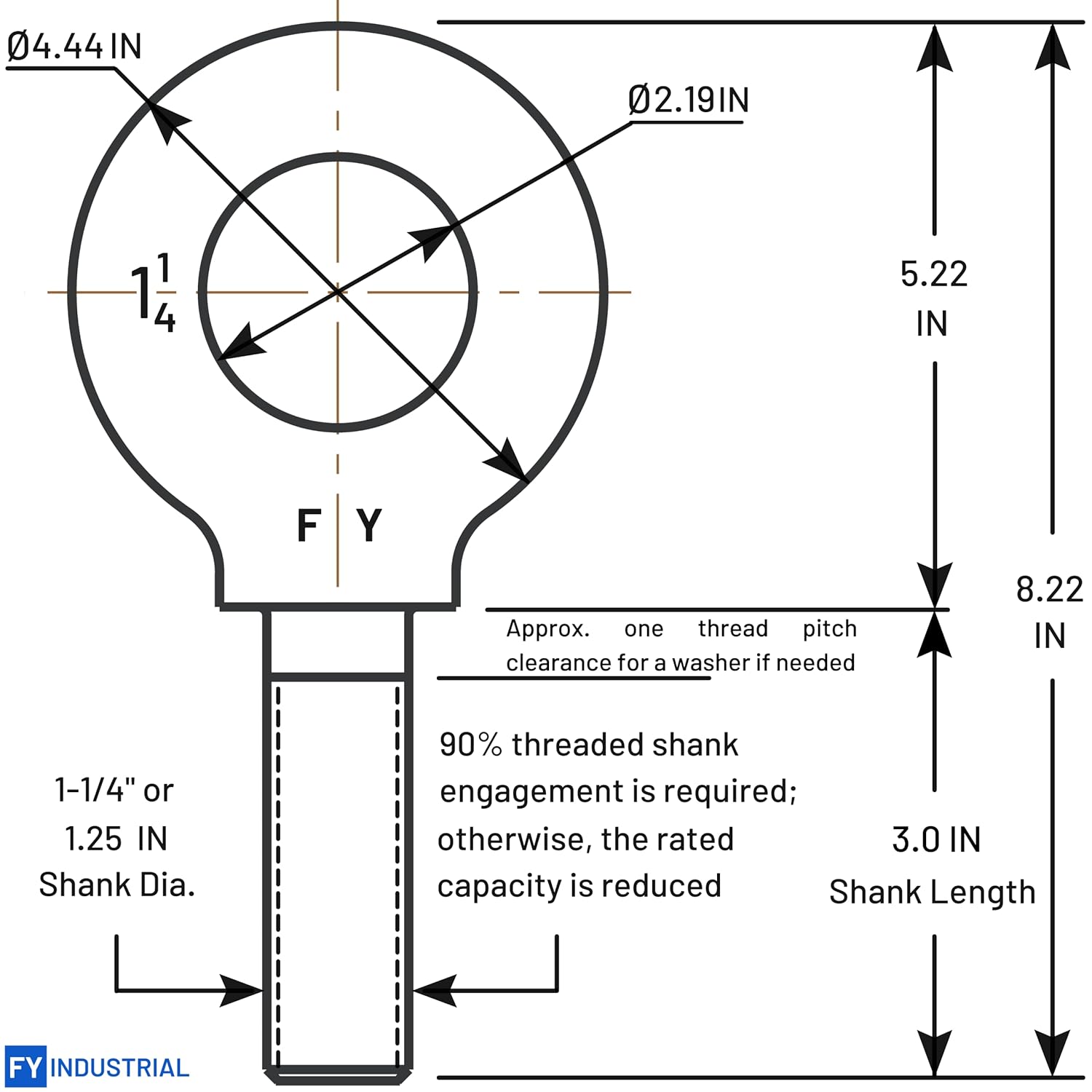

- Industrial Grade Heavy Duty Lifting Eyebolt 1-1/4"-7 X 3"
- Forged, Quenched and Tempered to have higher performance
- Manufactured to ASME B18.15 & B30.26
- ISO 9001 Manufacturer Marking ID: FY
- Material Certified: Carbon Steel 1035
- Tested to ASTM A489 Specifications
- Proof Load/Tensile Strength Lab Test Verified
- Hardness & Microstructure Lab Tests Verified
- WLL (Working Load Limit) or SWL (Safe Working Load): 15,000 lbs
| UPC | 196852637294 |
|---|---|
| Brand | FY |
| Color | Self Colored |
| Model | FY1-1/4"-7 X 3" |
| Head Type | EYE |
| Size Name | 1-1/4"-7 X 3" |
| Metal Type | Carbon Steel |
| Unit Count | 1.0 Count |
| Part Number | FY1-1/4"-7 X 3" |

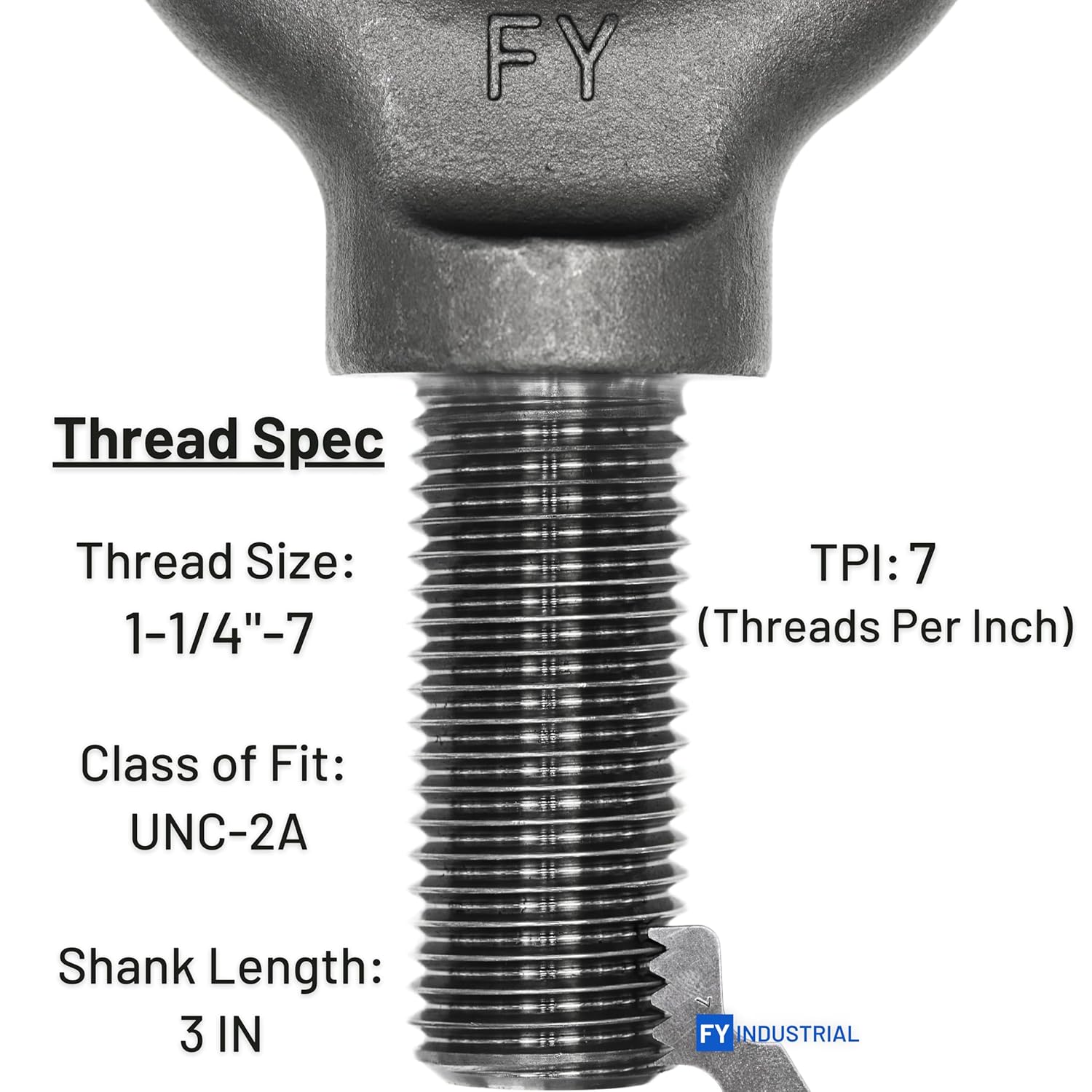

| Thread Size | 1-1/4"-7 |
| Thread Type | Unc-2a |
| Finish Types | Lightly Oiled |
| Grade Rating | 15,000 lbs |
| Manufacturer | FY Industrial |
| Thread Class | 2A |
| Thread Style | Right Hand |
| Fastener Size | 1-1/4"-7 X 3" |
| Fastener Type | Eye Bolt |
| Item Diameter | 1.25 Inches |
| Item Hardness | industrial grade |
| Material Type | Medium Carbon Steel |
| Exterior Finish | Lightly Oiled |
| Item Dimensions | 8.22 x 4.44 x 0.53 inches |
| Thread Coverage | Fully Threaded |
| Screw Head Style | EYE |
| Manufacturer Grade | ISO 9001 |
| Maximum Shear Strength | 50000 psi |
| Compatible Groove Diameter | 1.2 Inches |
