MAXCHEER SSH-Coil Splitting Electric Guitar Pickguard Two Mini Humbucker + ONE 4 Coil Pickup High Output-(9K/9K/18K) Loaded Prewired Scratchplate (White, SSH)
4.9 (54 items)
Limited Time Sale$21.02 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215948962 | Release Date | 2026/04/19 | List Price | $14.01 | Model Number | 215948962 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

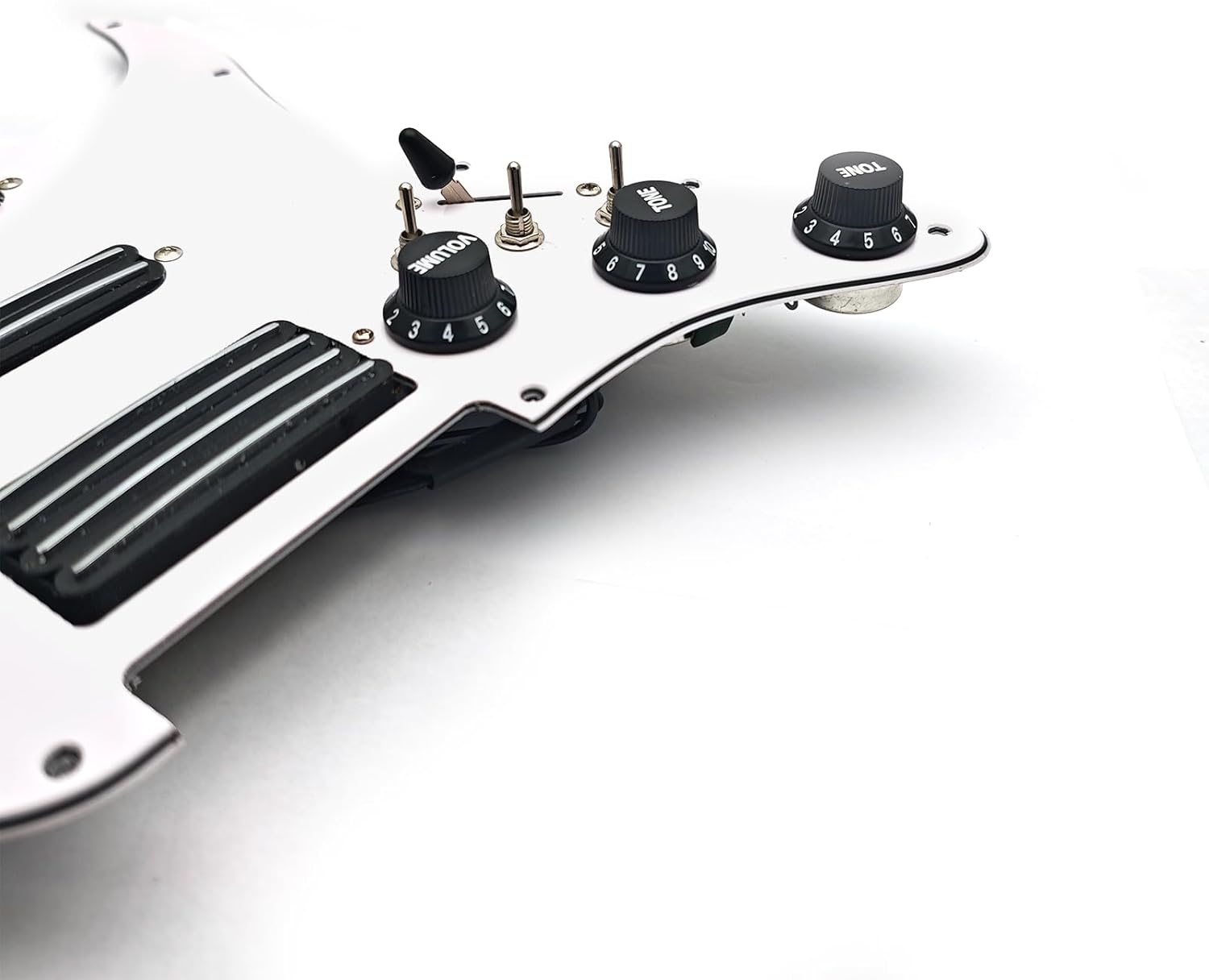

Description:100% Brand new, never usedItem 100% like the picture shownPickguard and Two Mini Humbucker + ONE 4 Coil PickupSwitch is a 5 way switch and the wiring is one volume and two tone controlsWith three 2 way on/on switch, can Coil Split the pickupMagnet: Ceramic. D.C. Resistance: Neck and Middle: 9K (splitting coil 4.5K)Bridge: 18K (splitting coil 9K)Four conductor wires, Black wire is hot, green wire is ground, red and white is for splitting coil11 screw holesAs with any pickguard, some modification may be necessary for exact hole alignment, as there are many different hole patterns.Material: PVC Pickguard and Copper Coil PickupPickguard Colour: 3 ply PVCPackage Include:1 x Guitar Loaded PickguardNote: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
- Pickguard and Two Mini Humbucker + ONE 4 Coil Pickup:Switch is a 5 way switch and the wiring is one volume and two tone controls With three 2 way on/on switch, can Coil Split the pickup
- Magnet: Ceramic.
- D.C. Resistance: Neck and Middle: 9K (splitting coil 4.5K) Bridge: 18K (splitting coil 9K)
- Four conductor wires, Black wire is hot, green wire is ground, red and white is for splitting coil

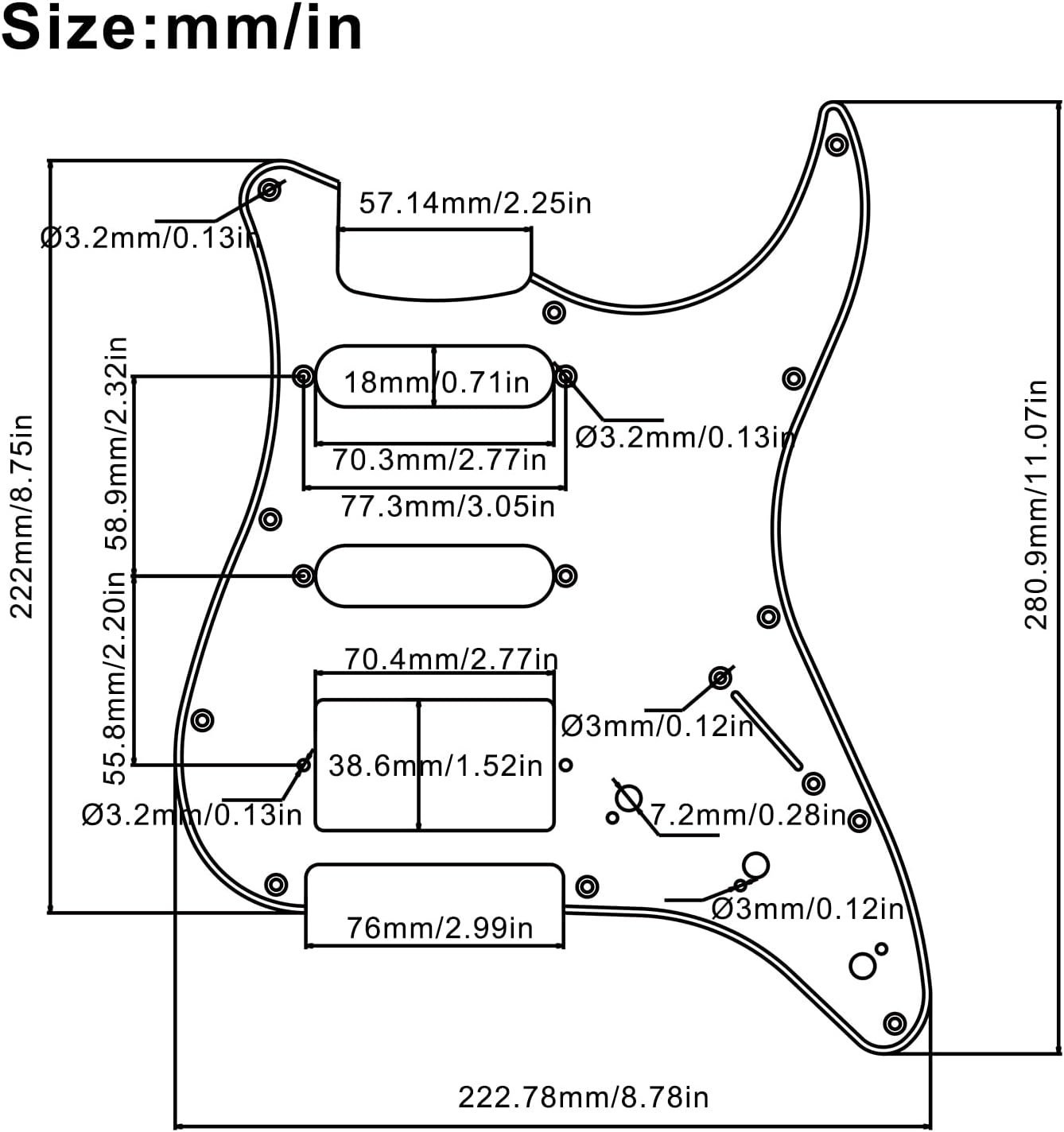

- 11 screw holes As with any pickguard, some modification may be necessary for exact hole alignment, as there are many different hole patterns.
- Material: PVC Pickguard and Copper Coil Pickup
- There are layers thin protective film on the front surface of the pickguard, peel off after installation.
| Size | SSH |
|---|---|
| Color Name | White |
| Item Weight | 6 ounces |
| Body Material | Brass |
| Material Type | Brass |
| Connector Type | String |
| Item model number | FEEF |
| Package Dimensions | 12.44 x 9.72 x 2.13 inches |
