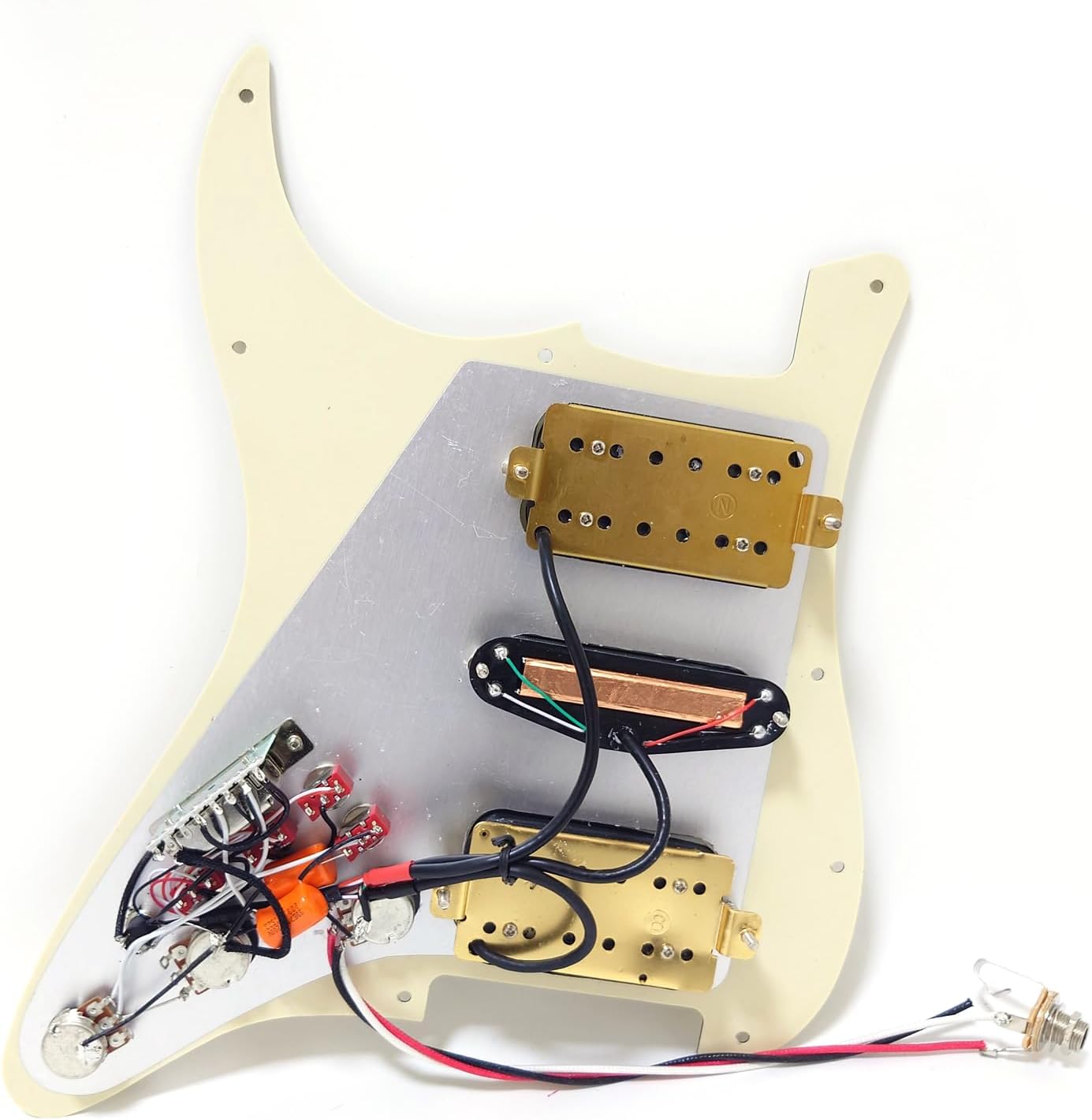

Prewired Loaded Strat Pickguard with Coil Splitting Humbucker Pickups Set for USA/Mexico ST Electric Guitars Replacement Parts (Beige)

Specifications: Material: Metal, plastic, copper, magnets Color: Red Tortoise Resistance: N/M/B: 7.5Kohm/9.18Kohm/ 15Kohm (K resistance is for reference only, which will change as the temperature changes) Hole Distance: N/M/B: 50mm/52mm/52mm Hand:Right-hand Weight: 700g/1.54lb Package include: 1X 3-ply Guitar Pickguard 2X Invader humbucker pickups 1X Mni humbucker pickup 2x Chrome pickup cover mounting ring 1X 5-way switch 1X Kill Switch 3X Potentiometer 1V2T 4X Cut Single Toggle 1X 473K Caps (Made in USA) 1X 333K Caps (Made in USA) 1X Output Jack 11x Screws In addition to the original function,the four single-cut toggle and one enhanced switch bring new functions, as follows: 1.When the 5-speed switch is placed in the first position, the neck pickups work. After pressing the enhanced switch at this time, neck + bridge pickups will work at the same time. 2.When the 5- speed switch is in the second position, the neck + middle pickups work together, pressing the enhanced function switch at this time, neck + middle + bridge pickups will work at the same time. 3.Each pickup has an independent single-cut (Push-Pull) switch. After turning on the single-cut switch, If the sound of single cut is not good, it will be better to use compensation switch. 4. Stainless Steel Kill Switch (a.k.a. Output Mute Switch) button allows you to quickly press the button for a stuttering effect during playing, which stops the sound output of the electric guitar but keeps the electrical signal generated, muting the guitar's sound without the need to adjust the volume knob or pedal.

• Suitable for Fender Strat: Specifically designed for USA/Mexico Fender Stratocaster electric guitars, this prewired loaded pickguard fits seamlessly and enhances your guitar’s tone and performance, making it an ideal replacement or upgrade.
• Coil Splitting Humbuckers: Equipped with two powerful Invader humbucker pickups and a mini humbucker, this pickguard offers coil-splitting functionality, delivering a versatile range of tones from rich, full humbucker sounds to crisp single-coil tones.
• 5-Way Switch and Kill Switch: The 5-way switch allows for classic Strat tone configuration, while the stainless steel Kill Switch (output mute) adds creative stutter effects during play, muting sound output without changing your volume settings.
• Push-Pull Single-Cut Toggles: Each pickup has an independent single-cut push-pull switch. Customize your sound on the fly by engaging or bypassing single-coil modes for each pickup, delivering flexible tone-shaping options.
• Durable and Stylish Design: The pickups feature silver metal edges, providing additional stability to the pickups and enhancing their durability during performance. The 3-ply pickguard is built from high-quality metal, plastic, and copper components, ensuring long-lasting use. pickguard Available in multiple colors like Black, White Pearl, Blue Pearl, and Red Tortoise.
• Custom Wound Pickups: With resistance ratings of N/M/B: 7.5Kohm/9.18Kohm/15Kohm, these humbuckers are designed to produce high output with warmth and clarity. The copper-wound pickups ensure excellent signal flow for better tone quality.
• Premium Components: Includes USA-made 473K and 333K capacitors, chrome pickup cover mounting rings, three potentiometers (1V, 2T), four cut single-toggle switches, and a sturdy output jack, ensuring high-quality signal transmission.
• Easy Installation: This prewired set is designed for easy drop-in installation, and it comes with 11 screws and all necessary hardware. Simply remove the protective film before installing for a scratch-free finish.
• Complete Package: Weighing 700g (1.54lb), this set includes everything you need for a comprehensive upgrade: 1x 3-ply guitar pickguard, 2x Invader humbucker pickups, 1x mini humbucker, 1x 5-way switch, 1x kill switch, potentiometers, and mounting screws.
