SAPHUE SSH-Coil Splitting Electric Guitar Pickguard Two Mini Humbucker + ONE Humbucker(9K/9K/15K)+Silence Switch Loaded Prewired Scratchplate (Tortoise Shell)

Description:100% Brand new, never usedItem 100% like the picture shownPickguard and Two Mini Humbucker + one HumbuckerSwitch is a 5 way switch and the wiring is one volume and two tone controlsWith three 2 way on/on switch, can Coil Split the pickupWith Silence SwitchMagnet: Ceramic.D.C. Resistance:Neck and Middle: 9K (splitting coil 4.5K)Bridge: 15K (splitting coil 7.5K)Four conductor wires,Black wire is hot, green wire is ground, red and white is for splitting coil11 screw holesAs with any pickguard, some modification may be necessary for exact hole alignment, as there are many different hole patterns.Material: PVC Pickguard and Copper Coil PickupPickguard Colour: 3 ply PVC, white or Black, please select the one you needPackage Include:1 x Guitar Loaded PickguardNote: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

• [Pickup Sound]:modern tone, full, powerful sound and hum bucker, great for playing rock and funk, make your guitar more versatile.

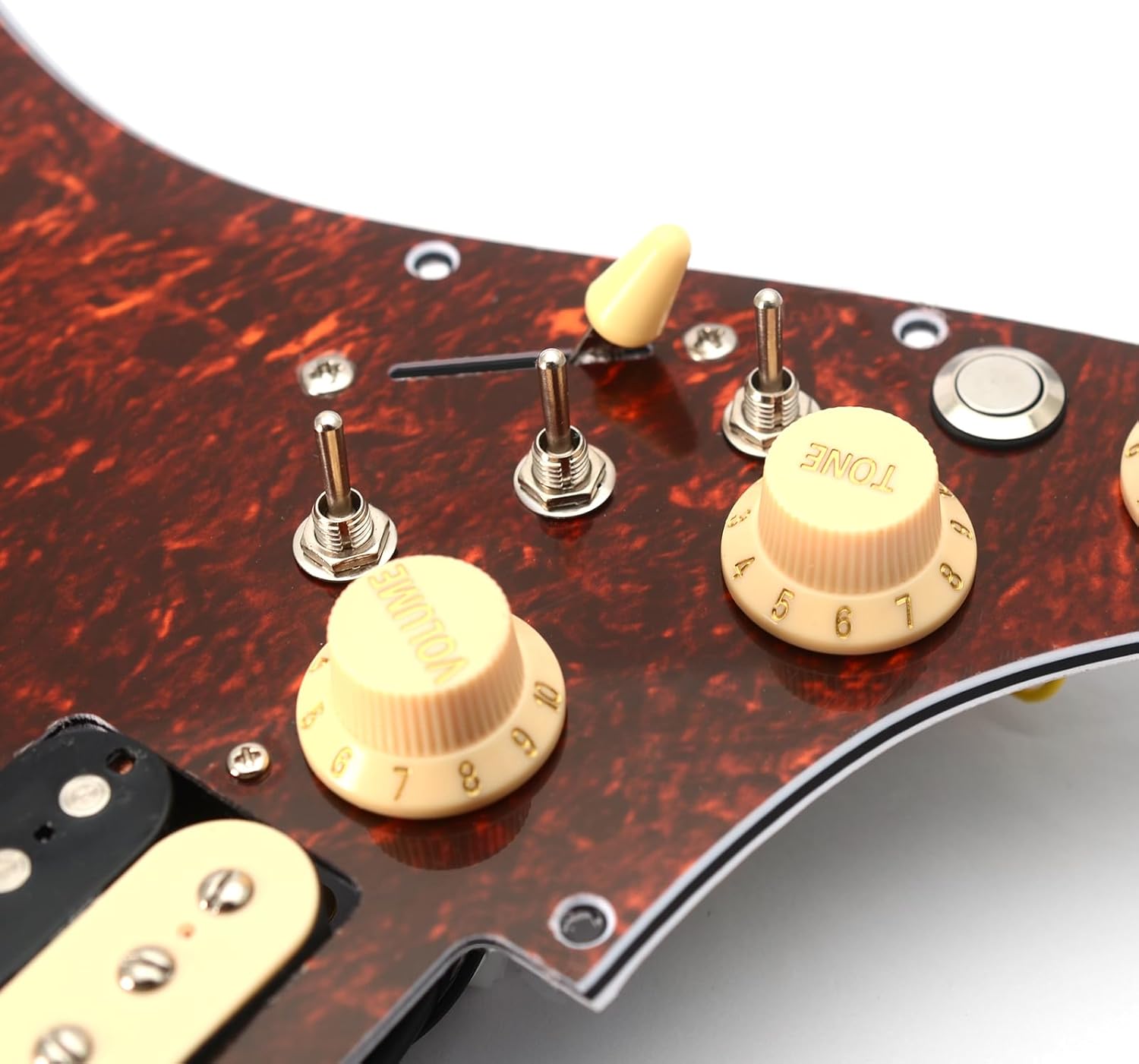

• [Multi switch design]:Single cut Switch,On/Off Switch and total 5way Design,Make the performance more diverse
• [Package Includes]: 2 small dual coil pickups and one Humbucker,2 tone & 1 volume knob, 5-way pickup switch & 1x Guitar Backplate & Included mounting screws.
• [Four conductor wires]:Black wire is hot, green wire is ground, red and white is for splitting coil

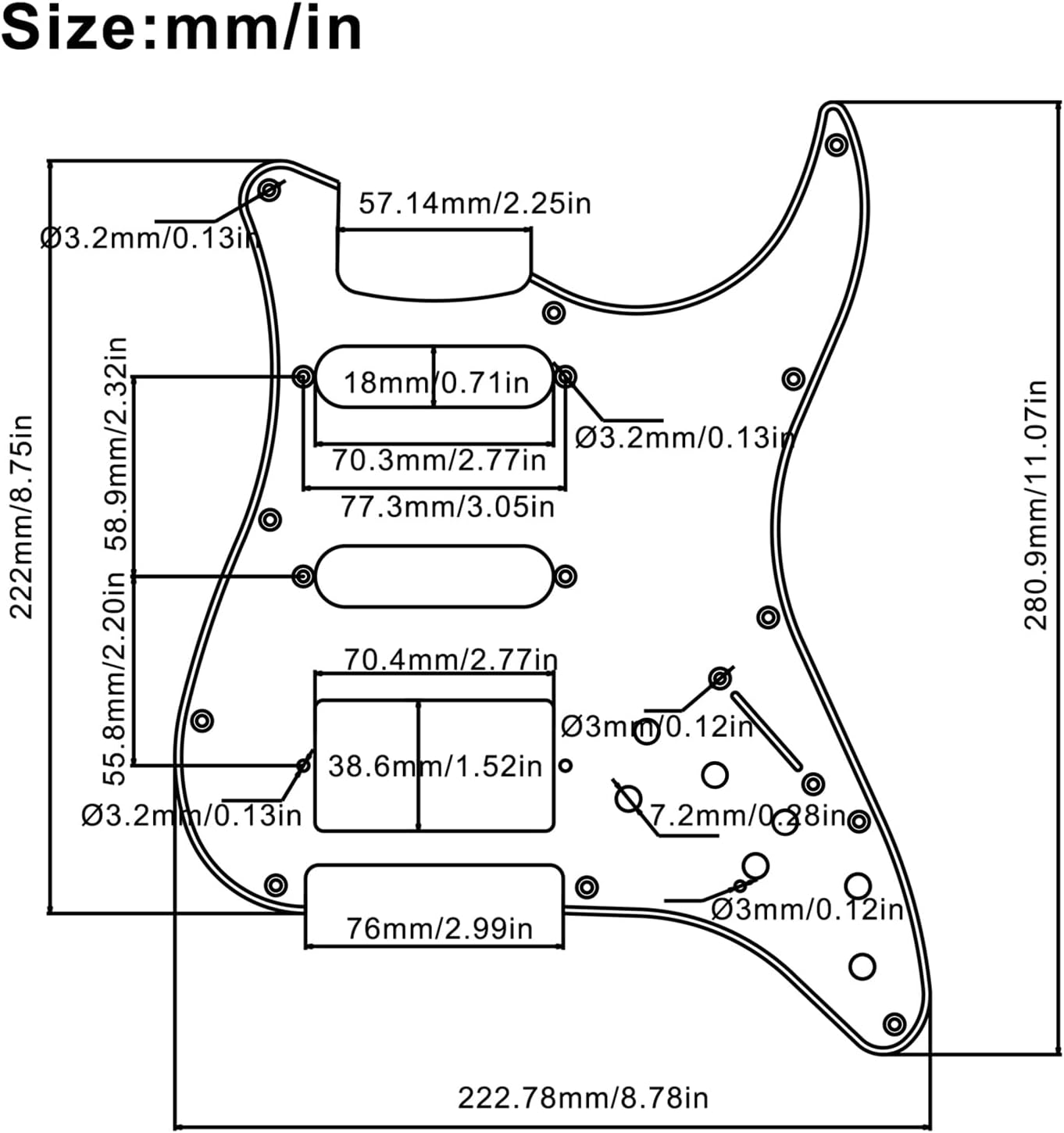

• [Note]: As with any pickguard, some modification may be necessary for exact hole alignment, as there are many different hole patterns.
• With aluminum shielding foil on the back, Double layers protect filmed on the top,2 layers of protective film can be removed
• Package Include:1 x Guitar Loaded Pickguard
• There are 2 layers thin protective film on the front surface of the pickguard, peel off after installation.
