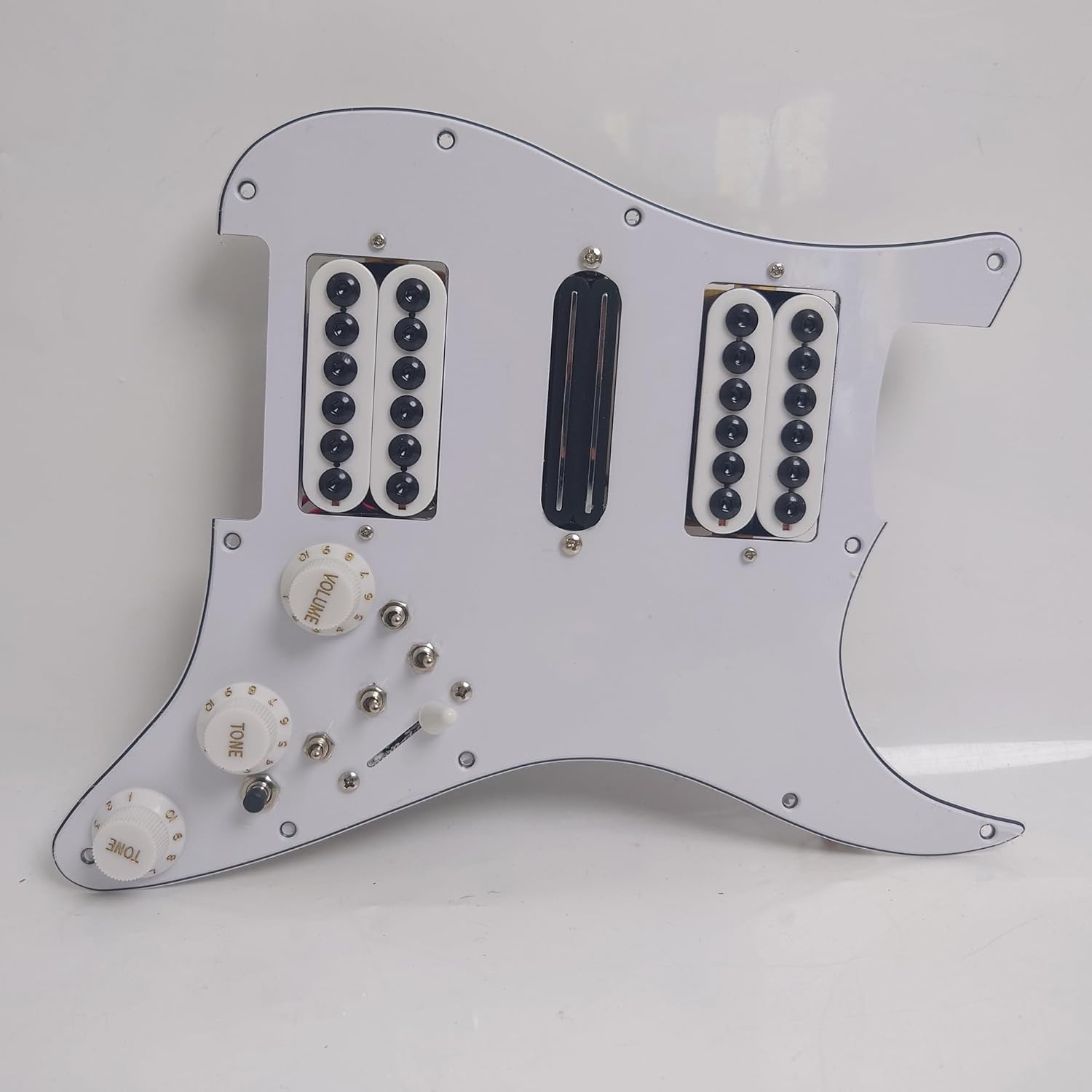

Prewired Guitar St Pickguard Loaded Coil Splitting HSH Humbucker Pickups Set for USA/Mexico Stratorcast Electric Guitars Replacement Parts (White)

The surface of the product is covered with a film to prevent scratches and damage. Please remove the film before installing the product on the guitar. Specifications: Material: Metal, plastic, copper, magnets Resistance: N/M/B: 7.5Kohm/9.18Kohm/ 15Kohm (K resistance is for reference only, which will change as the temperature changes) Hole Distance: N/M/B: 50mm/52mm/52mm Hand:Right-hand Weight: 700g/1.54lb Package include: 1X 3-ply Guitar Pickguard 2X Invader humbucker pickups 1X Mni humbucker pickup 2x Chrome pickup cover mounting ring 1X 5-way switch 1 x Enhanced switch 3X Potentiometer 1V2T 4X Cut Single Toggle 1X 473K Caps (Made in USA) 1X 333K Caps (Made in USA) 1X Output Jack 11x Screws In addition to the original function,the four single-cut toggle and one enhanced switch bring new functions, as follows: 1.When the 5-speed switch is placed in the first position, the neck pickups work. After pressing the enhanced switch at this time, neck + bridge pickups will work at the same time. 2.When the 5- speed switch is in the second position, the neck + middle pickups work together, pressing the enhanced function switch at this time, neck + middle + bridge pickups will work at the same time. 3.Each pickup has an independent single-cut (Push-Pull) switch. After turning on the single-cut switch, If the sound of single cut is not good, it will be better to use compensation switch.

• Complete HSH Prewired Pickguard Set for Stratocaster – This prewired loaded pickguard is designed as a direct replacement for Fender USA and Mexico Stratocaster guitars. With HSH humbucker configuration, it delivers versatile tones for any musical style and is quick to install.
• High-Performance Invader Humbucker Pickups – Equipped with two Invader humbucker pickups in the neck and bridge positions, with DC resistance of 7.5K ohms (neck) and 15K ohms (bridge), for powerful, full-bodied sound with excellent output.
• Mini Humbucker Middle Pickup for Added Versatility – The middle position features a mini humbucker pickup with a resistance of 9.18K ohms, which blends warm tones with high clarity, complementing the Invader pickups for a unique tonal balance.
• Coil Splitting with 4 Independent Toggle Switches – This set includes 4 independent single-cut toggle switches for each pickup, allowing coil splitting to achieve single-coil tones, adding dynamic range to the Strat's sound profile for maximum flexibility.
• Enhanced Switch for Expanded Pickup Combinations – The enhanced switch unlocks extra pickup combinations, such as activating neck + bridge in the first position or all three pickups in the second position, for a fuller, richer sound.
• 5-Way Selector Switch for Classic Strat Tones – The standard 5-way switch enables easy selection among five popular pickup combinations, providing a versatile selection of tones from smooth rhythm to searing leads.
• High-Quality 473K and 333K Capacitors – Includes USA-made 473K and 333K capacitors, enhancing tone quality and ensuring smooth, precise tonal transitions, especially when using high-gain settings.
• 3-Ply Pickguard with Scratch-Resistant Film – Featuring a 3-ply pickguard with a protective film to prevent scratches, this pickguard not only looks sleek but also offers durability and scratch protection, maintaining its quality over time.
