Pressure Switch 1/8" mpt 25 Amp Hot Tub Spa Part Fits High Current How to Video
4.6 (97 items)
Limited Time Sale$29.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216046935 | Release Date | 2026/04/19 | List Price | $20.00 | Model Number | 216046935 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

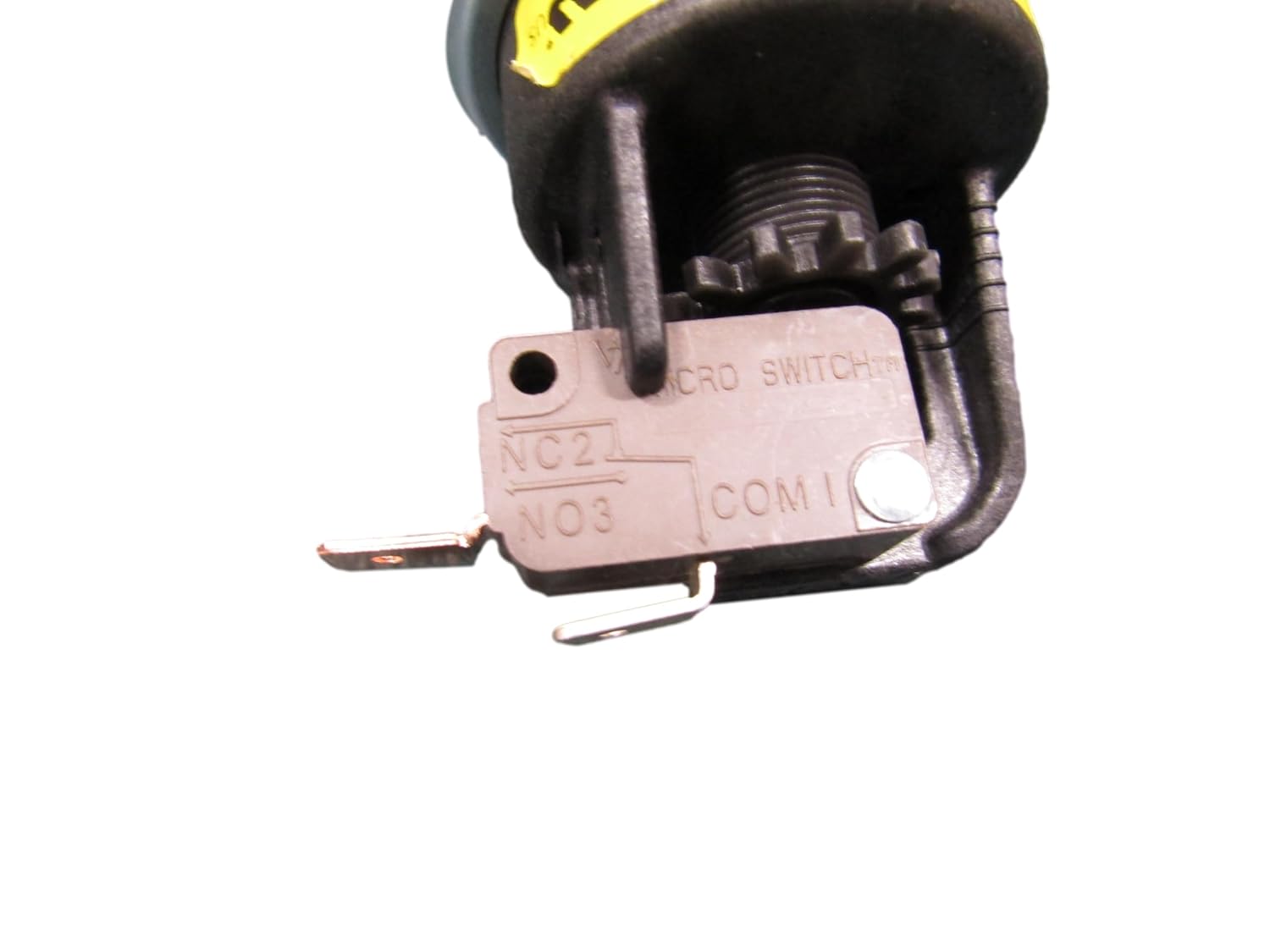

This part is a 25Amp Pressure Switch that features 1/8th" MPT Standard Threads and 2 Spade connectors for attaching the 2 wire connections. Watch the Video for How To Information on Pressure Switches. This Switch will fit Balboa, Gecko, ACC, Hydroquip, Len Gordon, Maddux and most other standard Hot Tub Heater Tubes but the 25Amp feature is rarely found. The 25Amp switch would normally be found in a 115V Plugged in stsyle where the hot wire for the Heater runs through the switch. Most Air Button Pressure Switches only have a relay turn on wire going through the Pressure Switch that draws less than 1 Amp. What goes wrong with these switches is either the Switch does not close when the pump comes on and puts pressure on the switch or it doesn't open when the pump goes off. If either of these things happens you will have a No Heat or Overheat Situation on most systems. The are other things that will cause a flo code like an inoperative pump or a stopped up filter so be sure the switch is bad before replacing. The Pressure Switch in this auction will work in any application including a 25 Amp or a 1 Amp system where a 1 Amp will on work in a 1 Amp system.that application. Note: See our You Tube Video called "Pressure Switch Flow Code No Heat Spa Hot Tub How To The Spa Guy" for more information... WARNING: DO NOT ADJUST THIS SWITCH IT WILL VOID THE WARRANTY!! CONTACT ME AND I WILL HELP YOU FIGURE OUT WHATS WRONG. IF YOU HAVE TO ADJUST THIS SWITCH MOST LIKELY THERE IS SOMETHING ELSE WRONG AND ADJUSTING THE SWITCH WILL NOT SOLVE IT LONG TERM!!
- 20-25 Amp Universal Pressure Switch fits Most Applications
- Factory Preset Pressure Adjustment
- Threads measure about 3/8" wide but are called 1/8" MPT
- See our You Tube Video called "Pressure Switch Flow Code No Heat Spa Hot Tub How To The Spa Guy"
- Standard Normally Open Style with 2 Tabs
| UPC | 740016014058 |
|---|---|
| Color | Black |
| Model | ASP800120-3/HTP47-439-1250 |
| Wattage | 2875 watts |
| Terminal | Spade |
| Brand Name | American Spa Parts |
| Unit Count | 1.0 Count |
| Switch Type | Normally Open |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | American Spa Parts |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Spade |
| Control Method | App |
| Current Rating | 25 Amps |
| Operation Mode | automatic |
| Operating Voltage | 115 Volts |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
