PROCET Gigabit PoE Injector 95W SFP Uplink PoE++ Power Injector DIN Rail, 6KV Surge Protection, -40°F to 149°F for UniFi/Sisco Wireless AP, PTZ AI Camera, Smart Factory, Micro Wave Radio
4.4 (94 items)
Limited Time Sale$45.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216138152 | Release Date | 2026/04/19 | List Price | $30.00 | Model Number | 216138152 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

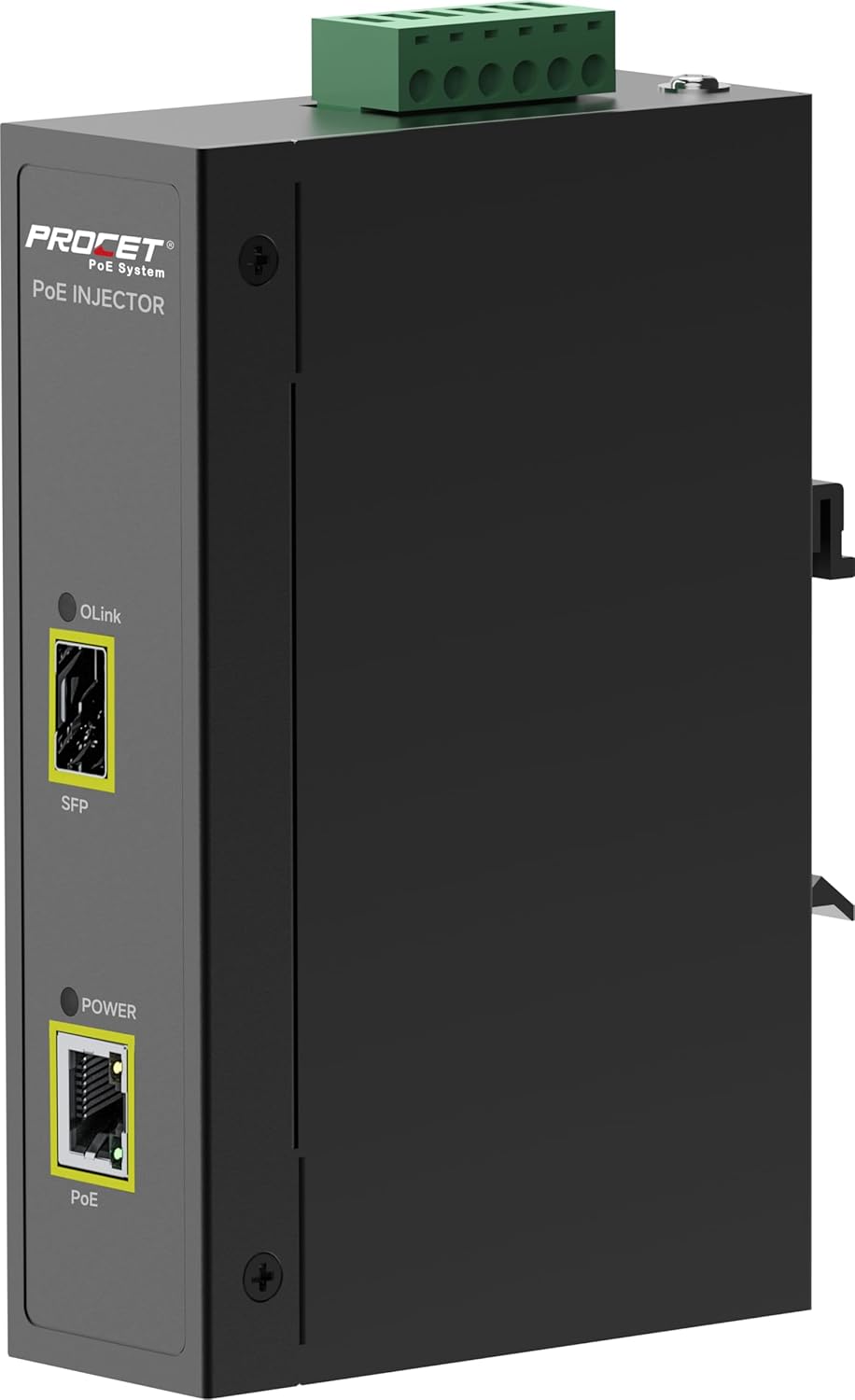

PT-PSE105GBLS-E is an industrial-rated media converter with PoE functionality that can be used as a PoE Injector offers a unique solution to powering long-range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications. Designed for PoE++ powered 95W PoE Powered Devices(PDs), such as IP Cameras, wireless APs,Microwave radio, loT application, door locks, displays, POS, and information kiosks SFP fiber Optical Slot supports 1000Base-FX.Fully comply with PoE++ and remains compatible with any IEEE802.3bt/at/af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.Enclosed in an IP40 high-impact metal case with DIN-Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. Itworks with a wide input vottage of 12-55V DC makes it possible for solar application and operates from -104°F to +149°F, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.Industrial Fiber PoE can be outdoor use by covered with waterproof caseWide Working temperature from -40℉ to 149℉Lighting Protection at PoE portSFP fiber Optical Slot, 1000Base-FX to 10/100/1000Base-TX, support single-mode or multi-mode transceiversRJ45 Port: 10/100/1000Mbps(Gigabit), supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossoverIP40 high-impact metal enclosureDC Input Voltage: 12 to 55 VdcDC Input Current: 10.0A Weight: 485g（1.1lb）
- 【Input】Wide voltage of 12 to 55 Volts DC input and solar powered input support due to built-in voltage boosting.
- 【Output】Gigabit 10/100/1000Mbps; DC 55V 95W PoE++ power supply.
- 【SFP Port and OLink】SFP uplink. Through the SFP port, the device can be connected to a core switch or router to achieve high-bandwidth and long-distance uplink connections. Combined with PoE, it can provide network and power supply for remote devices.
- 【Transfer Distance】Decided on your SFP type, single-mode transceivers can make it up to 20-50 Miles, the effective PoE port transfer distance is 328ft over Cat5e/Cat6 cable, Max. 1640FT by connecting 4 PoE Extenders.
- 【Wide Working Temperature】Metal constructive, working temperature from -40°F to 149°F.
- Model: PT-PSE105GBLS-E
| UPC | 617308623574 |
|---|---|
| Brand | PROCET PoE System |
| Finish | Copper |
| Unit Count | 1.0 Count |
| Item Weight | 0.68 Kilograms |
| Manufacturer | Beijing Creative Lianjie Network Technology Co.,Ltd |
| Model Number | PT-PSE105GBLS-EUS |
| BuiltIn Media | DIN RAIL |
| Input Voltage | 55 Volts |
| Nominal Power | 95 Watts |
| Connector Type | RJ45 |
| Current Rating | 10000 Milliamps |
| Item Type Name | PT-PSE105GBLS-E |
| Item Dimensions | 5.7 x 3.7 x 1.4 inches |
| Number of Items | 1 |
| Number of Ports | 1 |
| Power Plug Type | No Plug |
| Package Quantity | 1 |
| Compatible Devices | Cameras |
| Warranty Description | 2 |
| Specific Uses For Product | Amplifier, Antenna |
