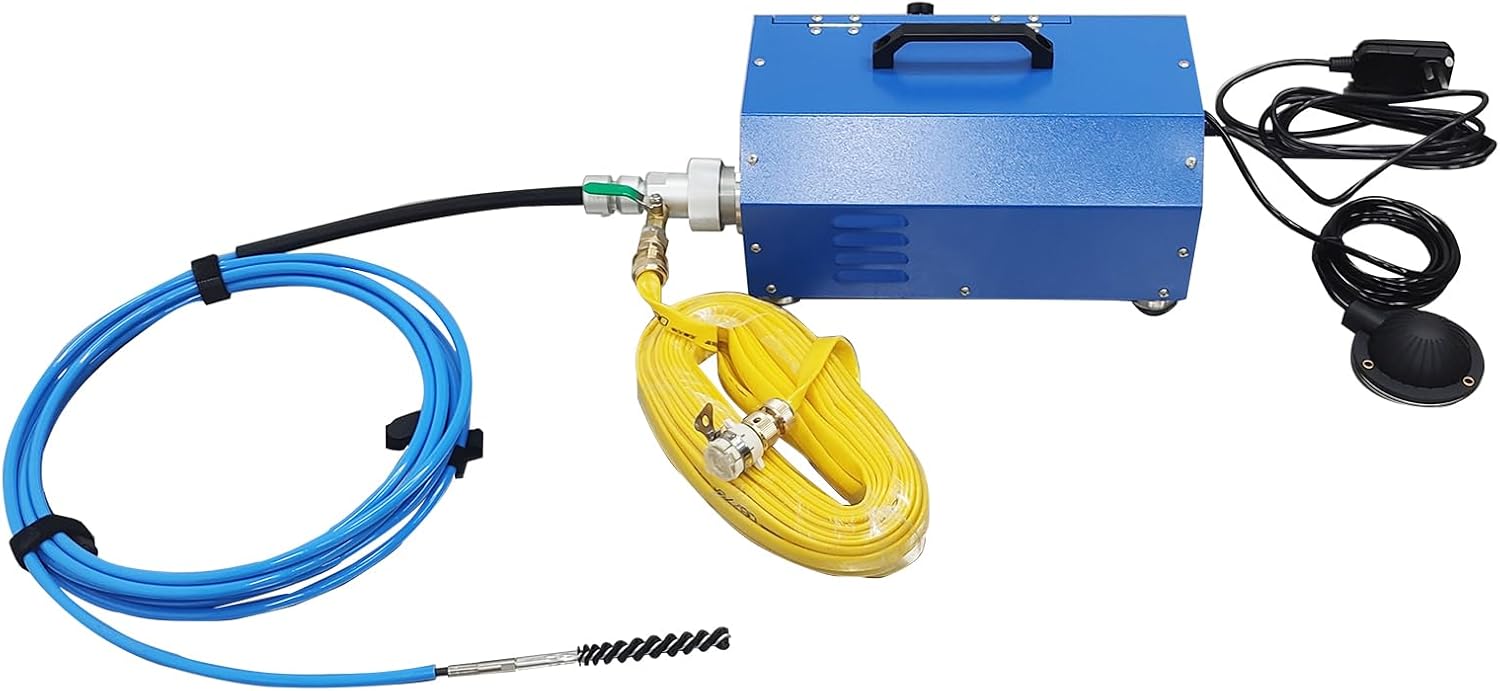

TECHTONGDA Chiller Condenser Tube Cleaning Machine for 0.6-0.7 Inch Pipe Diameter, 110V/220V Heat Exchanger Tube Cleaner Machine with Water Spray Rotary Brush, Portable Copper Pipe Cleaner

Product ParametersMotor: 370WOverload protection: 15AWeight of main machine: 10kgPower voltage: 220V/110V(With 110V transformer)Use temperature: 0-40˚CExternal size: 365x240x210mm (14.4x9.4x8.3 inch)Rotating speed: 0-2800r/minApplicable pipe diameter: 15-18mm (0.6-0.7 inch)Brush: Nylon brush x 10 pcs(15.9mm /0.6 inch)Operation MethodStep 1. Place the machine on the construction site where water is not prone to accumulation.Step 2. Connect the quick connection water pipe to the water inlet of the flexible shaft, and directly connect the other end to the tap water.Step 3. Connect the power end of the flexible shaft to the main machine, tighten it with a large nut, and please note that the power end connector should be kept dry and resistant to rust.Step 4. Choose a cleaning brush with the size slightly smaller than the internal diameter of the pipeline to be cleaned, connect it to the other end of the flexible shaft and tighten it with a wrench.Step 5. Connect the pneumatic foot switch and the electric leakage protection power wire to the positions marked on the machine, and plug the power wire. Please note that the power wire must be connected to the socket with the ground wire. The electric leakage plug should be pressed to detect its flexibility when the machine is used again after a long time.Step 6. Insert the cleaning brush into the pipeline, open the faucet, then tread on the foot switch, and the machine can work. A rotating speed regulator is arranged on the panel of the machine, different rotating speeds can be adjusted according to the demands of working conditions, and the cleaning speed can be improved.Item Number (022830): 1 x Condenser Pipeline Cleaning Machine 220V

• Efficient Cleaning: Tube cleaning machine is equipped with a 0.4" x 24.93' high-strength flexible shaft and a 65.62ft/20m quick-connect water hose, it easily to pass through straight, U-shaped, and S-shaped pipes, suitable for 0.6-0.7 inch diameters.
• Water Spray Rotary Brush: The 0-2800 RPM adjustable rotating brush combined with water flow instantly removes scale and rust residues, delivering dual effects of physical descaling and hydraulic flushing. Built-in 220V to 110V transformer supports both 110V and 220V voltages.
• Wet-Dry Separation: Innovative water path system directs flow directly through the flexible shaft, completely bypassing the main motor to prevent water ingress, extend machine life, and ensure efficient sewage separation for safer operation.
• Portable Storage: Compact and lightweight main unit with built-in brush storage compartment for easy outdoor mobility. Includes 10pcs 15.9mm (0.6 inch) nylon brushes for various pipeline deposits.
• Multi-Scenario Application: Duct pipe cleaning machine is designed for centrifugal chillers, screw chillers, condensers, ground source heat pump units, marine oil coolers, and tubular heat exchangers. Suitable for cleaning away the dirt inside pipe bundles of condensers of central air conditioners.
