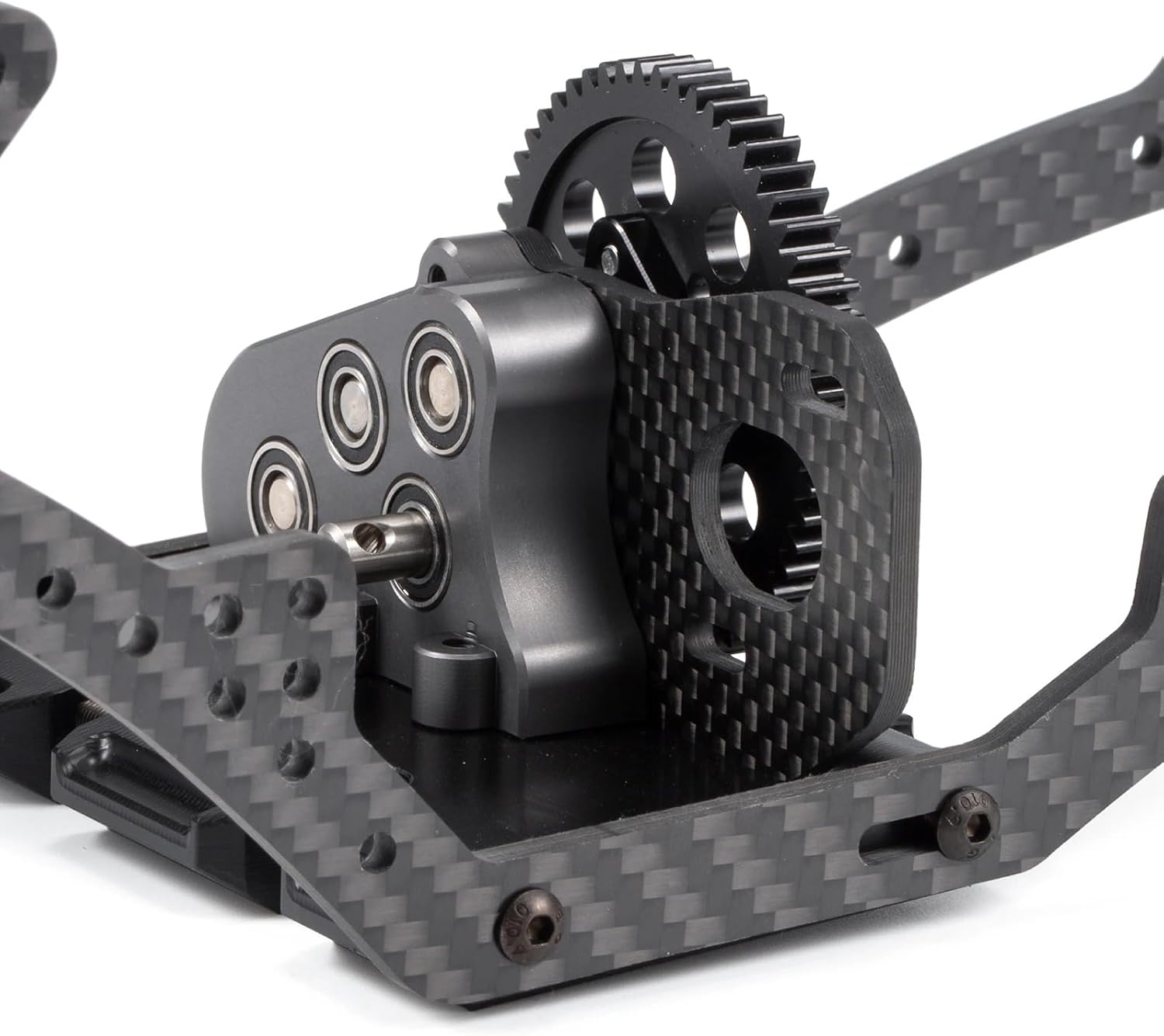

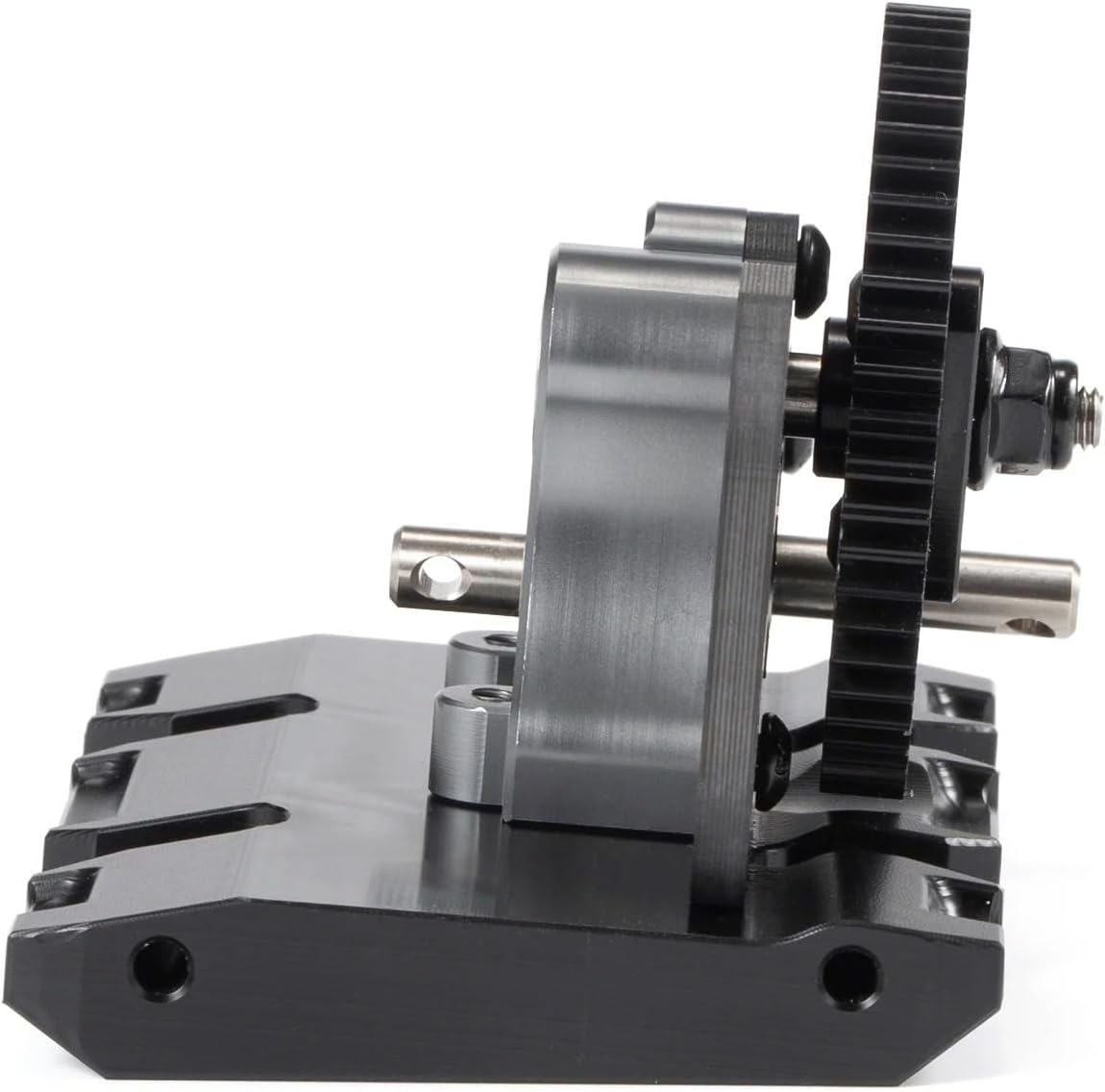

LCG OD Transmission 29% 17% Front Overdrive Gearbox with Skid Plate for 1/10 RC Crawler Chassis Cheater Rigs Comp Builds (17% Front Overdrive)

Features:Machined aluminum case, carbon fiber motor plate.Machined delrin angled skid plate.32P 56T delrin spur gear.Hardened chromoly gears.Machined steel output shaft.Steel sealed bearings.Weight: 122g, including skid plate.29% Front Overdrive or 17% Front Overdrive (optional)Complete assembled transmission.Fits 32Pitch pinions from 9T to 17T (Not Included).Designed for competition level LCG crawler platforms.Included:1x LCG OD Transmission

• Premium Material: This overdrive transmission with machined aluminum case, carbon fiber motor plate, hardened chromoly gears, steel output shaft, machined delrin spur gear and skid plate, steel sealed bearings, these bring better durability and next-level performance
• Compatibility: Works with either straight or portal axles, recommended to use outrunner motor and AM32 crawler ESC (such as SEQURE 3625 Brushless Motor and SEQURE ESCape32 Brushless ESC)
• Front OD Design: This overdrive transmission with 29% front overdrive or 17% front overdrive optional, OD structure provides faster front wheel speed and slower rear wheel speed for better crawling performance
• Weight and Size: The weight including the skid plate is 122g(4.3oz). Size: 83.5mm Length, 14.3mm Width, 35.6mm Height (not including output shaft and spur gear). Motor bolt holes 25mm on center. Skid plate width 78mm
• Packing List: 1x Overdrive Transmission, 1x Skid Plate, 1x Hardware Set
