SEQURE 70A Brushless ESC 2-6S Lipo, RC Motor Electric Speed Controller 128KHz, ESC with 5V 4A BEC for RC Crawler Car, Climbing Car, Ship Model - ESCape32 with WiFi-Link Parameter Configuration Tool

SQESC 2670 Brushless ESC with ESCape32 Firmware Electronic Speed Controller for RC Car/Ship Models Technical Parameters Model Name: SQESC 2670 Processor: STM32G071 Firmware: ESCape32 Input Voltage: DC 7V-25.2V(2-6S Lipo) Constant Current: 70A Maximum Current: 110A BEC Output: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A Signal Protocols: Dshot (All), PWM, Oneshot, Multishot, etc. Programmable parameter adjustments: Yes Steering Setting of the Motor: Yes Accelerator calibration: Yes Boost Timing Setting: Yes Current Detection: Yes Telemetry signal: Yes RGB LED Light: Yes Features: PCB adopts an 8-layer 3OZ immersion gold process, high-power MOS combined with a metal heat sink, which can effectively dissipate heat under high current load and continue to work stably. Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal, and other settings. Onboard RGB LED color light settings, multiple LED colors can be customized. Widely used in RC climbing car, crawler car NOTE:You need to soldering the corresponding joints to get the voltage you need!

• Firmware: ESCape32, Working voltage: DC 7V-25.2V(2-6S Lipo), Constant current: 70A, Peak current: 110A
• SEQURE 2670 brushless esc supports reverse, towards, brake. Recommend pairing it with SEQURE 3625 brushless outrunner motor for 1/10 crawler car.
• BEC supports adjustable output: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A.(by soldering the corresponding joints to get the voltage you need). Can directly supply power to external devices such as receivers and servos.
• Adopts 32-bit high performance processor STM32G071. Operating frequency could up to 64MHz. Supports 128KHZ PWM frequency.
• Automatically detects the throttle signal, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
• Supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.

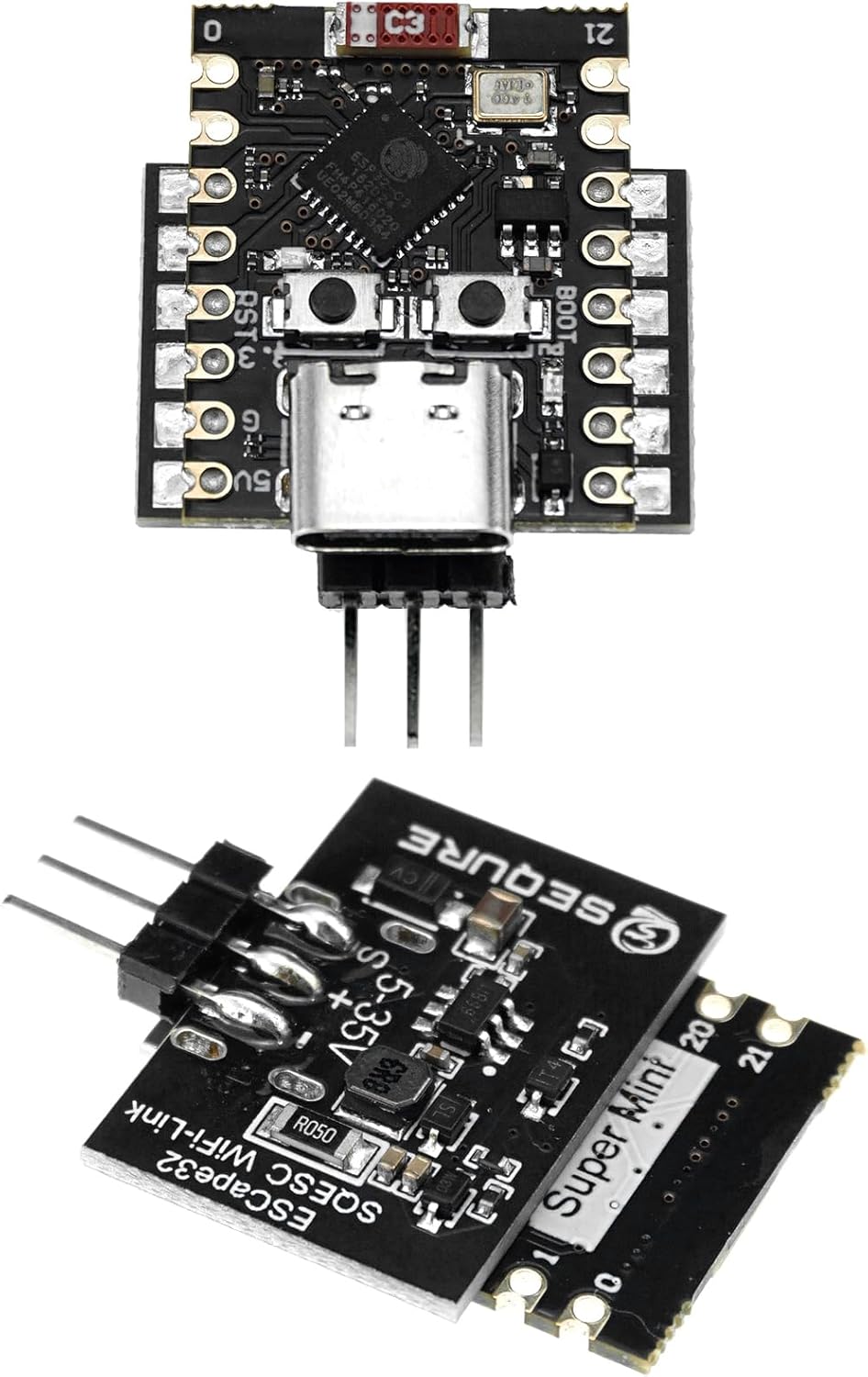

• SEQURE WiFi linker programmer used for ESCape32 open source ESC. Connect ESC via WiFi, you can program the parameters and update firmware through your mobile phone, no need to carry a laptop, very convenient!
