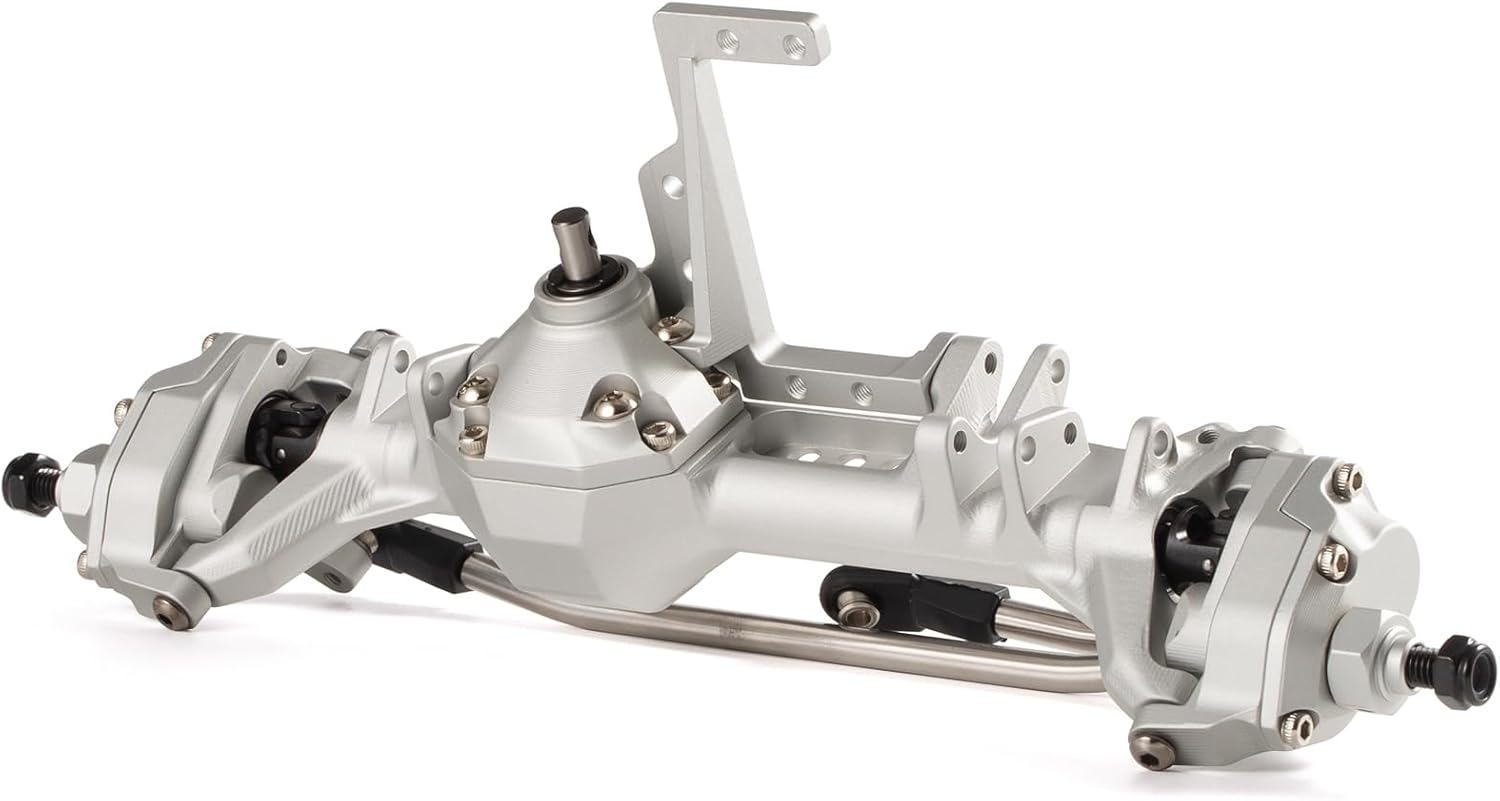

CNC Aluminum F10 Portal Axle Set with BTA Servo Mount for Vanquish VS4-10 Phoenix 1/10 RC Crawler Chassis (Silver)

Features: One piece axle housing construction CNC Machined from quality aluminum Anodized in Black and Silver High quality heat treated 40CR steel universal and rear axle shafts High quality sealed bearing kit Fully machined hardened AR44 style gear set, 30/8 standard ratio Direct replacement for F10 Portal Axle 20 Degree caster angle Full axle truss tied into upper link and panhard mount spanning the full axle width Tucked "C" design for added clearance at steering knuckle. Moving the lower portion of the C-hub up inside of the knuckle provides class leading clearance Comes with BTA servo mount and steering links Come with all parts needed to assemble a full axle Fits VS4-10 or others 1/10 rc crawler chassisDimension: Total Width: 215mm/8.46in Pin to Pin Width: 188mm/7.40in 6mm Stub Shafts, M5 thread 12mm Standard Hex Links Mount Width: 7.2mm Bevel Gear Set: 8T/30T Portal Gear Set: 20T/28T Total Gear Ratio=5.25:1Weight: Front Axle: 315g Rear Axle: 246g*Not compatible with brass tubes used in molded housings*The front axle needs to use the shocks with smaller rod end at the top

• This complete aluminum portal axle set is designed as a direct, high-performance replacement for Vanquish VS4-10 Phoenix and other 1/10 scale crawler chassis. Experience a perfect fit and superior performance with this robust axle assembly
• Machined from quality aluminum with black and silver anodizing, this axle set is built to last. It features heat-treated 40CR steel axle shafts, hardened AR44-style gears (30/8 ratio), and sealed bearings, ensuring maximum strength and reliability on the toughest terrain
• The innovative one-piece housing with a "Tucked C" design moves the lower hub inside the knuckle, providing class-leading clearance around the steering knuckle. Conquer obstacles with ease and reduce hang-ups on rocks and debris

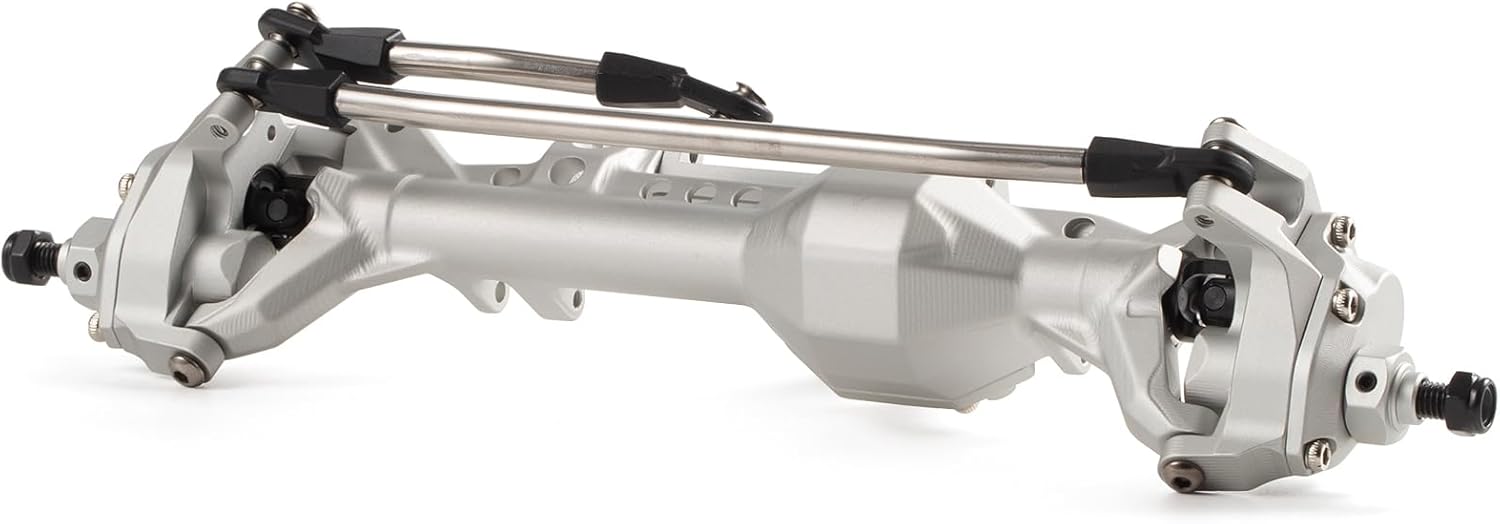

• This is a full axle set that includes everything you need: front and rear axle , BTA (Behind The Axle) servo mount, steering links, gear sets, and bearings. The full-width truss integrates upper link and panhard mounts for a strong, unified structure
• Engineered with a 20-degree caster angle and a total gear reduction of 5.25:1 for massive torque and control. With a pin-to-pin width of 188mm, this axle set delivers a low center of gravity and exceptional stability, giving you a competitive edge
