VGEBY Motor + ESC Kit,550 + 60A Two Way Brushed ESC Kit for SCX10 1/10 Remote Control Car Upgrade Parts RC Car Truck Model Rc Motor and Esc Combo Brushed

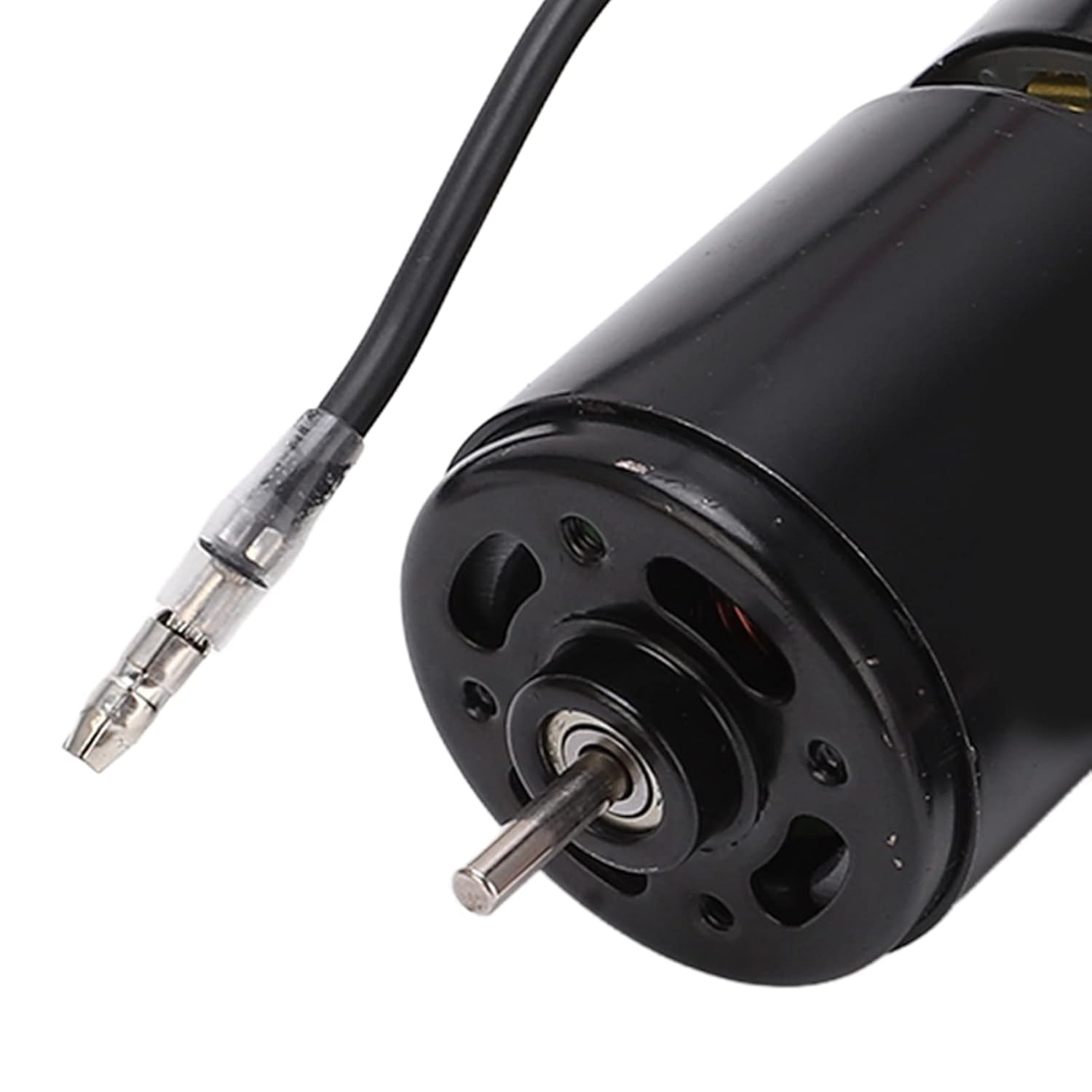

How to Use: 1. Connect the BEC line to the receiver 2. Connect the motor to the ESC 3. Turn on the transmitter 4. Connect the battery pack to the ESC, and then turn on the ESC. 5. After the connection between the motor and the battery is completed, the motor will emit a "beep" sound. 6. When the throttle level is in the neutral position, the electric motor will re‑beep. 7. ESC is feasible. Specification: Item Type: 550 Motor + 60A ESC Kit Motor Color: Black Material: Iron + Copper Motor Size: Approx. 36x57mm/1.4x2.2in (Excluding Shaft and Cable) Shaft Length: Approx. 11mm/0.43in Shaft Diameter: Approx. 3.17mm/0.124in T Number: 21T ESC Parameters Color: Red Forward Continuous Current: 60A Forward Peak Current: 360A Reverse Continuous Current: 30A Reverse Peak Current: 180A Support Voltage: 7-11V (2-3S Lipo / 5-9 NIMH) BCE Output: 3A 6V Application: 1/10 Remote Control Car (such as for SCX10) Package List: 1 x Motor 1 x ESC 1 x Manual

• HEAT DISSIPATION: The built in cooling fan of the ESC can effectively dissipate the heat of the ESC and ensure the sales of long term work.
• TWO WAY ESC: Can control the motor to rotate forward and backward. Motor size is Approx. 36x57mm/1.4x2.2in (excluding shaft and cable).
• PREMIUM MATERIAL: 550 Motor + 60A ESC Kit made of iron + copper material, performance, sturdy, and having long service life.
• MULTIPLE : Lithium battery low voltage , battery test, high temperature , throttle loss .
• APPLICABLE : High torque, low noise, , suitable for various conditions of competition, suitable for 1/10 RC car (such as for SCX10).
