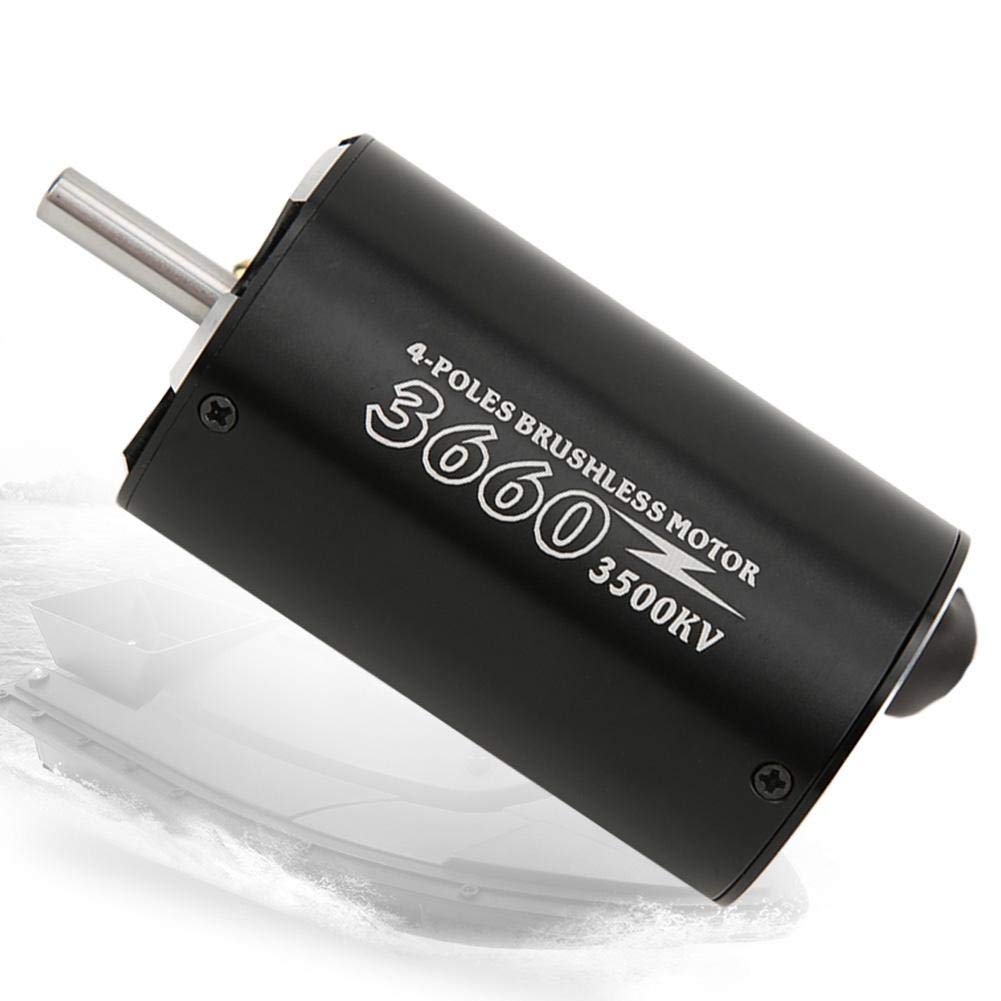

RC Boat Brushless Motor, Black 4-Pole Brushless Motor for 5.0mm 3660 3500 KV RC Boat Accessory Part

Features: 1. It is made of aluminum alloy with the latest CNC milling machines, and designed with high power and rotation speed to provide longer run time for 600-800mm RC boat. 2. design for maximum energy conversion. The 3660 4-pole non-inductive brushless motor is designed to provide and great performance. 3. High purity copper winding maximizes the efficiency. High RPM ABEC5 oversized bearings. balanced rotor with great smoothness, reliability and maximum RPM. 4. High torque motor with 4-pole and 12-slot design. aluminum radiator with CNC process. 5. (0.2mm) lamination stator which make the motor is easier to remove and replace . Specification: Item Type: RC Boat Part Motor: 3660 KV (RPM/Volt): 3,500KV Motor Diameter: Approx. 36mm/1.4in Motor Length: Approx. 60mm/2.4in Motor Shaft Diameter: Approx. 5mm/0.2in Motor Shaft Length: Approx. 18mm/0.7in Fixing Screw Hole Center Distance of the Motor Front Cover: M3 screw 25mm for 3 pairs Motor Outlet Length: Approx. 8cm/3.1in, 4 mm banana Motor Maximum Power: 1700W Peak Current: 3500KV 106A, 2100KV 70A Maximum Voltage: 3500KV 16V, 2100KV 26V Package: Package Size: Approx. 112x70x40mm/4.37x2.73x1.56in Package Weight: Approx. 246g/8.61oz Package List: 1 x Motor

• [Aluminum alloy maerial]--- It is made of aluminum alloy with the latest CNC milling machines, and designed with high power and rotation speed to provide longer run time for 600-800mm RC boat.
• [High performance]--- design for maximum energy conversion. The 3660 4-pole non-inductive brushless motor is designed to provide and great performance.
• High purity copper winding maximizes the efficiency. High RPM ABEC5 oversized bearings. balanced rotor with great smoothness, reliability and maximum RPM.
• [Unique design]--- High torque motor with 4-pole and 12-slot design. aluminum radiator with CNC process.
• [Super-thin]--- (0.2mm) lamination stator which make the motor is easier to remove and replace .
