TORQ MLS-1022 High Torque Micro Servo 5.0V - 8.4V with CNC Servo Mounts & Arms - Remote Control Car, RC Car, RC Crawler Axial SCX24 Electronics Upgrades RC Servos (HELIDIRECT), Mini, Red / Black

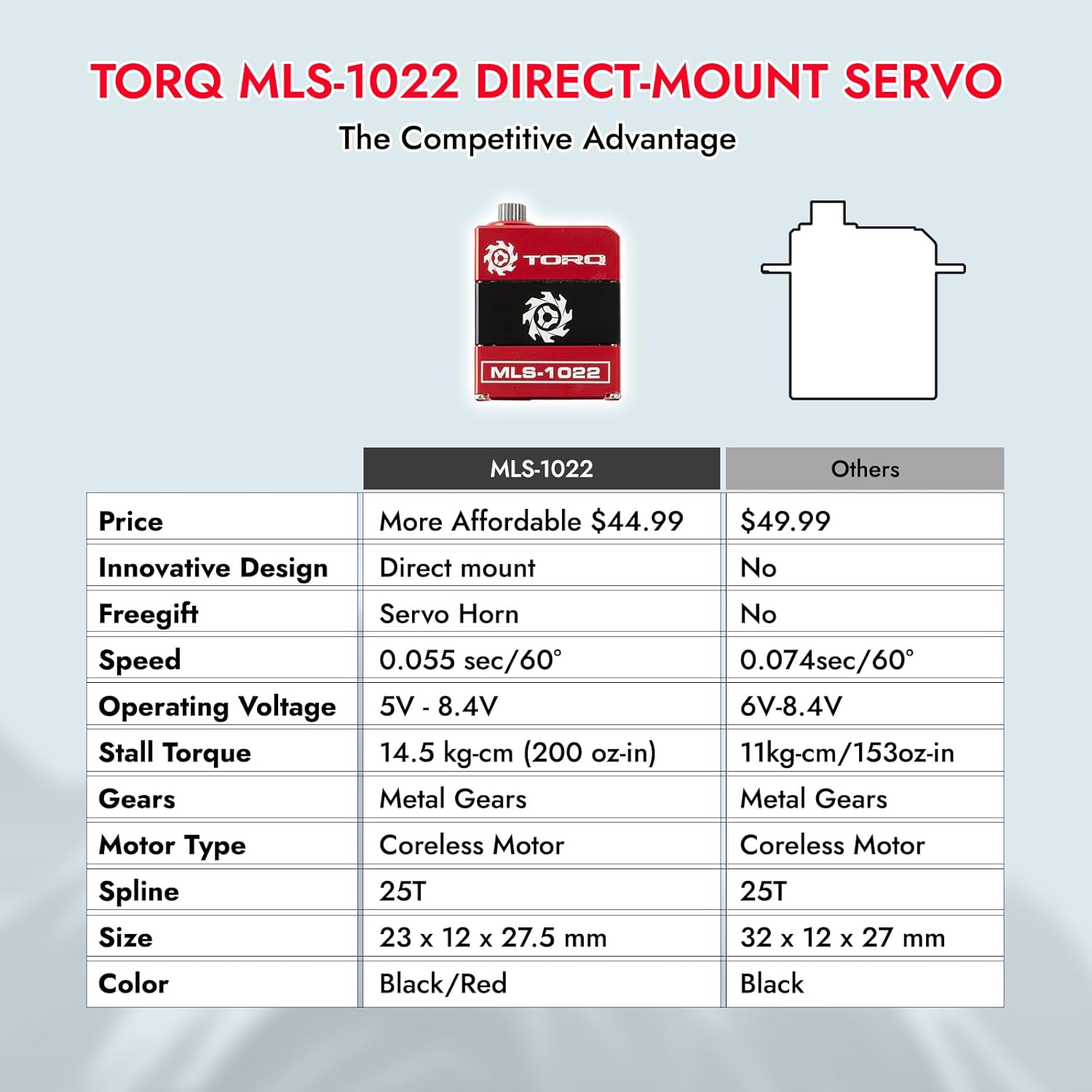

1. Features: - High Torque Output: Delivers powerful performance for small-scale crawlers. - Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost. - No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement. - Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance. - Simplified Installation: Easy to mount due to its unique design. - Enhanced Clearance: Designed for ultimate clearance around the servo. - CNC Servo Horn Included: CNC servo horn. - Patent Pending: The innovative design is currently under patent protection. 2. Specifications - Dead Bandwidth: 3s - Working Frequency: 1520s / 330Hz - Operating Voltage: 5.0V - 8.4V - Motor Type: Coreless Motor - Operating Speed: · At 5.0V: 0.10 sec/60 · At 6.0V: 0.09 sec/60 · At 7.4V: 0.07 sec/60 · At 8.4V: 0.055 sec/60 - Stall Torque: · At 5.0V: 9 kg-cm (125 oz-in) · At 6.0V: 11.5 kg-cm (160 oz-in) · At 7.4V: 12.8 kg-cm (177 oz-in) · At 8.4V: 14.5 kg-cm (200 oz-in) - Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches) - Weight: 22.0 g (0.78 oz) - Connector Wire Length: JR 170 mm (6.7 inches) - Output Gear Spline: 25T 3. Benefits - Space Efficiency: Compact design fits seamlessly within small-scale crawler setups. - Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms. - Performance Enhancement: Unhindered suspension movement leads to better crawler performance. - Ease of Installation: Simplifies the mounting process, saving time and effort.

• Introducing the latest TORQ servo, specifically designed for Axial SCX24 RC crawlers. The TORQ MLS-1022 High Torque Mini Servo is expertly engineered to cater to the needs of small-scale crawlers.
• This high-performance 1/24 RC servo features a mountless design, eliminating the need for a separate servo mount and reducing overall costs. With no servo ears, it provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.

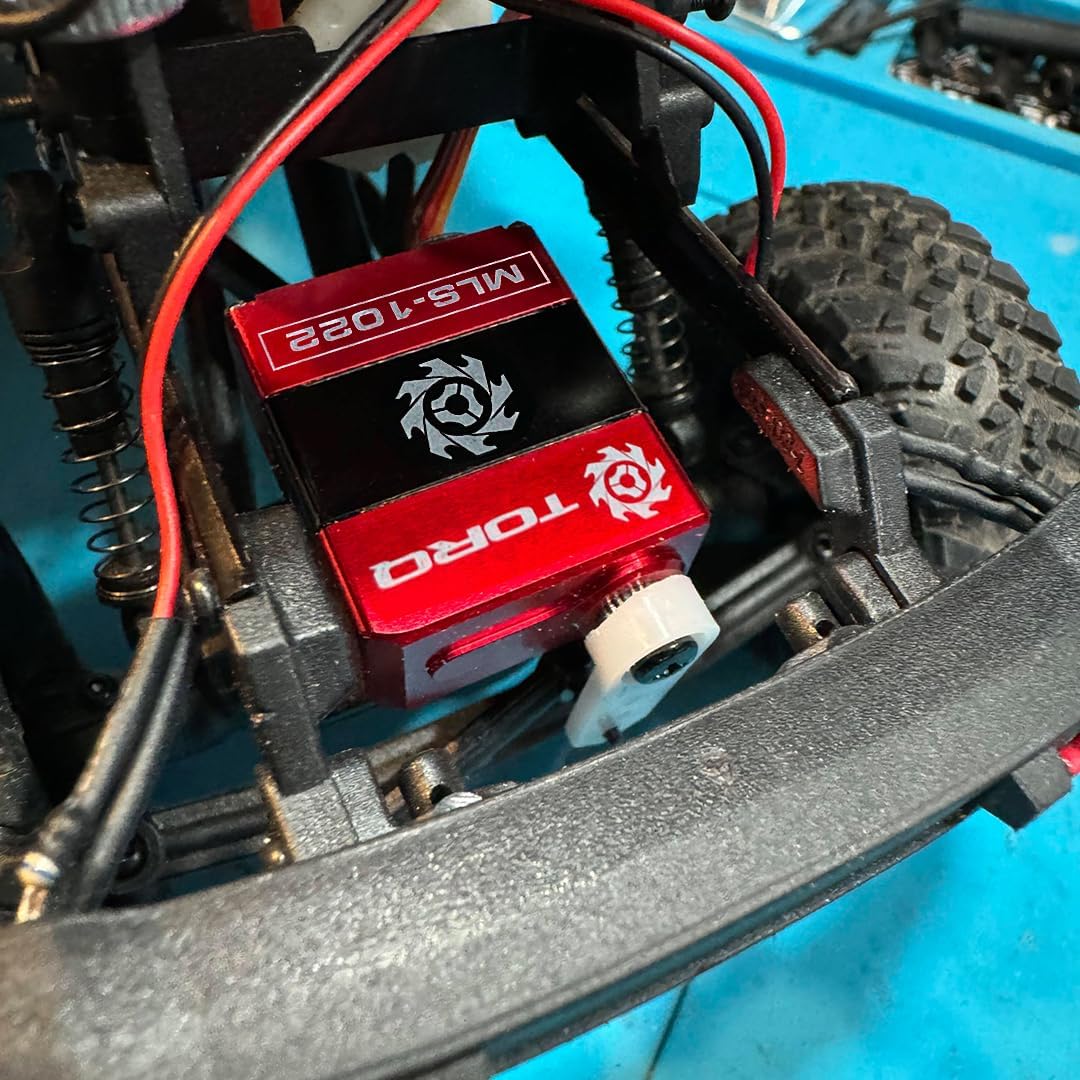

• The rear exit wires ensure unhindered suspension travel, and the simplified installation makes it easy to mount on your SCX24 RC crawler. Enjoy enhanced clearance and a free CNC servo horn for a limited time.
• The innovative design, currently patent pending, guarantees top-notch performance for your Axial SCX24 RC car. Upgrade to the TORQ servo and experience the best in 1/24 RC Roc Crawler technology!
• The TORQ MLS-1022 High Torque Micro Servo - RED is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
