5.8G 1000mW 48CH VTX FPV Transmitter Input Voltage 7-26V Video Transmitter Power 25/100/200/400/1000mW for Long Range RC Airplane FPV Drone
4.1 (65 items)
Limited Time Sale$18.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216421932 | Release Date | 2026/04/19 | List Price | $12.40 | Model Number | 216421932 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

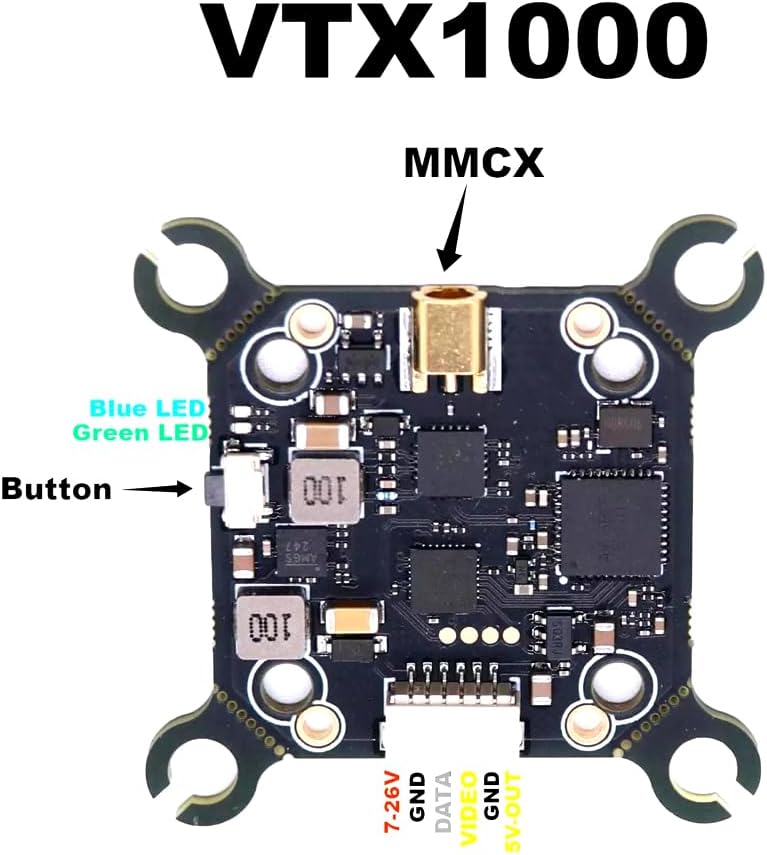

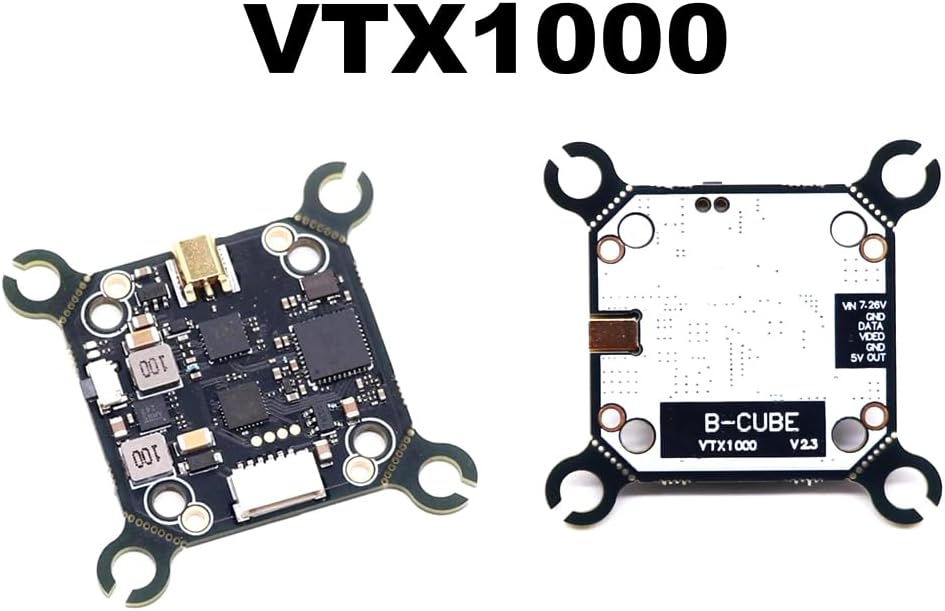

Attention: Before powering on, please make sure toreliably connect the antenna, otherwise it will burn when powered on.VTX1000 will generate heat during use, which is normal. Please do not touch with your hands to avoid burns.The higher the power, the more heat it generates. The PCB uses high-end customized materials,and high temperatures will not bum out the circuit board.VTX1000 should be kept away from the flight control and in a ventilated position on the aircraft.The heat dissipation module should face upwards and be in a ventilated position in order to continuously dissipate heat.Default output: 5865MHZ(5.865GHZ)/1WModel:VTX1000Frequency: 5645-5945MHZInput voltage:7-26VOutput voltage:5V/1AChannel:40CHSize:29MM*29MM/37.5MM*37.5mmTransmission power:PIT/25MW/100/200/400/1000MWScrew hole: 30.5*30.5MM/20.5MM*20.5MMScrew aperture: 3MMWeight:7.3gPackaging List:VTX1000 Board*1Shock-absorbing ball *4Fixed nylon column *4Heat dissipation module *15.8G 5DB antenna *16P* 1.0MM plug cable * 1
- Product Name:New 5.8Ghz 1W VTX FPV Transmitter born for long range fpv racing drone Quadcopter
- Wide voltage input:7-26V input, 5V output. The 1W FPV VTX provides 5V output to your FPV camera
- Transmitting Power: 25/100/200/400/1000mW,Video Format: PAL/NTSC
- Installation Hole:20mm & 30.5mm
| Color | black |
|---|---|
| Material | Aluminum |
| Brand Name | HeelAooRC |
| Media Type | SDXC |
| Model Name | VTX1000 |
| Item Weight | 0.02 Pounds |
| Part Number | 1W |
| Control Type | Remote Control |
| Manufacturer | HeelAooRC |
| Includes Remote | No |
| Video Capture Format | MP4 |
| Are batteries included | No |
| Connectivity Technology | USB |
| Battery Cell Composition | Lithium Polymer |
| Video Capture Resolution | 1080p |
| Item Dimensions L x W x H | 0.02"L x 0.02"W x 0.02"H |
| Optical Sensor Technology | CMOS, CCD |
| Remote Control Technology | RF |
| Includes Rechargeable Battery | No |
| Wireless Communication Technology | RF |
