540 Brushless Motor 1/10 3650 5900KV 3.175mm Shaft Waterproof Brushless Motor for 1:10 Scale RC On-Road Car

540 Brushless Motor 1/10 3650 5900KV 3.175mm Shaft Waterproof Brushless Motor for 1:10 Scale RC Car Features: ✔Specially designed for 1/10 rc racing car, waterproof, suitable for various condition races, a good choice for your rc racing car. ✔4 pole 12 slot High-torque motor design,high torque high efficiency, much faster acceleration response and very stable output of power to the drivetrain. ✔The waterproof function let your car challenge the muddy road, fearless! Notice: **When you install the motor, please do not make the screw into the motor over 6mm, otherwise, the screws will interfere with the operation of the copper windings in the motor, causing the motor to be locked or even damaged.**Due to the high KV value of this motor, please use above 80A ESC. **The motor fits 2-3s battery (2s bettery is recommended for ESCs below 100A), please do not use 2 batteries together, especially 3S batteries. **A wrong tooth ratio can cause the motor to overheat. The motor temperature should be lower than 212℉ during the operation. Temperatures above 212℉ will weaken the magnet and may partly melt the coils and eventually damage the ESC (because of strong current)! To avoid potential risks such as ESC/motor damage or malfunction caused by overheat, start with a very small pinion first and check the ESC & motor temperatures regularly throughout the run. This is the only way to prevent overheating!!! Specifications: Watts: 900W Max voltage: 12V Max Amps: 75A KV(RPM/Volt): 5900KV Max RPM: 50000 Shaft length: 15mm Shaft diameter: 3.175mm Diameter: 36mm Length: 50mm Plug type: 4mm golden plated plug Package Including 1 X 3650 5900KV Motor1 X Product Manual

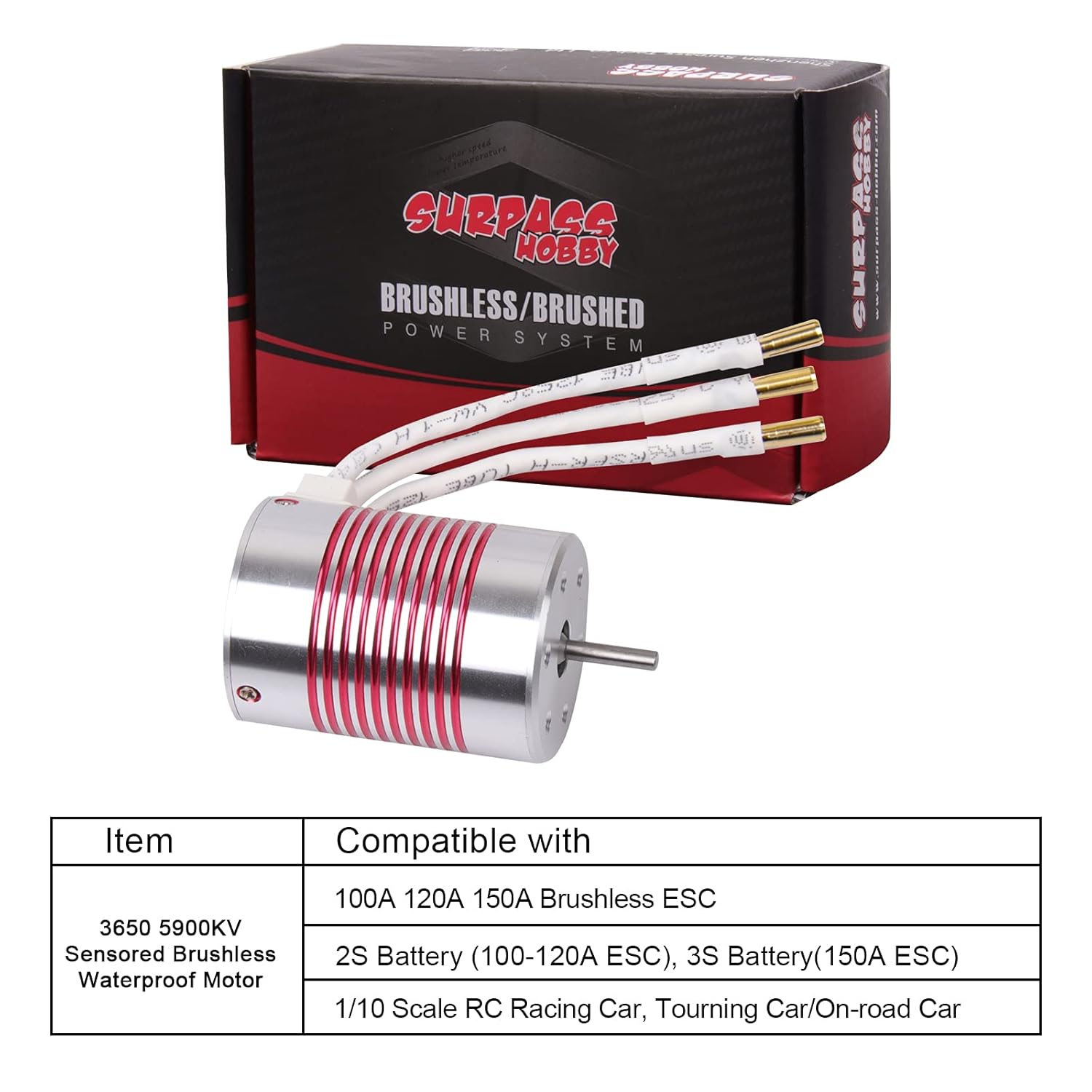

• ★1/10 Brush/Brushless Motor: 3650 5900KV motor 3.175mm shaft 540 brush/brushless motor for 1:10 scale on-road car (tourning car).
• ★Exquisite Appearance: 4 pole 12 slots high-torque motor, secondary oxidation treatment,exquisite appearance.
• ★CNC Machined: CNC machined 6061-T6 heat sink, high-purity copper coiltemperature resistance 180-200° , ultra-durable sealed bearings, super high current sillicon wires, low friction, low noise, durable.
• ★Profession: High balance explosion-proof rotor, high accuracy and high speed, dynamic balance control within 10mg.
• ★Waterproof design: Using ultra-thin silicon steel plate, precision engineered for maximum energy conversion.
