XBERSTAR Lipo Battery Charger for ToolkitRC M6AC Balance Battery Charger 1-6S Lipo LiHV Life Lilon Battery Balanced Charger Discharger for Drone Aircraft Model Car Model (US Model)

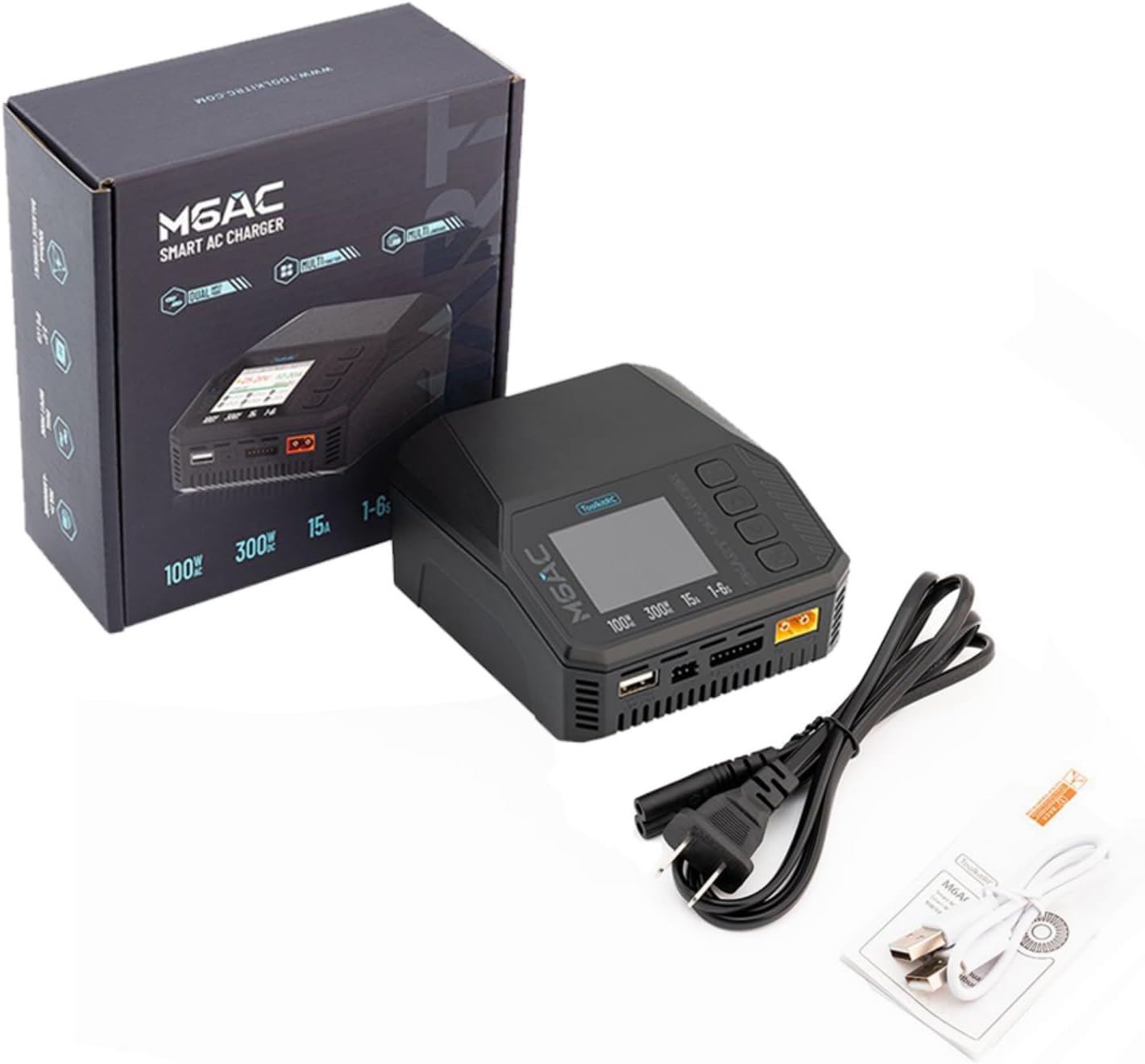

Input voltage AC 100-240V@MAX 120W DC 7-35V@MAX 30A Battery type Lipo LiHV LiFe Lilon @1-6S NiMH @1-16S Pb @1-10S Balancing current 1000mA@4.2V Balancing accuracy <0.005V Charging power 0.1-15A@300W Discharging power 0.1-15A@300WRecycling mode 0.1-3A@15W Normal mode USBA 5.0V/1.0A @10W or firmware upgrade Voltage 1.0V-5.0V @1-6S Internal resistance range 0.1mΩ-99mΩ @1-6S Measurement PWM 500us-2500us@20-1000Hz PPM 880us-2200us×8 CH@20-50Hz SBUS 880us-2200us×16 CH@20-100Hz Output PWM 500us-2500us@20-1000Hz PPM 880us-2200us×8 CH@50Hz SBUS 880us-2200us×16 CH@74Hz Adjustable power supply 0.5-15A@1-28V Mode: CC+CV LCD IPS 2.0″ LCD 320×240 px Packing List M6AC Charger × 1 AC Input Cable × 1 USB Cable × 1 Screen Protector × 1 User Manual × 1

• for ToolkitRC M6AC 300W1S-16S battery balance charger, compatible with Lipo LiHV LiFe Lilon @1-6S NiMH @1-16S Pb @1-10S batteries, the balance charger is suitable for drones, model airplanes, and model cars.
• The Lipo battery charger has short circuit protection, high voltage protection, overcurrent protection, capacity protection, overtemperature protection, time protection, low voltage protection, and V0 flame retardant shell, providing you with charging safety.
• Add built-in power supply, increase the maximum charging power and current to 300W/15A, 1000mA strong balance current, high balance accuracy <0.005V, experience faster and more efficient balance charging, and achieve the best battery performance
• 2.0" IPS high brightness screen: always clearly display the real-time charging status, regardless of any light environment.
• This multi-functional intelligent balance charger has adjustable power supply, resistance signal tester, multiple signal outputs, ESC test, and drone battery charging functions.
