Pneumatic Hinge Drilling Machine 3Z-45-9.5 Woodworking Hinge Boring Machine Punching Depth 0-50mm 110V
4.1 (44 items)
Limited Time SaleUntil the end
00
10
16
$869.40 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $1,449.00
Product details
| Management number | 216532091 | Release Date | 2026/04/19 | List Price | $579.60 | Model Number | 216532091 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

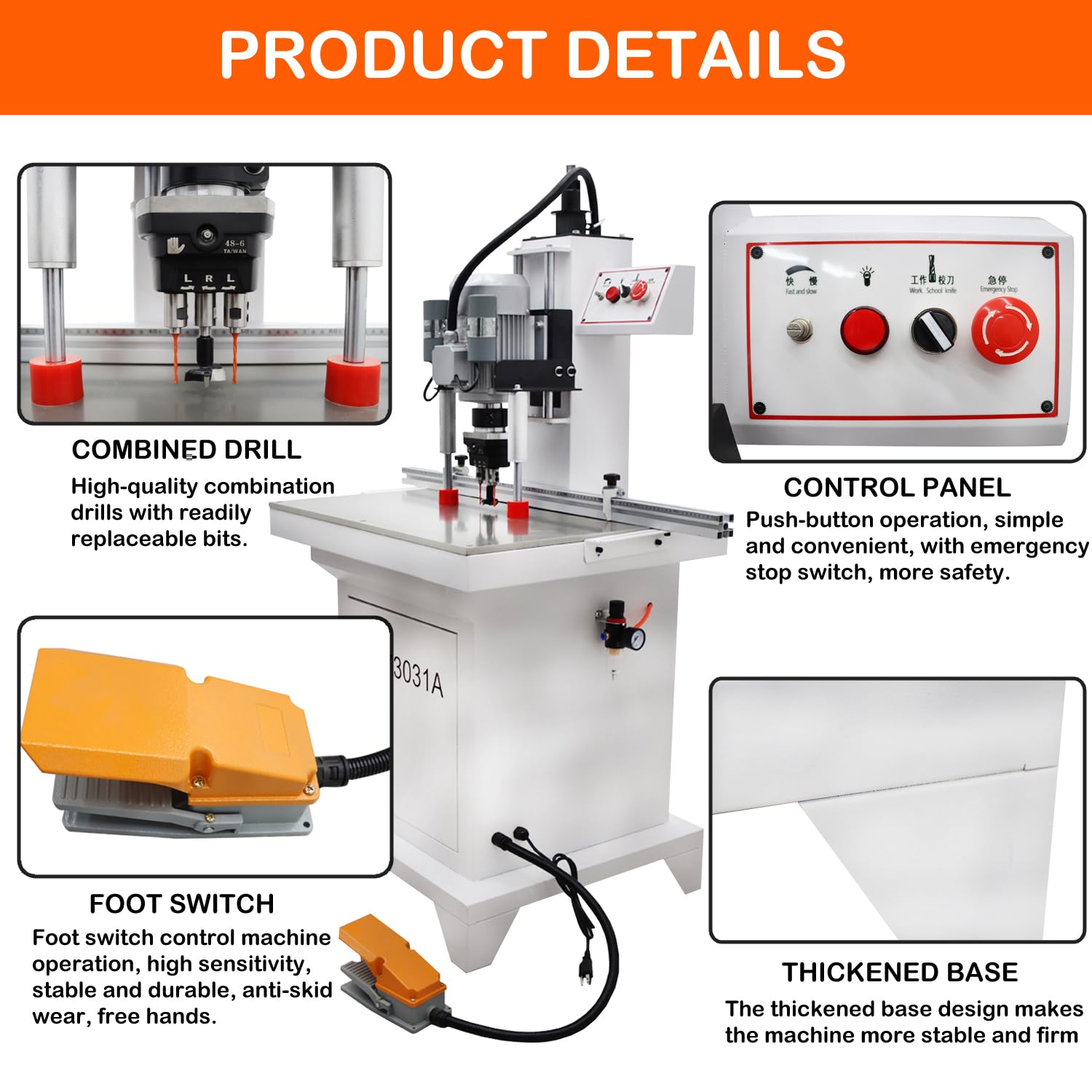

- HIGH PRECISION:Three holes can be machined at a time in the vertical position,one large hole for the hinge head and two holes for the assembly screws.Positioning stopper with accurate scale,the stopper can be adjusted according to demand.Ruler with positioning calipers for more accurate positioning.Air spring rubber compression device, prevent the board from moving.
- LONG LIFE:Equipped with high quality combination drill bit,drill package specification:45-9.5,wear-resistant and anti-impact,low noise,durable.Pure copper motor,strong power,fast heat dissipation,smooth running.Widened and enlarged working table,high flexibility,does not hurt the board.
- SIMPLE OPERATION:Upper control panel,easy and convenient operation,with emergency stop switch,safe and reliable.Foot switch control,safe and labor-saving.With power distribution box,flat lock cabinet door,convenient switch,easy to check the line condition,large internal space,can be placed parts,tools and so on.
- PRODUCT PARAMETERS:Voltage:110V,Power:1500W,Punching Depth:0-50mm,Speed:2880r/min,Drill:φ35mm*1,φ8mm*2,Combined Drill Model:45-9.5,Scale:39.4″(100cm),Air Pressure:0.6-0.8MPA,Net Weight:140.8LBS(64kg),Gross Weight:233.2LBS(106kg),Package Size:31.89″*28.54″*65.75″(81*72.5*167cm)
- WIDE APPLICATION:The machine is mainly used for loosening and hinge drilling,the workpiece positioning plate is adjustable longitudinally and horizontally,which is convenient and adaptable to the drilling requirements.It can be used for particle board,multi-layer board,log board,it is the ideal equipment for the door processing and manufacturing factory of closet door,kitchen cabinet door,bookcase door and so on.
| UPC | 785869985858 |
|---|---|
| Color | Onecolor |
| Voltage | 110 Volts |
| Brand Name | HayWHNKN |
| Drill Type | Combination Drill |
| Is Electric | Yes |
| Manufacturer | HayWHNKN |
| Model Number | 45-9.5 |
| Power Source | Corded Electric |
| Material Type | Metal |
| Maximum Power | 1.5 Kilowatts |
| Maximum Chuck Size | 45 Millimeters |
| Additional Features | Variable Speed |
| Included Components | Drill Bits, Chuck Key, Hinge Boring Bit |
| Drilling Capacity Wood | 45 Millimeters |
| Manufacturer Part Number | JH027304 |
| Maximum Rotational Speed | 2880 RPM |
