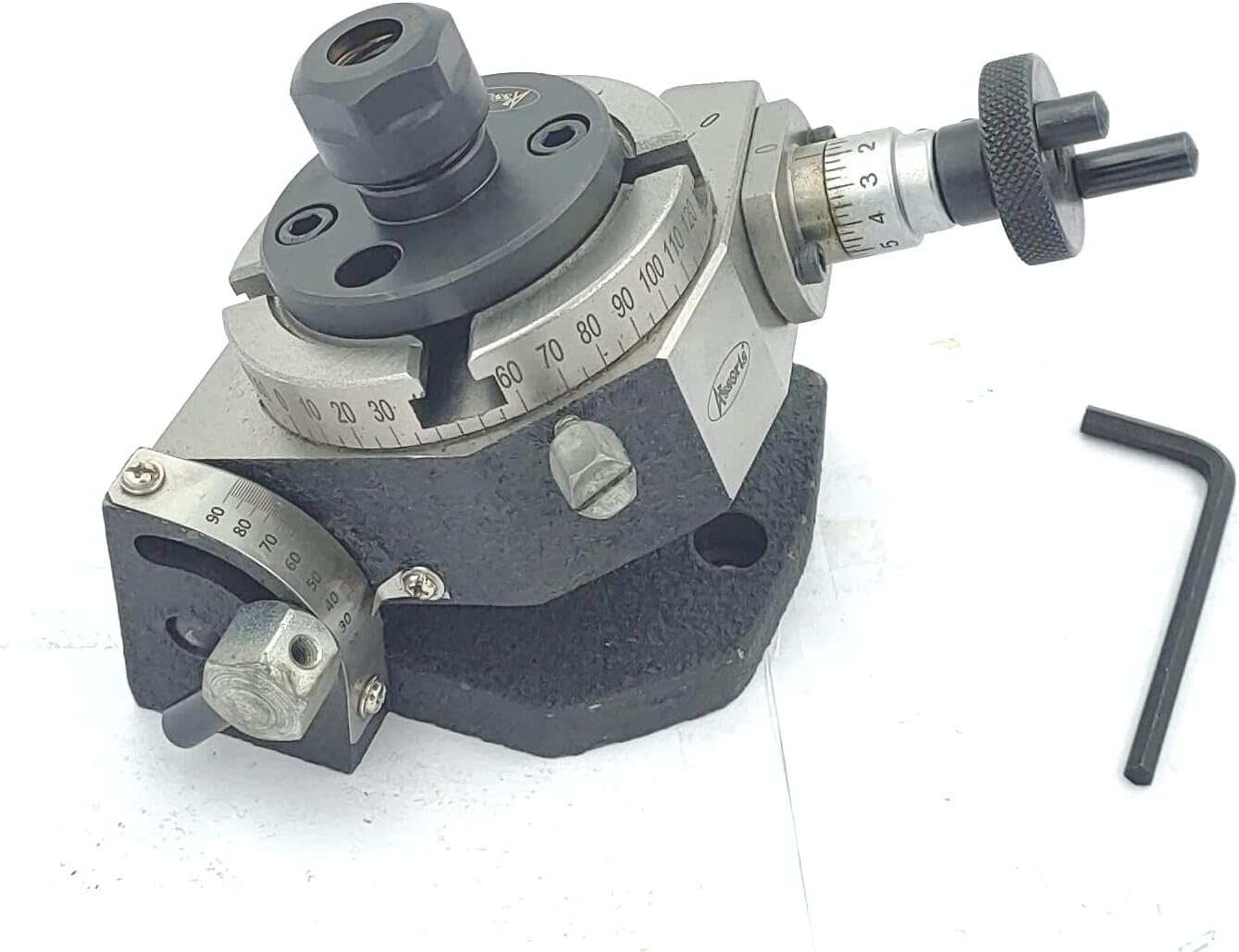

Rotary Table (3"/80 mm Tilting, ER16 Collet Adaptor with M6 Clamp Kit)

Made out of high grain casting, this precision quality low profile rotary table diameter is 80 mm (3"Inches ) and is most popular light weight tilting rotary table for small and light duty milling operations. Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero. Designed to tilt between 0- 90 Degrees & can be locked at any working angle position. Total Height when laid flat is 2-7/16" ( 62 mm ) without collet adaptor. The assembly height measures to be 98 mm (with ER16 ) adapter mounted on it. Center Height in vertical position: 2-17/32" (61.5 mm approx). Base Dimensions : 100 x 105 mm with 2 x Drills (8 mm diameter) at a PCD of 82 mm approx. Weight of the Rotary Table : 2.700 Kgs. Supplied with 1 Pc each of ER16 collet adaptor Pc , suitable M6 clamp kit which is hardened and ground before the epoxy black finish for a rust free life. Supplied with 1 Pc each of ER16 collet adaptor along with a M6 clamp kit which is hardened and ground before the epoxy black finish for a rust free life. It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc. We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.

• Made out of high grain casting, this precision quality low profile rotary table diameter is 80 mm (3"Inches ) and is most popular light weight tilting rotary table for small and light duty milling operations.
• Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero.
• Designed to tilt between 0- 90 Degrees & can be locked at any working angle position. Total Height when laid flat is 2-7/16" ( 62 mm ) without collet adaptor. The assembly height measures to be 98 mm (with ER16 ) adapter mounted on it. Center Height in vertical position: 2-17/32" (61.5 mm approx).
• Base Dimensions : 100 x 105 mm with 2 x Drills (8 mm diameter) at a PCD of 82 mm approx. Weight of the Rotary Table : 2.700 Kgs. Supplied with 1 Pc each of ER16 collet adaptor Pc , suitable M6 clamp kit which is hardened and ground before the epoxy black finish for a rust free life.
• Supplied with 1 Pc each of ER16 collet adaptor along with a M6 clamp kit which is hardened and ground before the epoxy black finish for a rust free life. It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc.
• We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.
