48v 1000w Brushed Speed Motor and Controller Set for Electric Scooter Go Kart Bicycle e Bike Tricycle Moped

Specifications:Motor:Output: 1000WRated speed: 3000-3360 RPMRated voltage: 48V DCRated current: 26.7ANo-load current: ≤2.8APeak efficiency at 48V: 80 percentReversible: (w/ polarity swap)Sprocket：9 toothfor 8mm T8F chainNote: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.Controller:Rated voltage: 48V DCMatch motor: 48V 1000 WConversion efficency: 95% Under Voltage Protection: 42±0.5VSpeed regulator (throttle): 1-4 VController Wiring:This controller has 9 connectors, compatible with many 48V bikes with up to 1000W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle) / 9. Double speedThese controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

• This is a set of reliable universal 48VDC 1000w brushed electric motor & controller.
• Rated speed: 3000 RPM, Sprocket：9 toothfor 8mm T8F chain, Horsepower: 1.6HP
• Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes

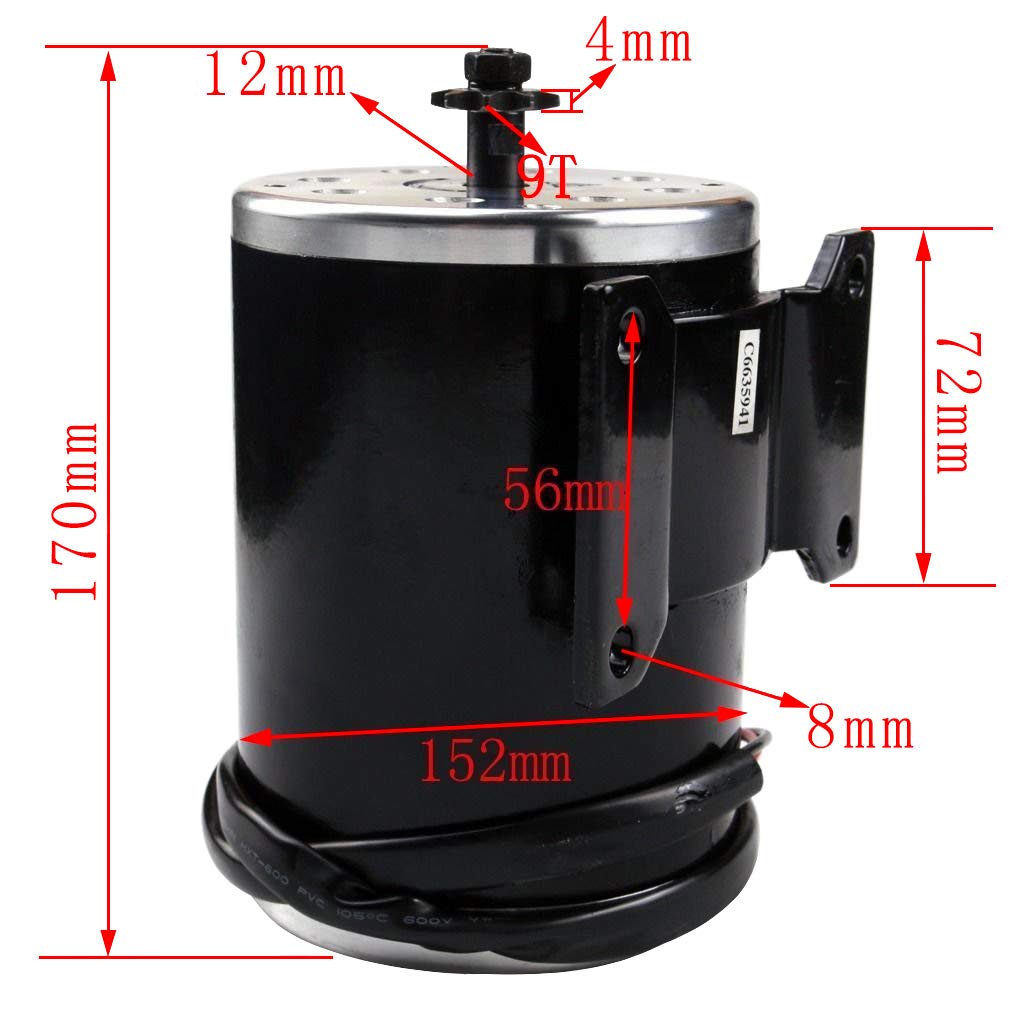

• Refer to picture and below "Product Description" for wiring instruction and specifications
• Package includes: 1x Motor + 1x Controller
