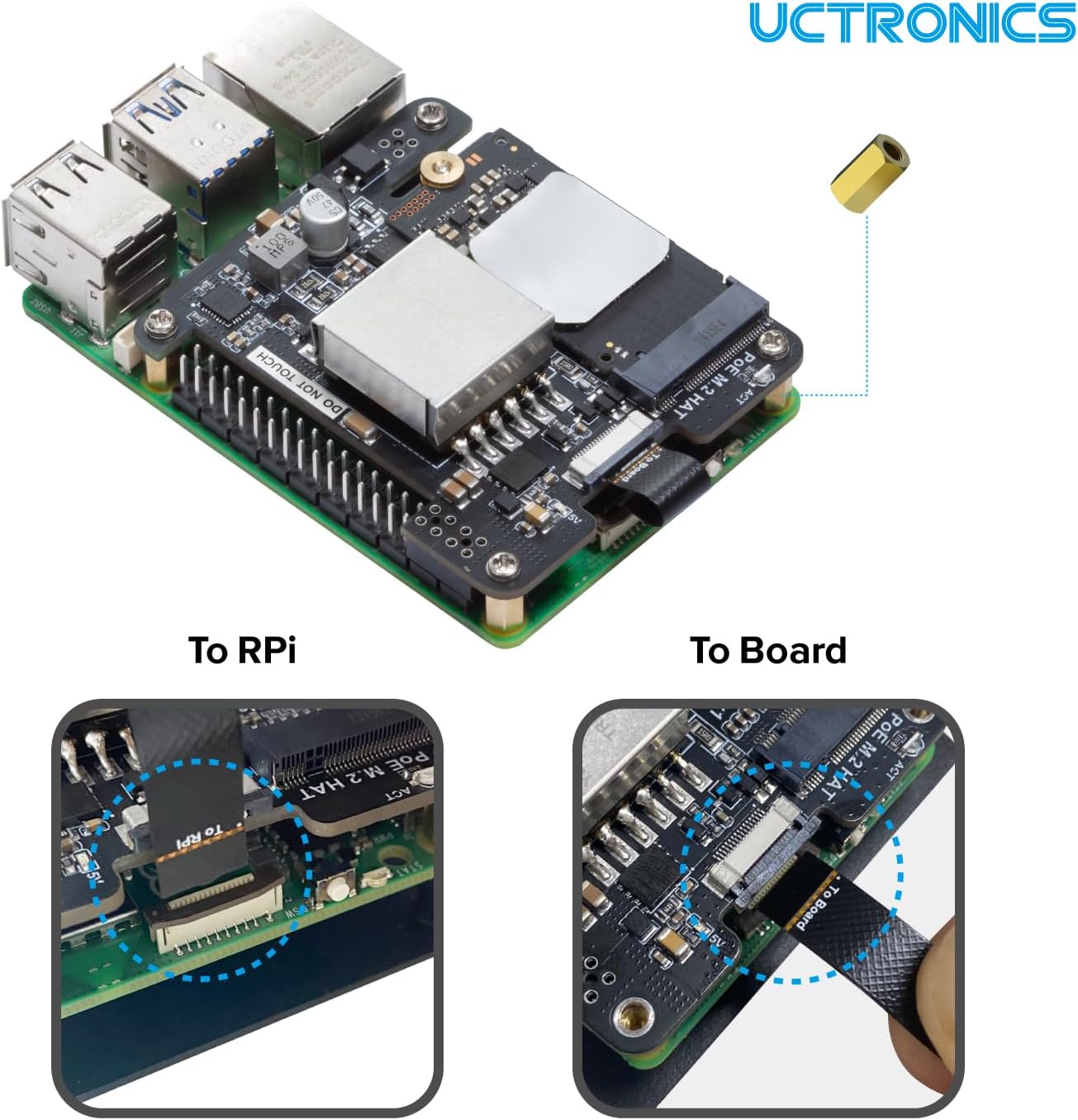

UCTRONICS 5V 5A NVMe PoE+ HAT for Raspberry Pi 5, PCIe to M.2 NVMe Adapter, Compatible with 2230/2242 NVMe SSDs, IEEE 802.3af/at PoE+ Power Over Ethernet
4.9 (62 items)
Limited Time SaleUntil the end
05
03
09
$17.99 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $29.99
Product details
| Management number | 216993845 | Release Date | 2026/04/19 | List Price | $12.00 | Model Number | 216993845 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- High Output Power: This NVMe PoE hat is a fully isolated switch-mode power supply (SMPS), delivering up to 25W, 5V/5A (MAX) output. Ensure stable power for your Raspberry Pi 5 and connected peripherals. Note: To achieve 5A output, use an IEEE 802.3at or higher PoE input device NOTE: Do NOT connect the Power supply to USB-C on Pi 5 board when you are using PoE+ Hat as a power supply, it may damage your device !!!
- Power over Ethernet (PoE+) Support: This raspberry pi 5 PoE hat supports IEEE 802.3af/at standards, delivering both power and data through a single Ethernet cable. Simplify your setup and eliminate the need for an additional power adapter

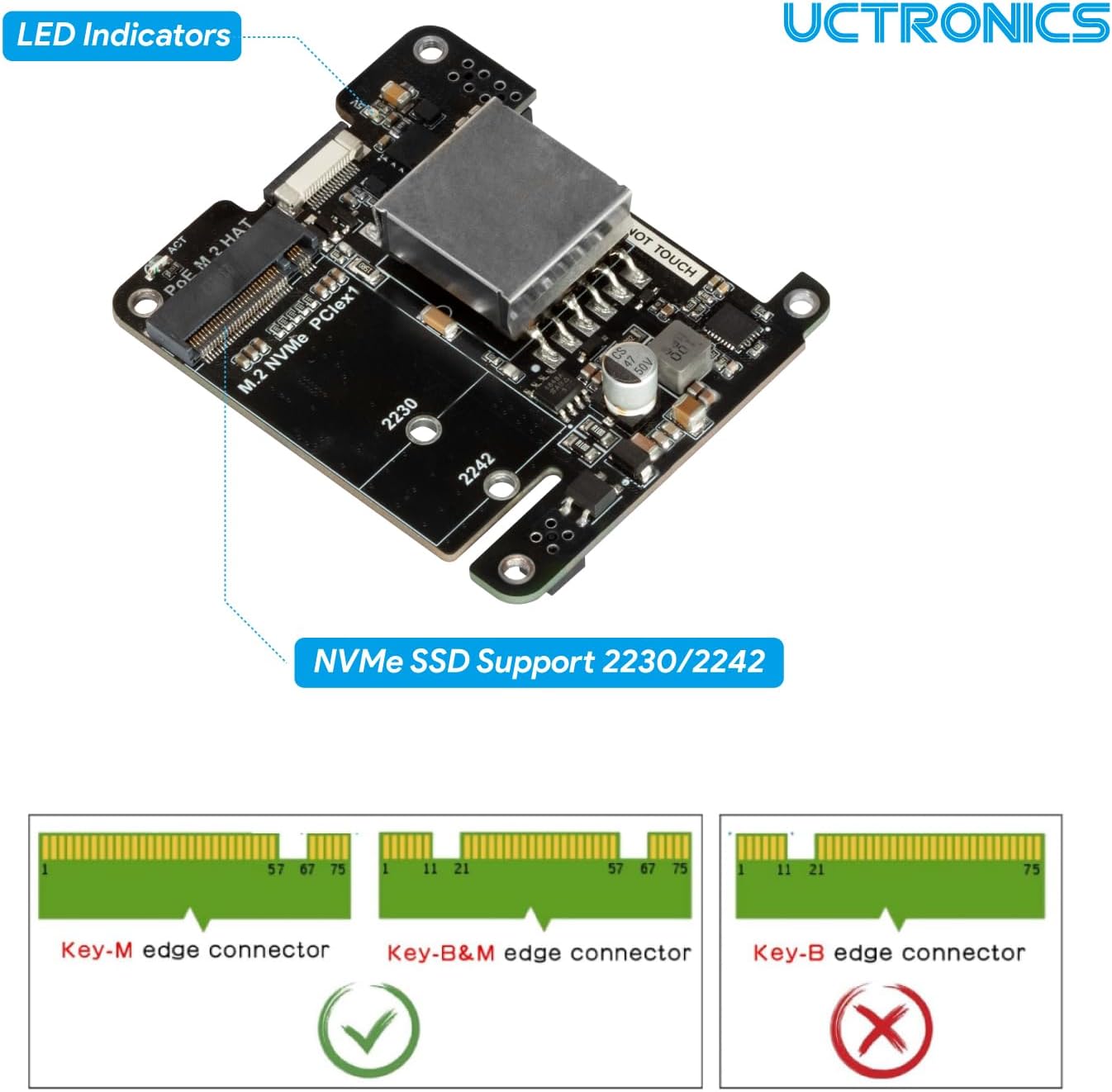

- High-Speed NVMe SSD for Raspberry Pi 5: This Raspberry Pi 5 NVMe hat supports M.2 NVMe SSDs (2230/2242 sizes, M-Key / B+M Key), which enables ultra-fast PCIe storage expansion. Achieve real read/write speeds up to 800MB/s, ideal for data-intensive projects and AI applications NOTE: After discussions in the Raspberry Pi forum, it's been observed that Raspberry Pi may not boot from WD hard disks, possibly due to the Phison controller equipped with this SSD.
- Efficient Heat Dissipation: This UCTRONICS for Raspberry Pi 5 PoE+ hat is equipped with an Active Cooler that combines an aluminium heatsink with a PWM fan to ensure stable performance under heavy loads
- Compact layout and small size: This Raspberry Pi NVMe hat is suitable for most cases, also compatible with uctronics pi rack mount(U6123-B08F9X528J, U6195-B09D7RR6NY, U6264-B09STTXWZZ)
| Brand | UCTRONICS |
|---|---|
| Model Name | U6287 |
| Unit Count | 1.0 Count |
| Manufacturer | UCTRONICS |
| Model Number | U6287 |
| BuiltIn Media | 2*2pin+2*4pin Connector Socket, 30mm PCIe Cable, Heatsink with Cooling Fan, PoE M.2 NVMe HAT, Screws Pack |
| Mfr Part Number | U6287 |
| Processor Brand | Broadcom |
| Processor Count | 1 |
| Operating System | Linux |
| Compatible Devices | Raspberry Pi 5, M.2 NVMe SSDs (2230/2242 sizes, M-Key / B+M Key) |
| Warranty Description | 6 months |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | Ethernet 1000BASE-T, PoE+ |
| Smart Home Compatibility | Not Smart Home Compatible |
