SinLoon M.2 M-Key PCI-E4.0 2280 NGFF to PCIe X4 Extender Cable M2 to PCI-E 4X Female Riser Cable for M2 2230 (M.2 180 Degree)
4.0 (51 items)
Limited Time Sale$15.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217019668 | Release Date | 2026/04/19 | List Price | $10.40 | Model Number | 217019668 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Note: 1. To avoid damage to the device, ensure that the installation direction is correct. 2. During disassembly, please hold the PCB hardware part instead of pulling the wire body to avoid damaging the magnetic core. 3. Does not support hot-plugging (when installing this product, please make sure the motherboard is powered off first). Package includes: 1 * M.2 M-Key PCI-E4.0 2280 NGFF to PCIe X4 Extender Cable 1 * SATA Power Cord

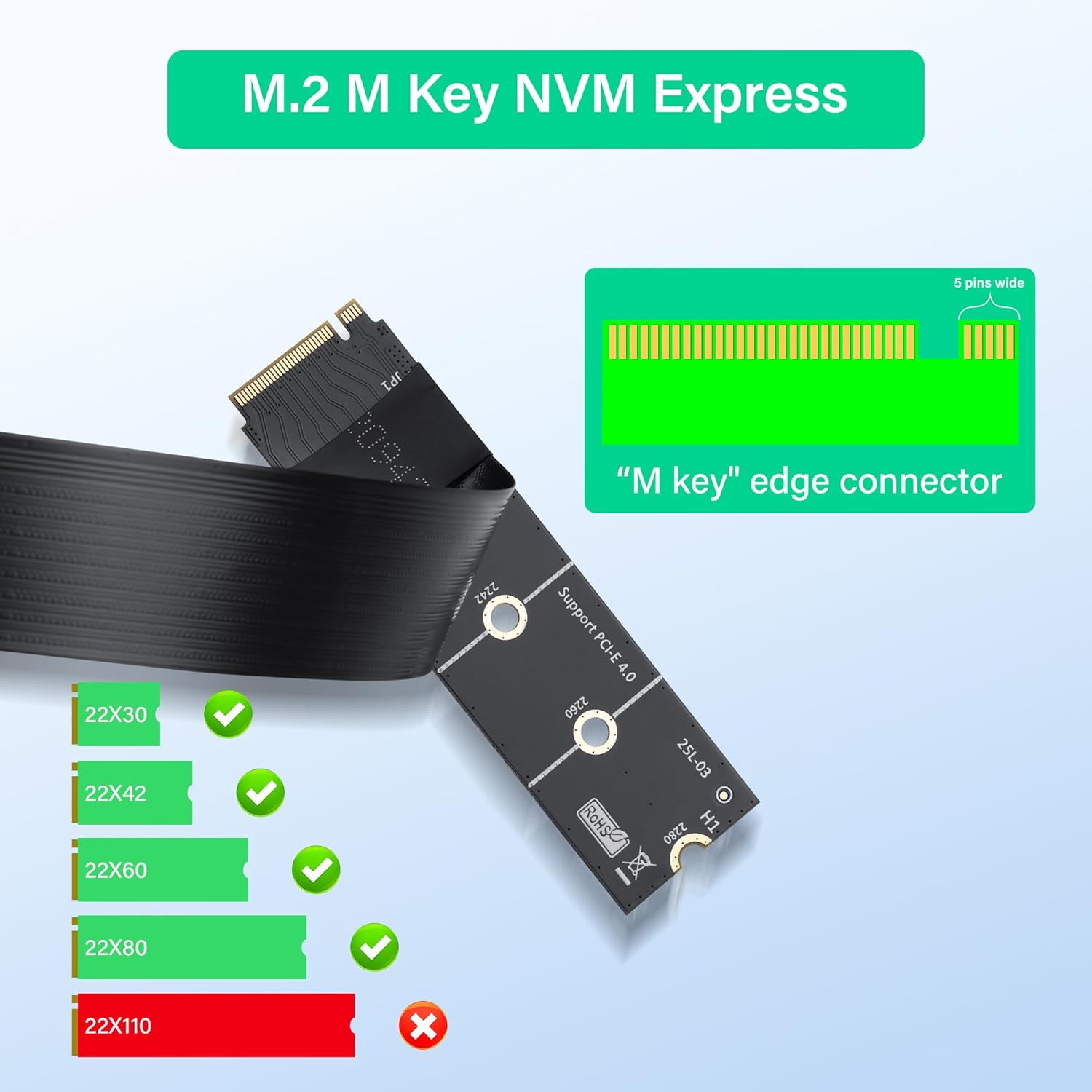

- 【Function】M.2 M-Key PCI-E4.0 2280 NGFF to PCIe X4 Extender Cable can convert the M.2 slot on the motherboard into the the PCIe X4 slot, which is used to connect various PCIe X4 devices.
- 【High-Speed Expansion】M.2 M-Key PCIe 4.0 2280 NGFF to PCIe X4 adapter expands the 2280 M-Key system by one PCIe X4 female interface. It is fully compatible with PCIe Gen 3 and Gen 4.

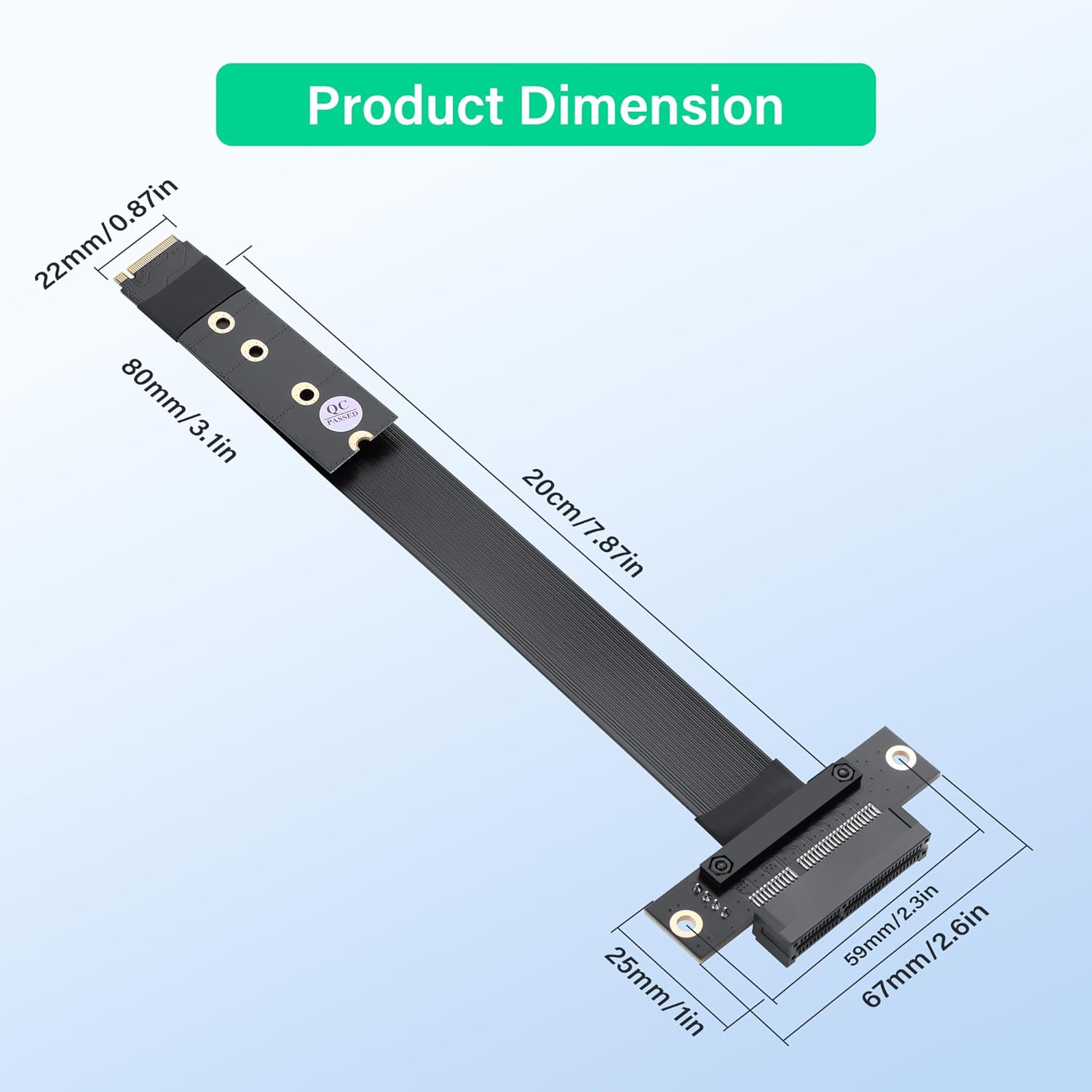

- 【PCIe 4.0 Performance with NVMe Support】Delivering PCIe 4.0 signaling via the NVMe protocol, this cable enables data transfer speeds of up to 64 Gbps. It supports NVMe 1.2 and is compatible with SSDs, and expansion cards, while remaining backward compatible with PCIe 3.0. Cable length: 20cm / 7.87in.
- 【Include SATA Power Cord】The package includes a 12V SATA power cord. Please note: 12V power is available only when the cable is connected.
- 【Secure Installation Notice】To avoid damage to the device, ensure that the installation direction is correct. Due to the delicate structure of the magnetic core inside the product, please hold the PCB hardware part during the disassembly process to avoid damaging the magnetic core. Does not support hot-plugging. (when installing this product, please make sure the motherboard is powered off first)
| Brand Name | SinLoon |
|---|---|
| Cable Type | PCIE |
| Manufacturer | Xin sen long(Shenzhen)Electronics co.. Ltd |
| Connector Type | M.2 M-key, Pcie X4 |
| Number of Pins | 66 |
| Connector Gender | Male-to-Female |
| Compatible Devices | computer |
| Data Transfer Rate | 64 Gigabits Per Second |
| Included Components | no |
| Indoor Outdoor Usage | Indoor |
| Warranty Description | NO |
| Recommended Uses For Product | Connect and extend M.2 devices, facilitate data transfer, enable use of PCIe X4 devices with M.2 slots |
| Other Special Features of the Product | PCIE 4.0 |
