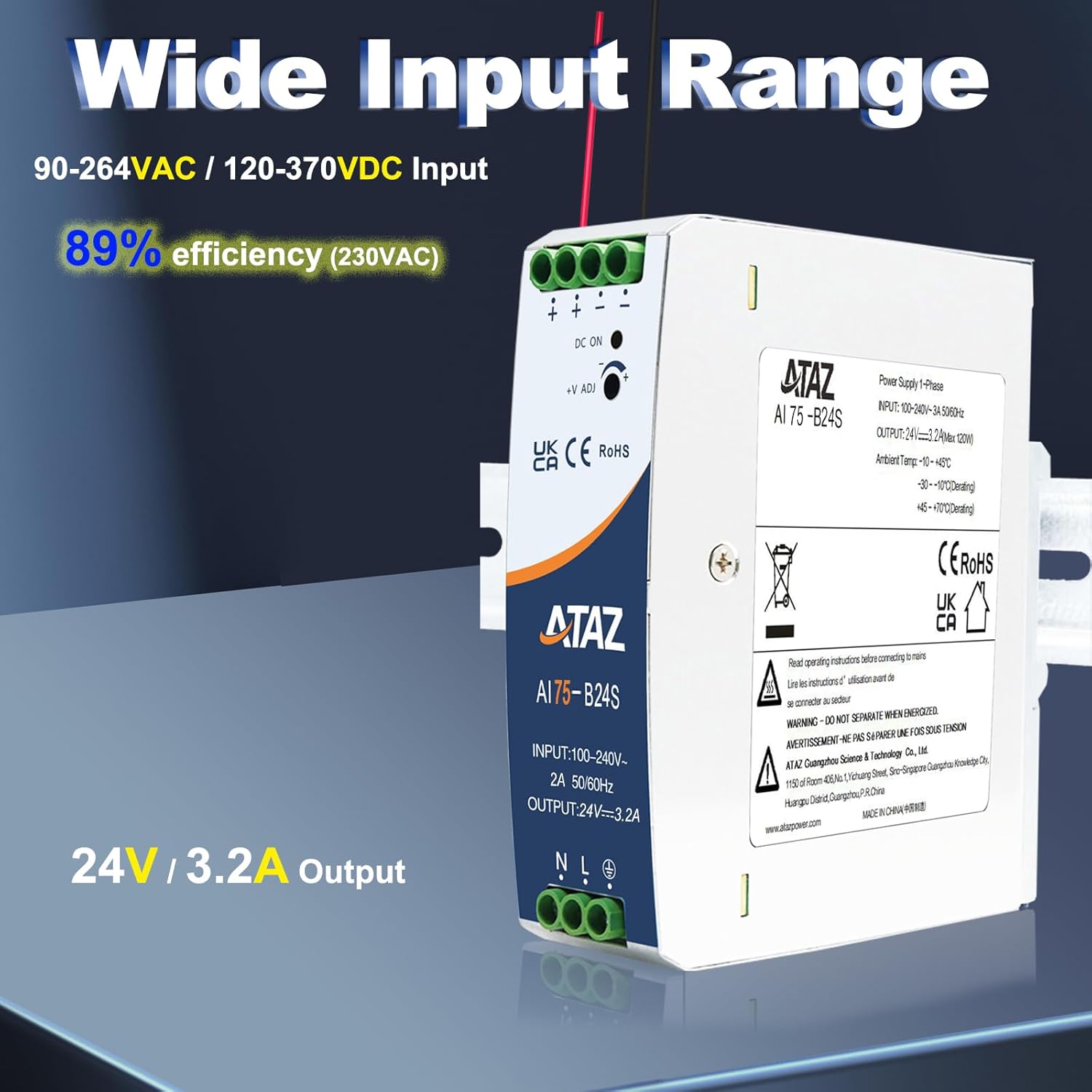

75W Din Rail Power Supply, 3.2A 24V Output, AC/DC Power Supply with DC OK Function

Overview:The AC/DC 24V DIN Rail Power Supply is a reliable and cost-effective solution for powering a variety of industrial applications. With an output of 24V 3.2A, this device is designed for maximum stability and efficiency. It also offers superior protection with comprehensive protections including PFC, over-voltage protection, over-current protection, and short-circuit protection. The built-in vent design ensures fast heat dissipation and the extended MTBF greatly improves its reliability. The DC OK function allows for input of both AC and DC sources, making it more versatile in various applications and protecting against potential damage caused by voltage fluctuations.Specification:1. Type: AC/DC Power Supply2. Input Specification：3. Rated Input(Certified Voltage): 100 - 240V AC4. AC Input: 90 - 264V AC5. DC Input: 120 - 370V DC6. Input Voltage Frequency: 47 - 63Hz(Rated AC Input: 50 - 60Hz)7. Input Current: 2.0A8. Output Specification:9. Output Power: 75W10. Output Voltage: 24V11. Output Current: 3.2A12. Output Voltage Adjustable Range ADJ: 24-28V13. Efficiency at 230V AC Type: 89%14. Output Ripple Noise : 75mVp-p(Max 150mVp-p)15. Load Regulation Rate: 0%-100% Load16. DC OK Signal: Resistive Load 30V DC/1A MaxKey Features:a. Universal 90 - 264V AC or 120- 370V DC lnput voltageb. Accepts AC or DC input (dual-use of same terminal)c. 24V 3.2A Output, suitable for powering various industrial devices or equipmentd. Operating ambient temperature range:-30℃ to +70℃e. Built-in active PFC function reduces energy loss and improves efficiencyf. Comprehensive Protections including short circuit, over-current, over-voltage, and over-temperature protectiong. 150% peak load output for 3 seconds provides a more stable output

• 【Wide voltage Input】Universal 90 - 264V AC or 120- 370V DC Input Voltage, the power supply can accept both AC and DC input, making it more versatile in various applications and protecting against potential damage caused by voltage fluctuations.
• 【24V 3.2A Output】The 24V Din Rail Power Supply offers a versatile 24V 3.2A output that allows for multiple applications, such as powering various industrial devices or equipment. This feature makes it an ideal choice for any type of project requiring reliable and efficient power.
• 【Active PFC Function】The Active PFC Function helps to reduce energy losses, thereby improving the efficiency of the power supply, and the 150% peak load output for 3 seconds provides a more stable output in cases where sudden power spikes may occur.
• 【Higher level of security】The AC/DC Din Rail Power Supply offers a wide range of protections for ultimate safety, including short circuit, over-current, over-voltage, and over-temperature protection, ensuring reliable and secure power for any industrial application.
• 【Support Din-rail Installation】The Din rail power supply features effortless installation and offers great convenience in usage. The operation for users is swift, which helps users save a substantial amount of time.
