Jetson Nano Metal Case with 5V Cooling Fan Compatible with Jetson Nano Developer Kit B01 (4GB),with Camera Holder Reset,Power Button,for Waveshare IMX219 Series Camera,Wireless-AC8265

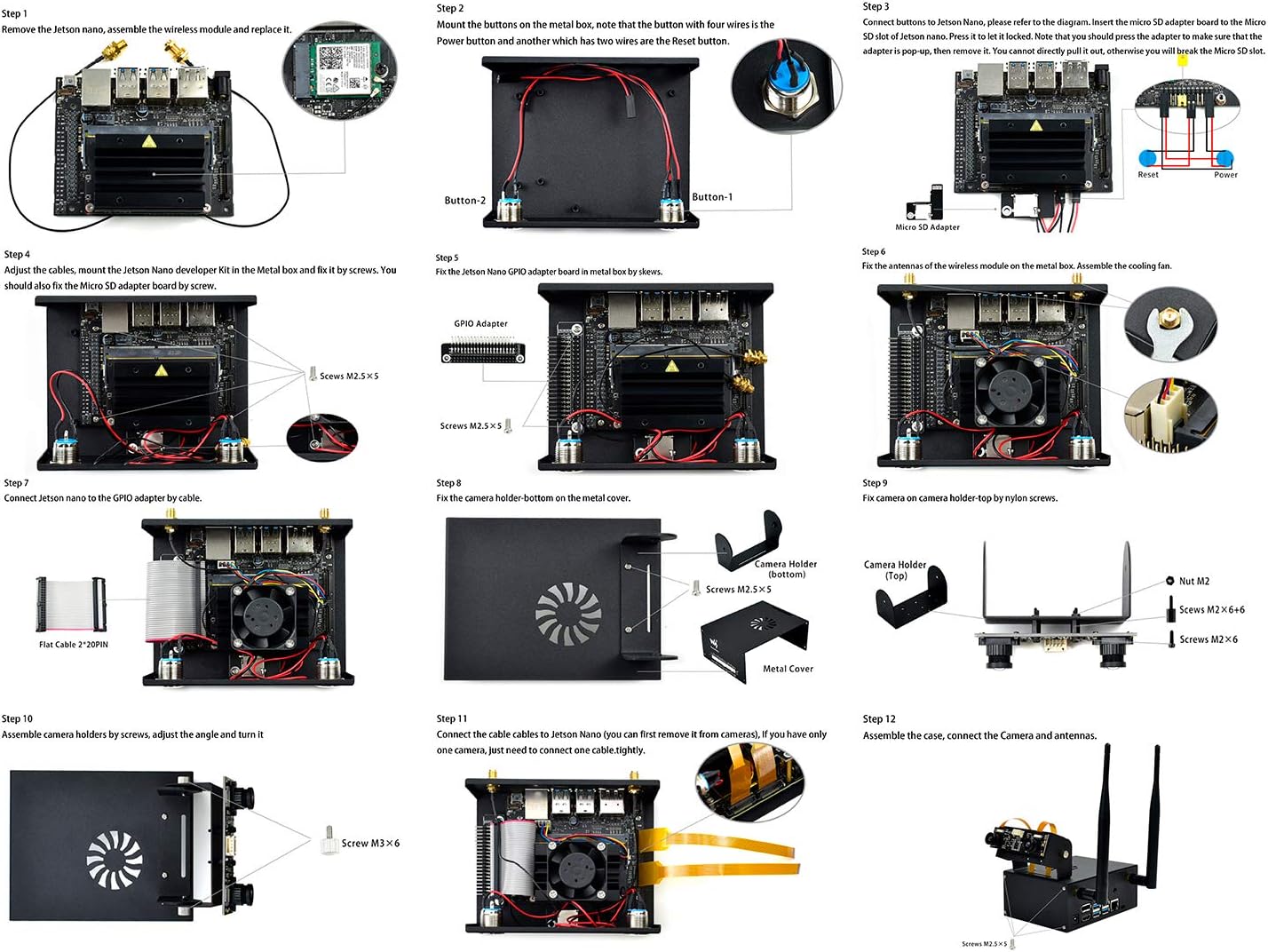

Assembly Steps: Check the components before assembling. 1.Remove the Jetson nano, assemble the wireless module and replace it. 2.Mount the buttons on the metal box, note that the button with four wires is the Power button and another which has two wires are the Reset button. 3.Connect buttons to Jetson Nano, please refer to the diagram. Insert the micro SD adapter board to the Micro SD slot of Jetson nano. Press it to let it locked. Note that you should press the adapter to make sure that the adapter is pop-up, then remove it. You cannot directly pull it out, otherwise you will break the Micro SD slot. 4.Adjust the cables, mount the Jetson Nano developer Kit in the Metal box and fix it by screws. You should also fix the Micro SD adapter board by screw. 5.Fix the Jetson Nano GPIO adapter board in metal box by skews. 6.Fix the antennas of the wireless module on the metal box. Assemble the cooling fan 7.Connect Jetson nano to the GPIO adapter by cable. 8.Fix the camera holder-bottom on the metal cover. 9.Fix camera on camera holder-top by nylon screws. 10.Assemble camera holders by screws, adjust the angle and turn it tightly.. 11.Connect the cable cables to Jetson Nano (you can first remove it from cameras), If you have only one camera, just need to connect one cable. 12.Assemble the case, connect the Camera and antennas. For more information about Assembly, please check in the wiki： https://www.waveshare.com/wiki/Jetson_Nano_Case_(C)?Amazon Package Content 1.Body case (top and bottom) 2.Camera holder bottom mount 3.Camera holder top mount 4.Jetson Nano adapter board 5.Micro SD card adapter board 6.Flat ribbon cable 2*20PIN 7.Spanner 8.Screwdriver 9.Button with 2PIN wires 10.Button with 4PIN wires 11.Screws pack 12.Jumper 13.Fan-4020-PWM-5V x1

• This Kit includes Jetson Nano Metal Case and Fan-4020-PWM-5V. The case can be compatible with Jetson Nano Developer Kit Both of the original version and B01 version. The Fan is Dedicated Cooling Fan for Jetson Nano,5V, PWM adjustment, Strong Cooling Air

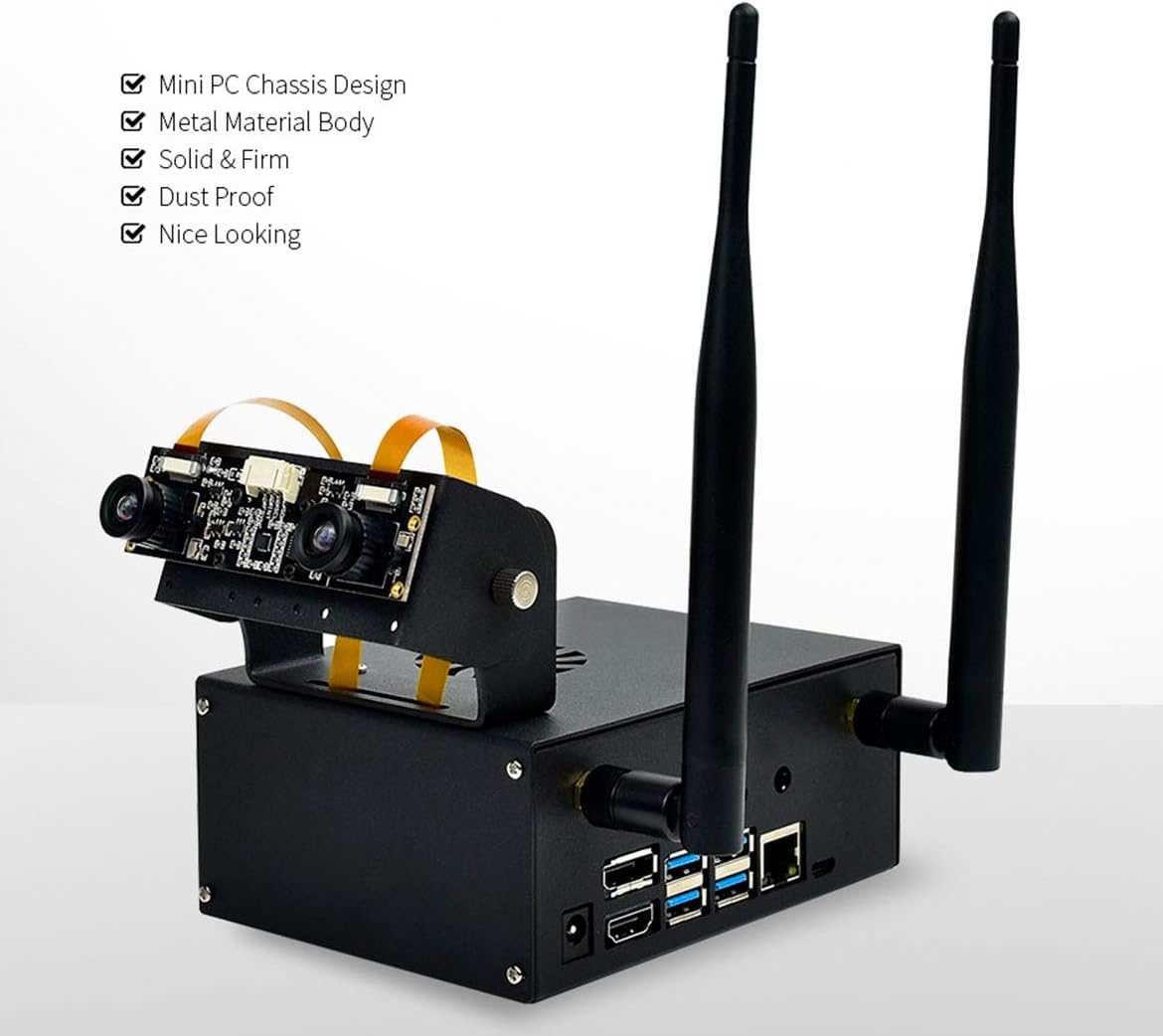

• This case has Special camera holder,Mounting holes for single camera or binocular camera, up to 180° roll angle. Recommendation: Single Camera(Waveshare IMX219 Series Camera),Binocular Camera
• Invisible Cooling Fan: Heat dissipation through the airflow vent on the top, more elegant design. Fan-4020-PWM-5V is included.
• RESET and POWER buttons: with system status indicator (B01 only, NOT available for the original version). Enabling the 4G Communication:Allows installing 4G module inside. Recommendation: SIM7600G-H 4G for Jetson Nano
• Precise opening design： Cut-outs for GPIO header, TF card, and peripheral ports. Recommendation: Wireless NIC with Dual Antennas----Wireless-AC8265
