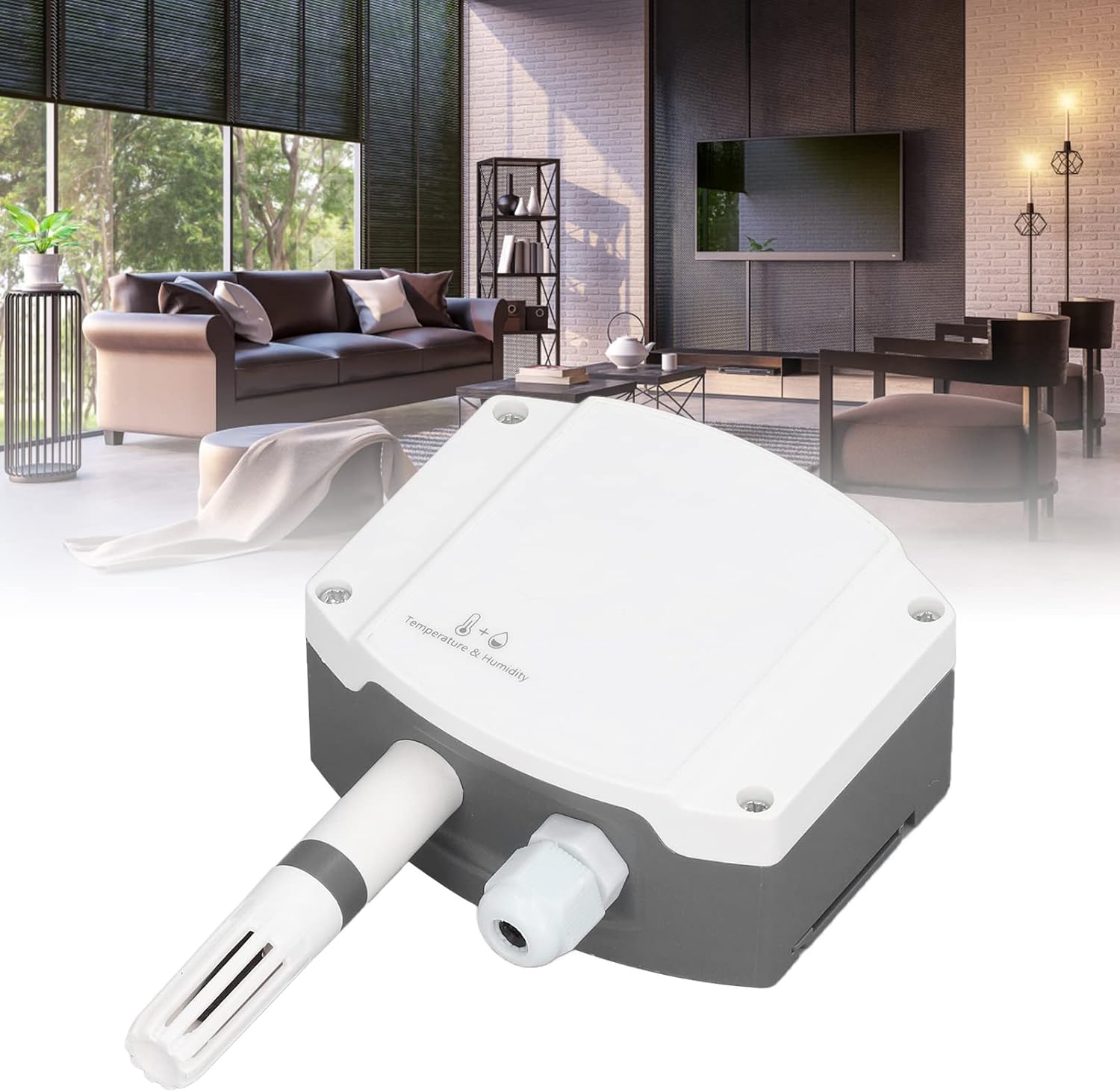

Wall Mounted Temperature Humidity Sensor 4 to 20mA Analog Temperature Humidity Transmitter Humidifier Accessories for Garden
4.1 (31 items)
Limited Time Sale$20.27 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217599352 | Release Date | 2026/04/19 | List Price | $13.51 | Model Number | 217599352 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Item Type: Temperature Humidity TransmitterMaterial: ABSProduct Size: Approx. 147 x 88 x 41 mm / 5.8 x 3.5 x 1.6 inAnti Dust Grade: IP65Power Supply Wiring: Wide voltage 10~30V DC power inputOutput Interface Wiring: The device is equipped with 2 independent analog outputs as standardWeight: Approx. 157g / 5.5ozSpecific Wiring:Circuit Identification Instruction Power Supply VCC Power Supply GND Negative Power Supply Output TH Temperature RH Humidity (Note: The device does not provide a communication line by default) Parameter:DC Power Supply (Default) DC 10~30V Maximum Power Consumption Current Output 1.2W Voltage Output 1.2W A Accuracy Humidity ±2%RH (60%RH，25℃) Temperature ±0.4℃)25℃) B Accuracy Humidity ±3%RH (60%RH,25℃) Temperature ±0.5℃ (25℃) Temperature Range -40℃~+120℃, default -40℃~+80℃ Humidity Range 0%RH-100%RH Transmitter Circuit Working Temperature And Humidity -20℃~+60℃, 0%RH~95%RH A9:(non B25condensing) Probe Operating Temperature -40℃~+120℃, default -40℃~+80℃ Probe Working Humidity 0%RH-100%RH Long Term Stability Humidity ≤1%RH/y Temperature ≤0.1℃/y Response Time Humidity ≤8s(1m/s wind speed) Temperature ≤25s(1m/s wind speed) Output Current Output 4-20mA Load Capacity Voltage Output Output resistance≤250Ω Current Output ≤600Ω Hole Size 70mm/2.8in Parameter Settings Set By Software Product Model:RS- Company Codes WS- Temperature And Humidity Transmitter, Sensor 120- 4~20mA Current OutputPackage List:2 x Screw2 x Expansion Tube1 x Transmitter1 x Manual
- High Accuracy: The circuit adopts industrial grade microprocessor chips and high accuracy temperature and humidity sensors to ensure reliability, high accuracy and interchangeability. A practical tool for you
- 4~20mA Analog Output: Adopt standard industrial interface 4~20mA analog output, can be connected to on site digital display, PLC, inverter, industrial control host and other equipment
- Material: Made of ABS material, sturdy, small in size, using a dedicated analog circuit, high accuracy temperature and humidity measurement unit. Its quality is guaranteed
- And 10 to 30V wide voltage range input power supply, and reliable, beautiful appearance, easy to install, can be wall mounted or rail mounted. Can be used with peace of mind
- IP65 Dust Industrial wall mounted high grade housing, IP65 dust grade, rain and snow and good air permeability. Meet your needs
| Item Weight | 5.3 ounces |
|---|---|
| Manufacturer | Walfront |
| Item model number | Walfrontcpno6t9085 |
| Batteries required | No |
| Package Dimensions | 6.81 x 4.06 x 2.2 inches |
