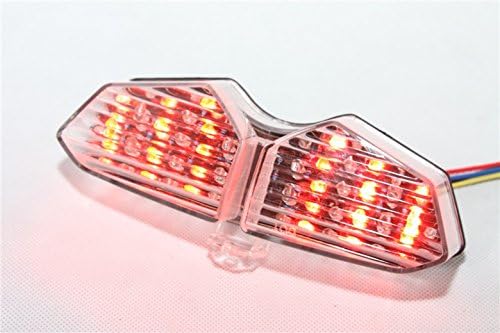

Led Tail Brake Light for Yamaha Yzfr6 R6 2003-2005 Yzf-R6S R6S 06-08 Clear

Integrated LED Tail light: Material: High Quality ABS PlasticLens Color: the same like pictures showNo installation guideOperating Voltage: 12VApproximate Dimensions: 6 5/8" x 2 1/2" x 2 3/4" (Width x Height x Depth) measured at normal mounting position including housing.Direct replacement for factory tail lightsWire Diagram (by color): -------- Black = Ground Wire -------- Red = Brake Light -------- White = Running Light -------- Yellow = Right Turn Signal -------- Blue = Left Turn Signal NOTE: The BLACK(ground wire), RED(break light) and WHITE(running light) wires must be inserted into the (white) wire clip provided and plugged into motorcycle wire clip. Tail Light Fitment: for Yamaha YZF R6 2003-2005 for Yamaha YZF-R6S 2006-2008for Yamaha XTZ 1200 2012-2014

• Material: High Quality ABS Plastic
• Lens Color: the same like pictures show ,100% Brand New and tested before shipping
• no installation guide
• Operating Voltage: 12V
• Dimensions: 6 5/8" x 2 1/2" x 2 3/4" (Width x Height x Depth) measured at normal mounting position including housing.,Direct replacement for factory tail lights,Wire Diagram (by color): 1. Black = Ground Wire 2. Red = Brake Light 3. White = Running Light 4. Yellow = Right Turn Signal 5. Blue Left Turn Signal
