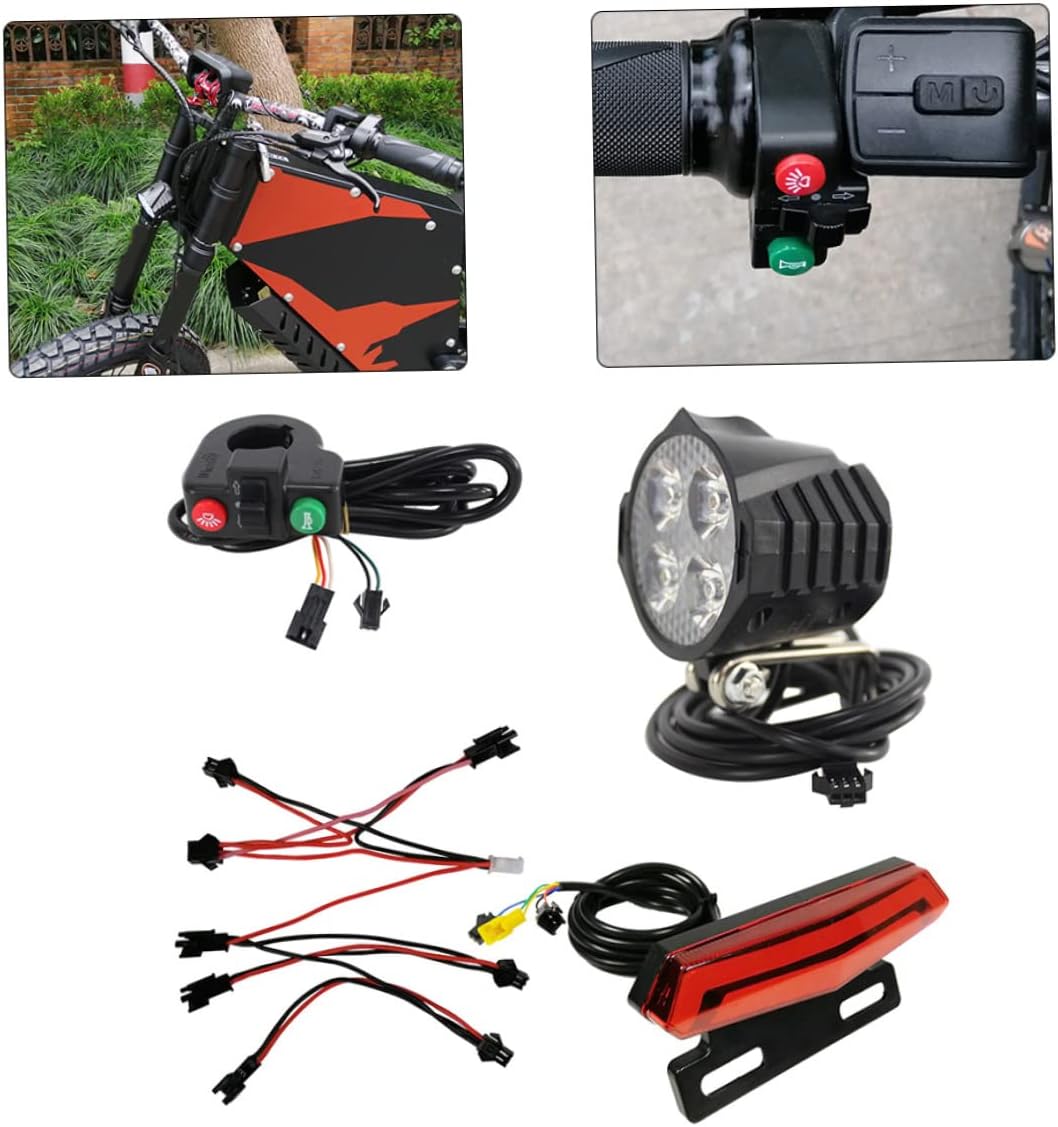

E-Bike Headlight Taillight Electric Light Group Front Light Tail Light Horn Black Set Sport Outdoor Use

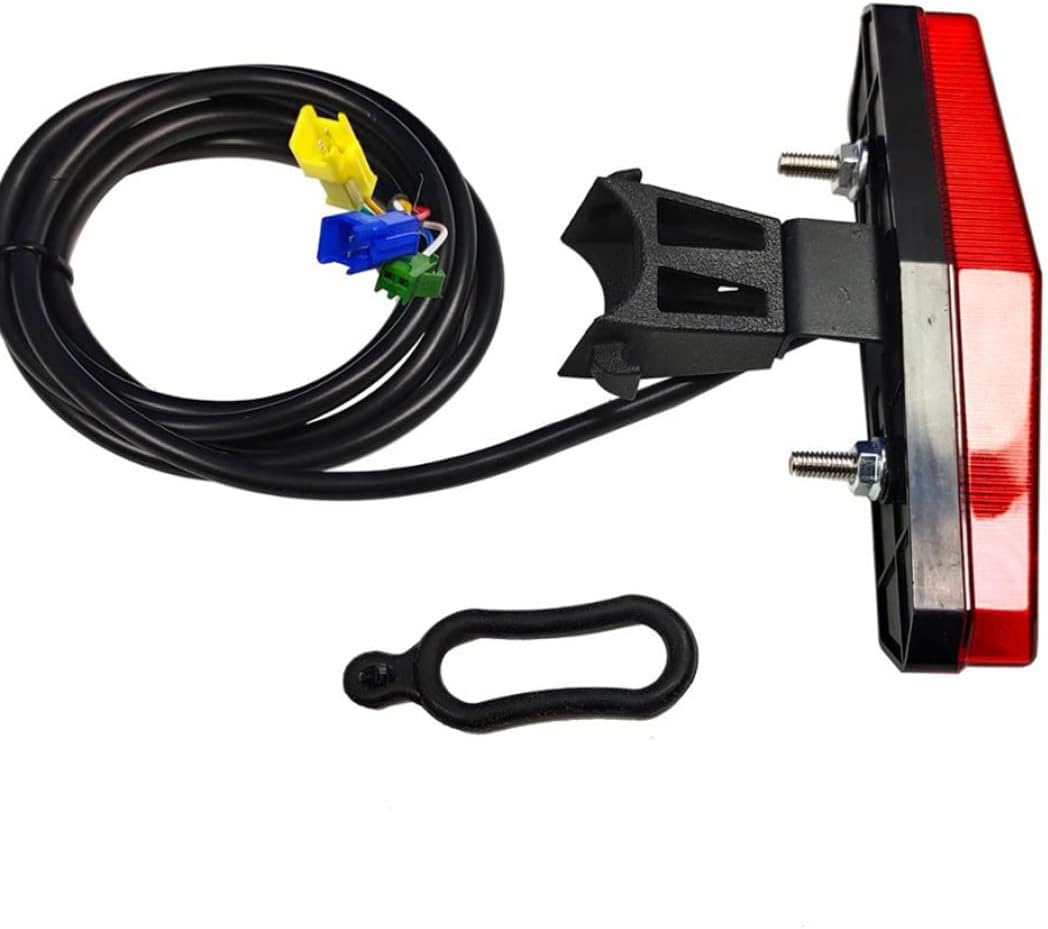

Description The visibility of E-Bike Headlight Brake Taillight Steering is higher and the visual distance is further. With 4 pieces premium LED lamp beads, the illumination area of Electric Bike Brake Taillight Steering is larger. Life waterproof, not soaked in water. Please dry Electric Bike Light Set in time if get wet when it rains. Features E-bike headlight taillight -Color: Black. -Material: Plastic. -Size: 7.87x7.87x3.94inch. Headlight parameters: Code: DZ0006 1. Net weight of headlight: 100g 2. material: plastic 3. Applicable voltage range: 12V-60V 4. Power: 59mA/2.8W 5. Luminous flux: 180-220LM 6. Speaker power: 44mA/2.1W 7. Speaker volume: 80-100dB 8. Wire sequence: Red-Horn+ Black-GND Green-Lamp+ 9. certification: CQC19134228086 10. Product size: 62*50*70mm 11. Cable length: about 1.5M Taillight parameters: Code: DZ0275 1. Net weight of taillight: 120g 2. material: plastic 3. Applicable voltage range: 12-80V 4. Power: 1.5W 5. Number of light sources: 14 6. Luminous flux: 15LM 7. Line sequence: Taillight power supply=red+/black- Brake light power supply: blue+/white- Turn: yellow right+/green left+ 8. Product size: 132*65*40mm 9. certification: CQC19134228085 10. Cable length: about 1.5M Switch parameters: Code: DZ0002 1. Switch net weight: 92g 2. material: plastic 3. Line sequence: White = driving light output + Red = power input + Yellow = speaker output + Product size: 26*53*61mm Cable length: about 1.5M Light group connection line: Code: DZ0009 1. Product net weight: 13g 2. Wire specification: 22AWG high temperature resistant soft silicone wire 3. Length after folding: 140mm Package Including 1 * E-Bike Headlight Taillight

• Horn of Electric Bike Light Set: When the horn button is pressed, the horn starts to work, release it to cancel
• Electric Head Light with high strength, abrasion resistant and heat resistant
• Driving lights of E-Bike Headlight Taillight: When the driving lights switch is turned on, the headlights and tail lights are on
• Turn of Electric Bike Tail Light: When the turn switch of the designated direction is toggled, the turn of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each time
• Brake light of Electric Lamp Set: When the brake line and the controller brake low voltage are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelled
