Prewired Guitar Wiring Harness Kit for Stratocaster with SSH Pickups, ๐พ๐ค๐๐ก ๐๐ฅ๐ก๐๐ฉ ๐๐ช๐ข๐๐ช๐๐ ๐๐ง๐จ via 3-way Mini Toggle Switch, with DIY Guitar Neccessory Included, Gold/black
4.4 (34 items)
Limited Time SaleUntil the end
04
17
00
$15.88 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $26.47
Product details
| Management number | 218039770 | Release Date | 2026/05/03 | List Price | $10.59 | Model Number | 218039770 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ๐จ๐ฃ๐๐ฅ๐๐๐ ๐๐จ๐๐ง๐๐ฅ ๐ง๐ข๐ก๐ - fits Fender & Squier Strat or your partscaster guitar with HSS pickup configuration, the DPDT 6 pin 3 position mini switch split your bridge humbuckers into 2 different single coil pickups
- ๐ฃ๐ฅ๐๐ช๐๐ฅ๐๐ ๐ค๐จ๐๐๐๐ง๐ฌ ๐๐๐๐๐ง๐ฅ๐ข๐ก๐๐๐ฆ - A250K &B250K brass split shaft pots in full size/18 splines, orange look .022uF capacitor - provide consistent tone, smooth 5-way blade switch, 3-way on/off/on mini toggle switch
- ๐๐๐ฆ๐ฌ ๐๐ก๐ฆ๐ง๐๐๐๐๐ง๐๐ข๐ก - with a little soldering skill to connect your pickups onto the prewired harness kit, and connect the output jack, just follow the colored wiring diagram
- ๐๐๐ ๐ฃ๐๐๐ฌ๐๐๐๐๐๐ง๐ฌ - the 5-way switch keeps your pickups with 5 controls, while the 3-way toggle switch split your humbucker into 2 different single coil - the north pickup and the south pickup separately, an add on for your HSS guitar DIY kit
- ๐ฆ๐๐ฉ๐ ๐ฌ๐ข๐จ๐ฅ ๐ง๐๐ ๐ - help you build a better guitar, with all the electronics were pre-wired, you no need to solder tiny wires onto tiny loops, as all the solder joints were done professionally by skilled person - you can feel from the appearance of workmanship

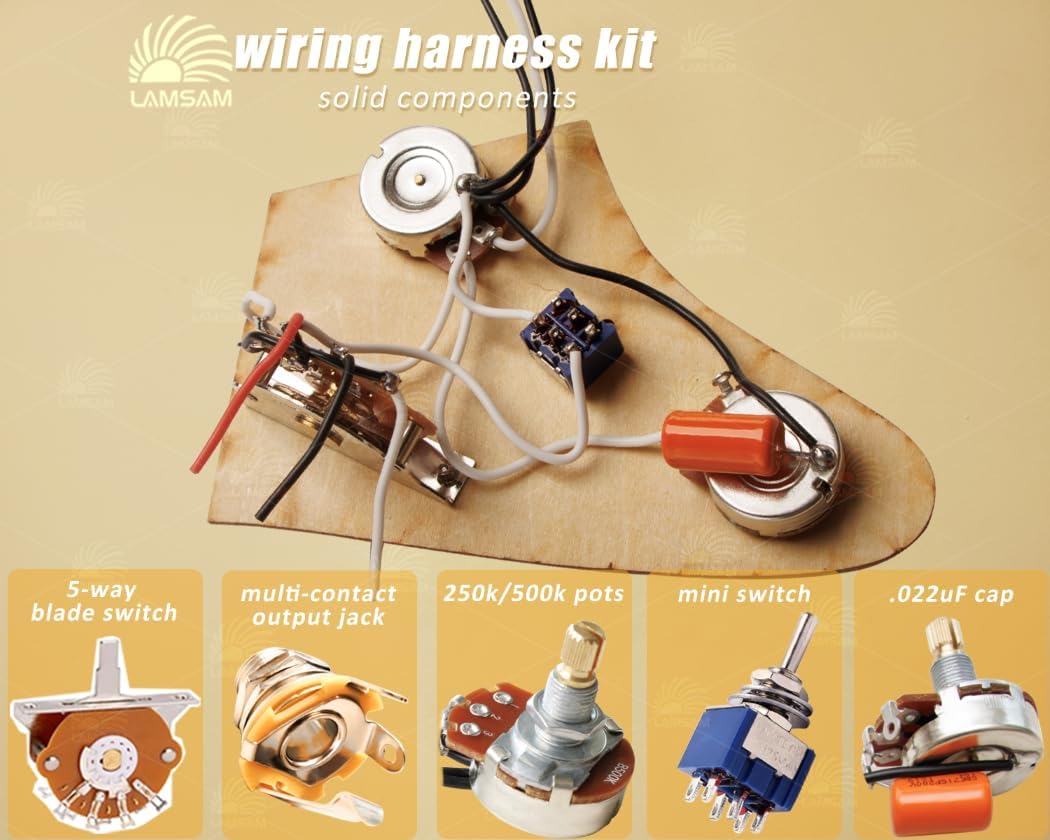

- ๐ฃ๐๐๐๐๐๐ ๐๐ก๐๐๐จ๐๐๐ - the pre-soldered the following guitar electronics together: 1 x American style 5-way blade switch with tip; 2 x 24mm 250k series 18 splines potentiometers; 1 x .022uF orange capacitor; 2 x stylish control knobs; 1 x 3-way mini toggle switch; 1 x 1/4" mono output jack; 1 x wiring diagram
| UPC | 607604956155 |
|---|---|
| Color | black/gold |
| Set Name | Stratocaster SSH Set |
| Brand Name | LAMSAM |
| Instrument | guitar |
| Model Name | GU247 |
| Item Weight | 80 Grams |
| Manufacturer | Key-tech |
| Model Number | GU247 |
| Material Type | Brass, Plastic |
| Connector Type | 1/4" mono output jack |
| Item Dimensions | 5.1 x 1.7 x 3.5 inches |
| Hand Orientation | Right |
| Number of Strings | 6 |
| Top Material Type | Alder Wood |
| Back Material Type | Alder Wood |
| Body Material Type | Alloy Steel |
| Neck Material Type | Maple |
| Included Components | 5 way blade switch, on-off-on mini switch, output jack, potentiometers |
| Guitar Bridge System | Fixed |
| String Material Type | Alloy Steel |
| Warranty Description | 1. |
| Manufacturer Part Number | GU247 |
| Guitar Pickup Configuration | H-S-S |
