20Pcs B100K Mini Guitar Pots 15mm Knurled Split Shaft 3 Pin Guitar Potentiometer for Electric Guitar Bass Replacement

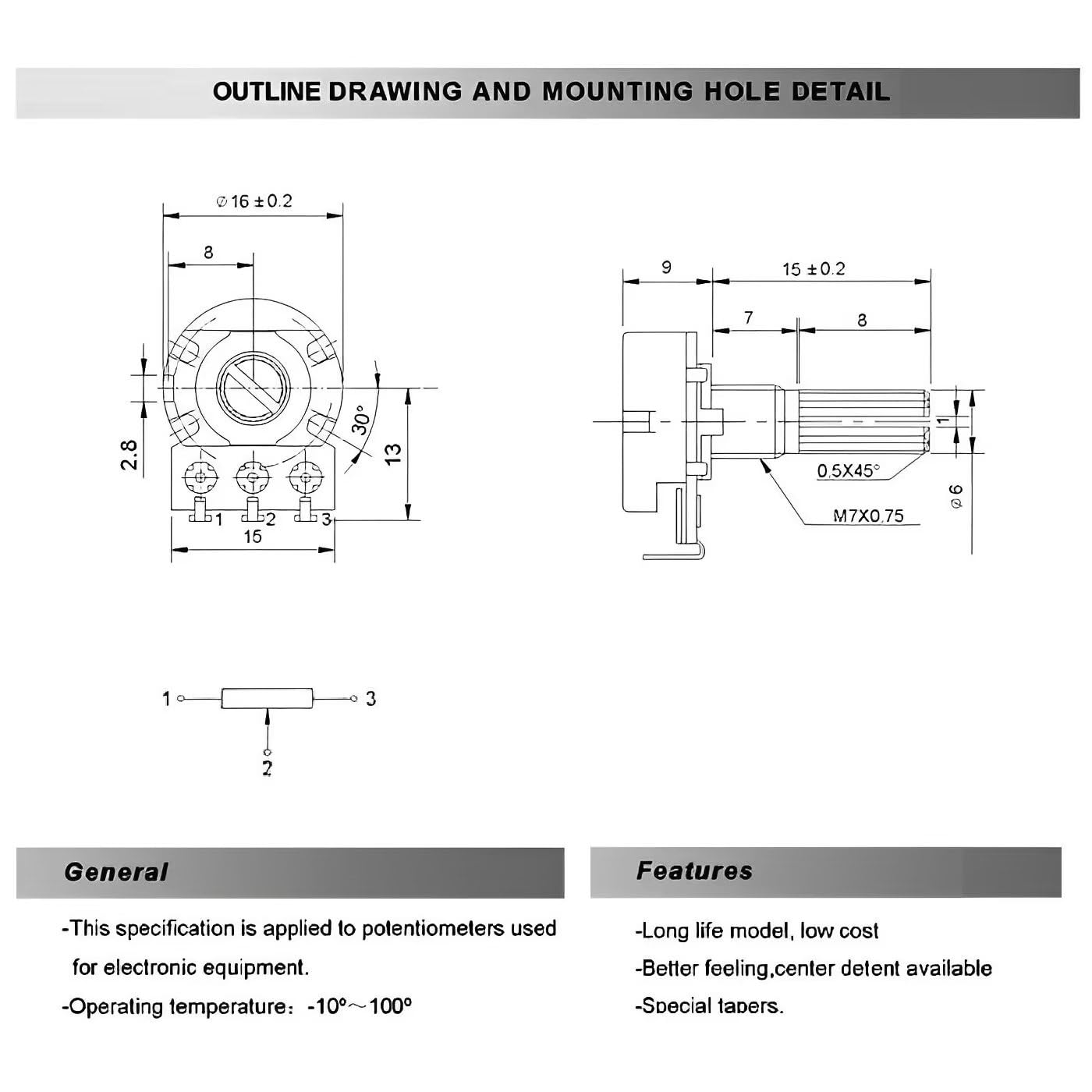

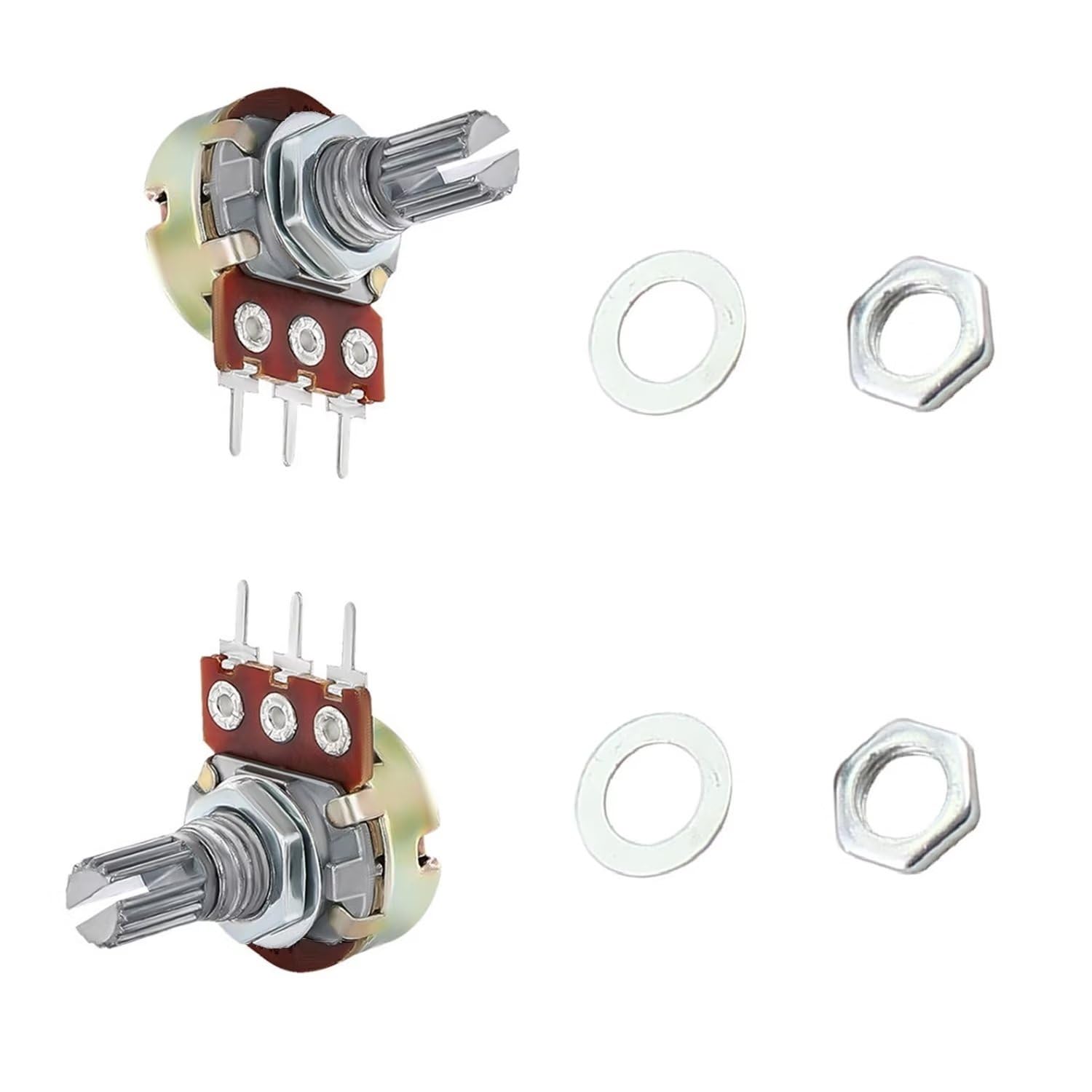

Electrical Characteristics Resistance (Ohms): B100K ohm Termination Style: 3 Solder Lugs Tolerance: 20% Taper: Linear Number of Turns: 1 Adjustment Type: Top Adjustment Actuator Type: Knurled and Slotted Actuator Length: 0.59" (15mm) Actuator length is the distance traveled when turning the actuator Actuator Diameter: 0.236" (6mm) Size - Body: Round - 0.629" (16mm) Bushing Thread: M7 x 0.75 Resistive Material: Carbon Mounting Type: Panel Mount Residual Resistance: R > = 250K ohm, 0.1% max. of total resistance 250K ohm > R > 10K ohm, 20 ohm max. 10K ohm > = R, 10 ohm max. Insulation Resistance: more than 100M ohm at DC 500V Number of Gangs: 1 Gang Error: -40 ~ 0 dB <= 3 dB (specialty: -60 ~ 0 dB <= 1.5dB) Mechanical Characteristics Total Rotational Angle: 300 Centigrade + - 5 Centigrade Rotational Torque: 30~200gf.cm Rotation Stopper Strength: 7kgf.cm Push Pull Strength: 7kgf.cm Package Content 20Pcs Audio Guitar Pots + 20Pcs Nuts + 20Pcs Washers

• Pot Resistance: B100K ohm
• Adjustment Type: Top Adjustment
• Actuator Dimension: 0.236(6mm) diameter, 0.59" (15mm) length
• Base Diameter: 0.629" (16mm)
• Audio Taper (A) (logarithmic) increases or decreases in a sloped curve; Linear Taper (B) (linear) increases or decreases linearly; Audio Taper (A) always acts as tone and Linear Taper (B) always acts as volume, but Audio Taper and Linear Taper can replace the role of the each other.
