uxcell 51118 Miniature Thrust Ball Bearing 90mm x 120mm x 22mm Chrome Steel with Washer

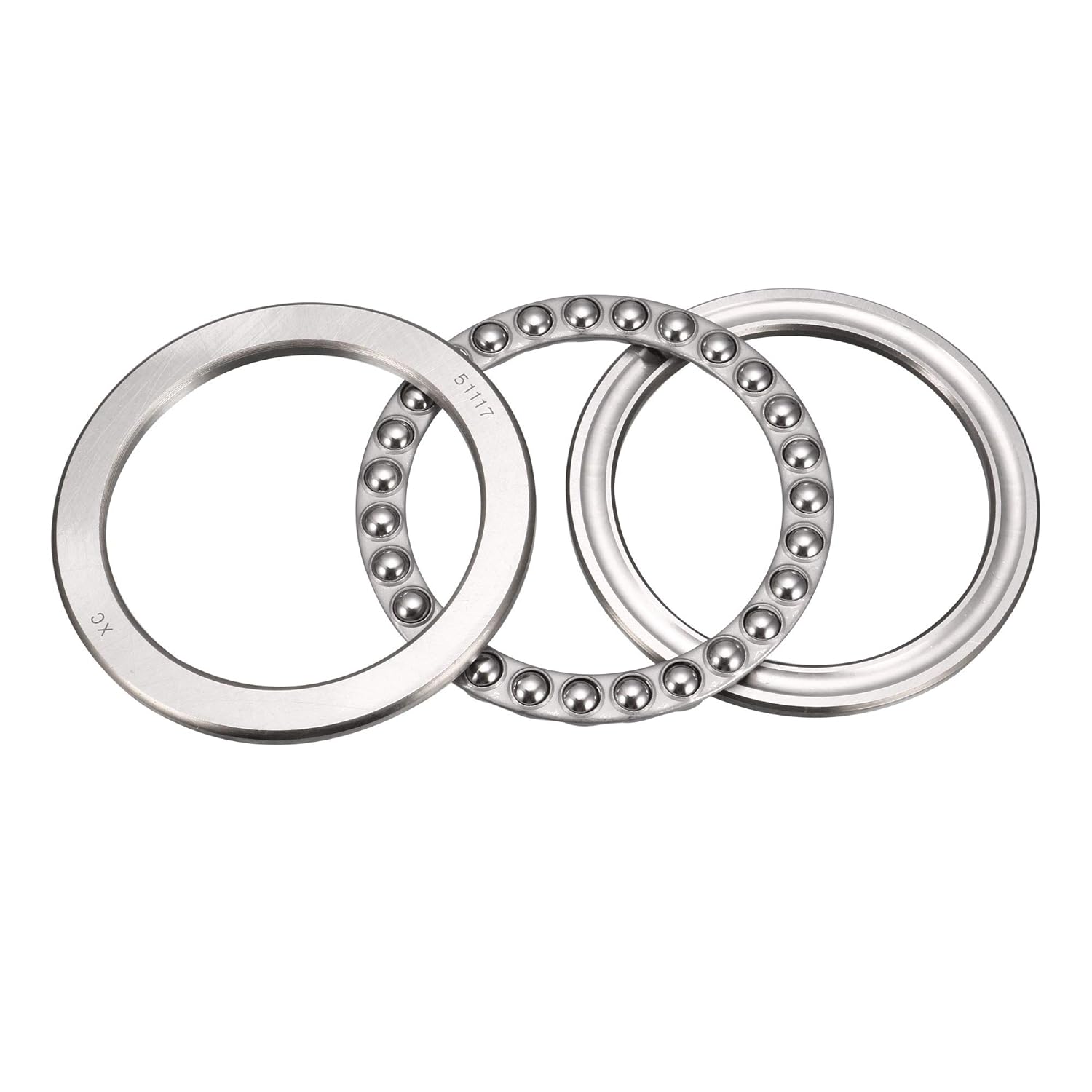

Description:The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.Specification:Model: 51118Shaft/Housing Washer Material: Chromium Steel (GCr15) Bearing Ball Meterial: Chromium Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 90mmOutside Diameter (OD): 120mmThickness (B): 22mmDynamic Load Rating (Cr): 66500NStatic Load Rating (Cor): 177000NLimiting Speed (Grease): 1800rpmLimiting Speed (Oil): 2600rpmAccuracy Class: P0 (ABEC-1)Noise Level: Z1Number of Pack: 1 Pcs

• [SIZE] - Bore Diameter=90mm, Outer Diameter=120mm, Thickness=22mm
• [MATERIAL] - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Steel cage
• [CAPABILITY] - Dynamic Load Rating (Cr): 66500N; Static Load Rating (Cor): 177000N; Limiting Speed (Grease): 1800rpm, designed for low speed operation and axial loads only
• [APPLICATION] - Can be used for oven turntable, jack, pump, rotating applications, machine tools, automobiles, ect.
• [FEATURES] - The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time
