Heart Horse Bus Bar Terminal Block, Power Stud Battery Junction Post 1/4" Power Distribution Block Positive Negative for Truck RV Boat, Dual Power Stud DC 48V 250A (Red & Black Set)
4.5 (83 items)
Limited Time Sale$5.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218076232 | Release Date | 2026/05/03 | List Price | $4.00 | Model Number | 218076232 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

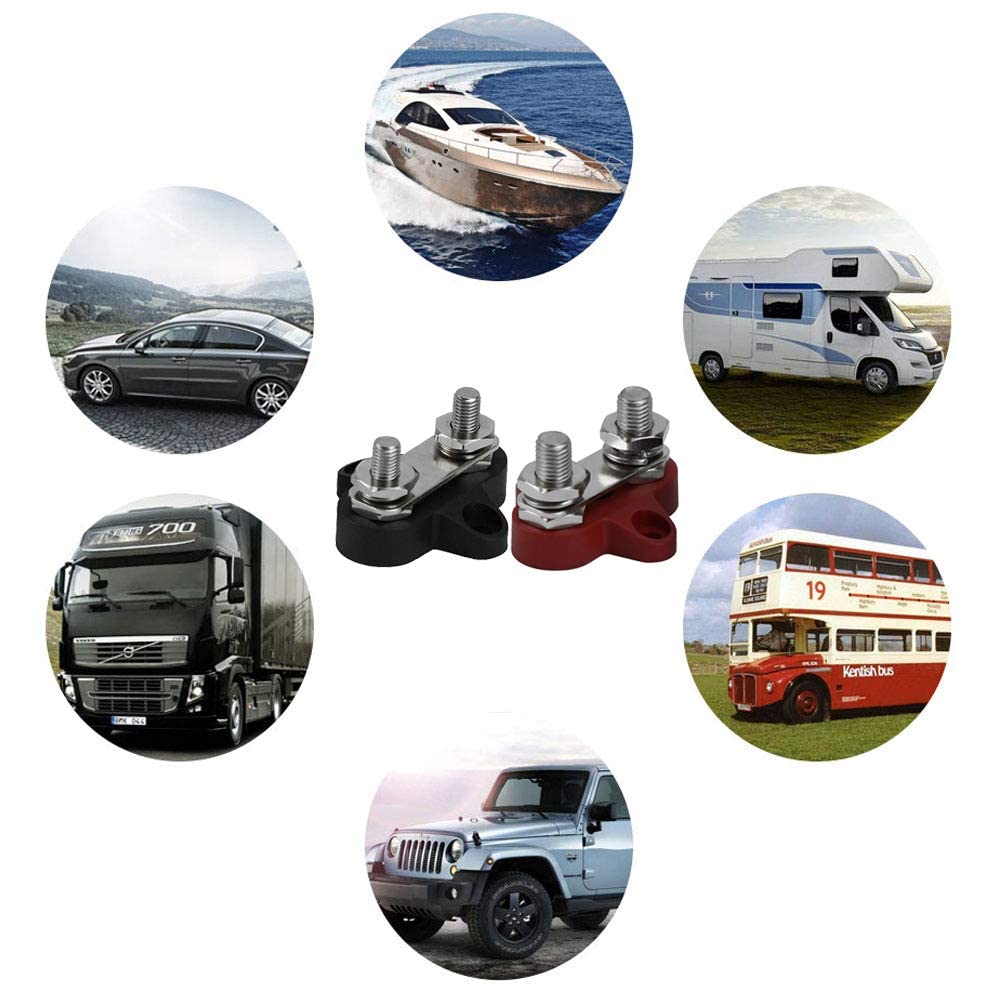

- 【Wide Applications】- The positive and negative power distribution block is useful for customizing vehicles or relocating batteries. Applicable to 12-48V trucks, RVs, boats,Trailers and other industrial equipment.
- 【High Quality】- Dual 1/4" stainless steel power stud, lock washer, and nut, which is sturdy and rust-resistant. The base is made of flame retardant plastic to protect your safety, ensures great mechanical strength and durability.
- 【Dimensions】- The battery junction block is measured 1.77" x 1.69" x 1.26"/45mm x 43mm x 32mm. Stud size: M6 x M6 (1/4"). Maximum amplifier per circuit: determined by the connected wires.Maximum working voltage: DC 48V & up to 250 Amp. Note: Please be gentle when tightening or the nut threads will strip out.
- 【Easy to Mount】- Junction Post's surface screw fixed installation, two mounting holes make this terminal block easier to be mounted in any orientation.
- 【Function】- Bus bar stud terminal block allow terminating of heavy-duty cables for one or more connections. Red and Black color allowing easy and clear color coding for wiring.
| UPC | 714046500133 |
|---|---|
| Color | Red & Black |
| Model | sku1419red+black-dy |
| Pitch | 0.25 Inches |
| Voltage | 48 Volts |
| Brand Name | Heart Horse |
| Unit Count | 2 Count |
| Part Number | sku1419red+black |
| Manufacturer | Heart Horse |
| Material Type | Stainless Steel |
| Mounting Type | surface |
| Connector Type | Screw |
| Current Rating | 250 Amps |
| Item Type Name | generic |
| Number Of Poles | 2 |
| Centerline Length | 1.77 Inches |
| Number Of Contacts | 2 |
| Included Components | Bus Bar |
| Number of Positions | 2 |
| Item Dimensions W x H | 1.77"W x 1.26"H |
