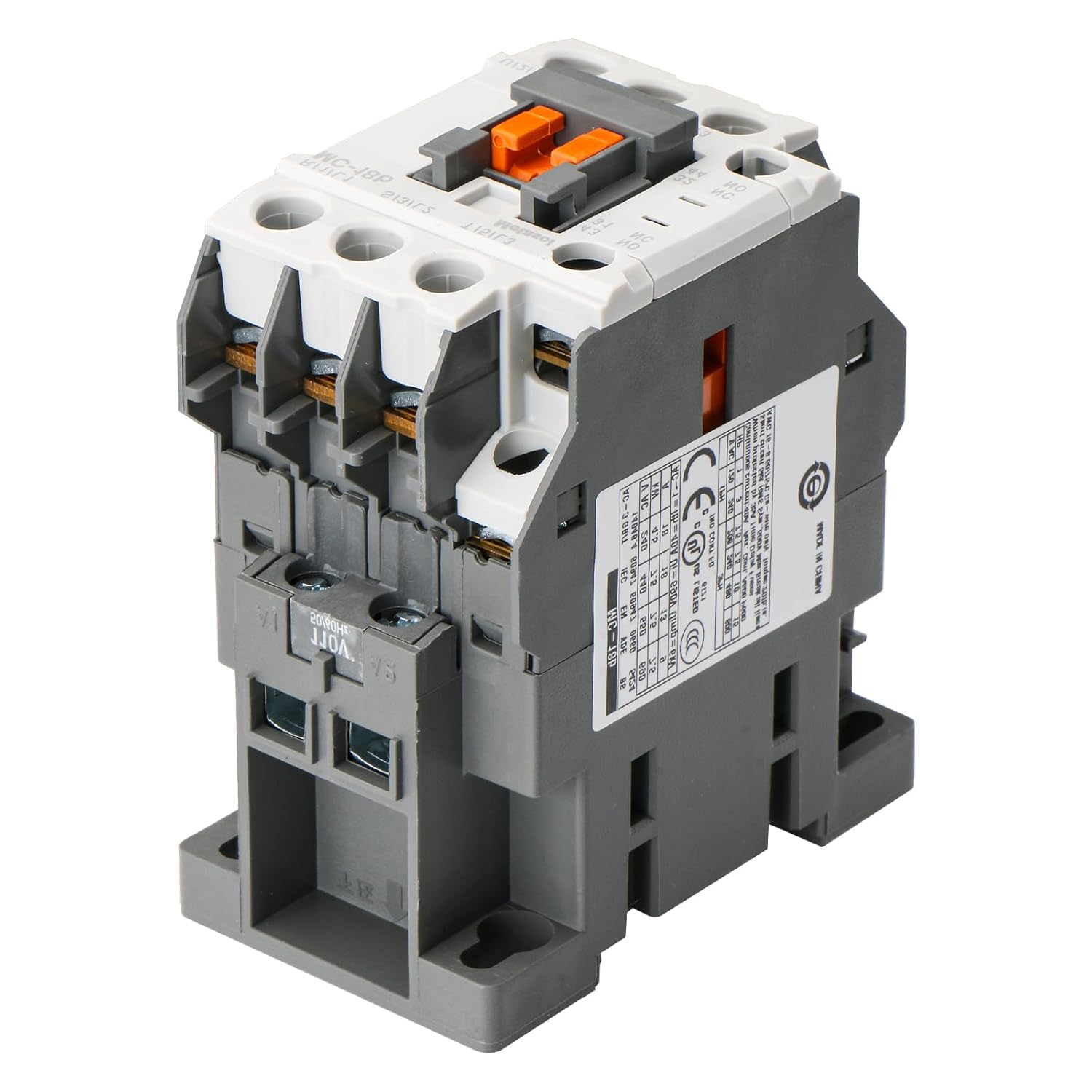

BAOMAIN MC-18b Magnetic Contactor - 3 Pole 40A Ith (18A AC-3) 110V/120V AC Coil, Heavy Duty Motor Starter with 1NO 1NC Auxiliary Contacts, UL Listed & CE Certified, 35mm DIN Rail Mount(110V-18b)

3-Pole Magnetic Contactor for Industrial Control The Magnetic Contactor is a UL-Certified 3-pole magnetic contactor for use in control of motors and resistive loads in industrial automation, control panels, and machinery. This component is engineered to electrical standards for 110V AC applications. Specifications:Conventional Heating Current (Ith):AC-3 (Motor Loads): 18A 110V ACAC-1 (Resistive Loads): 40A 110V ACCoil Voltage: 110V AC, 50/60HzMax. Continuous Current: 40AmpMain Contacts: 3 Poles, Normally Open (3NO)Auxiliary Contact: 1 Normally Open (NO) + 1 Normally Closed (NC) Rated Insulation Voltage (Ui): 690VRated Impulse Withstand Voltage (Uimp): 6kVMounting: Standard 35mm DIN RailTerminal Type: ScrewWire Size: 16-10 AWG Copper Wire OnlySafety Certifications: UL Certified, CE MarkedApplication:Control of three-phase motorsIndustrial machinery and pump controlHVAC system compressors and fansPower distribution and lighting control systemsAutomated equipment and control panelsInstallation Note: This product is a component for use in electrical installations. It must be installed, wired, and protected by a qualified electrician in accordance with all applicable local and national electrical codes (NEC). Proper short-circuit protection (e.g., fuses or circuit breakers) must be provided based on the load type and current rating.

• The MC-18b Metasol-style magnetic contactor is built for high-performance switching. With a 40A Conventional Thermal Current (Ith) and a rated operational current of 18A (AC-3 at 440V), it provides robust power control for 3-phase motors and large industrial loads.
• Engineered to meet global standards, this contactor is UL Listed, CE, and CCC certified. These rigorous certifications ensure superior electrical safety, fire resistance, and durability, making it a reliable choice for professional contractors and industrial facilities.
• Designed for complex control systems, it features built-in 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts (43/44 and 31/32). This allows for easy integration of status feedback, interlocking, or controlling secondary signaling circuits.
• Optimized for standard North American industrial control power, the 110V/120V AC coil ensures fast, chatter-free engagement. The high-quality electromagnetic core reduces vibration and noise, extending the mechanical life of the contactor.
• Features a compact footprint of 45mm (1.77") width and supports standard 35mm DIN rail mounting as well as screw mounting. Clear terminal marking (L1/L2/L3 & T1/T2/T3) and accessible wiring ports make installation and maintenance straightforward for any control panel.
