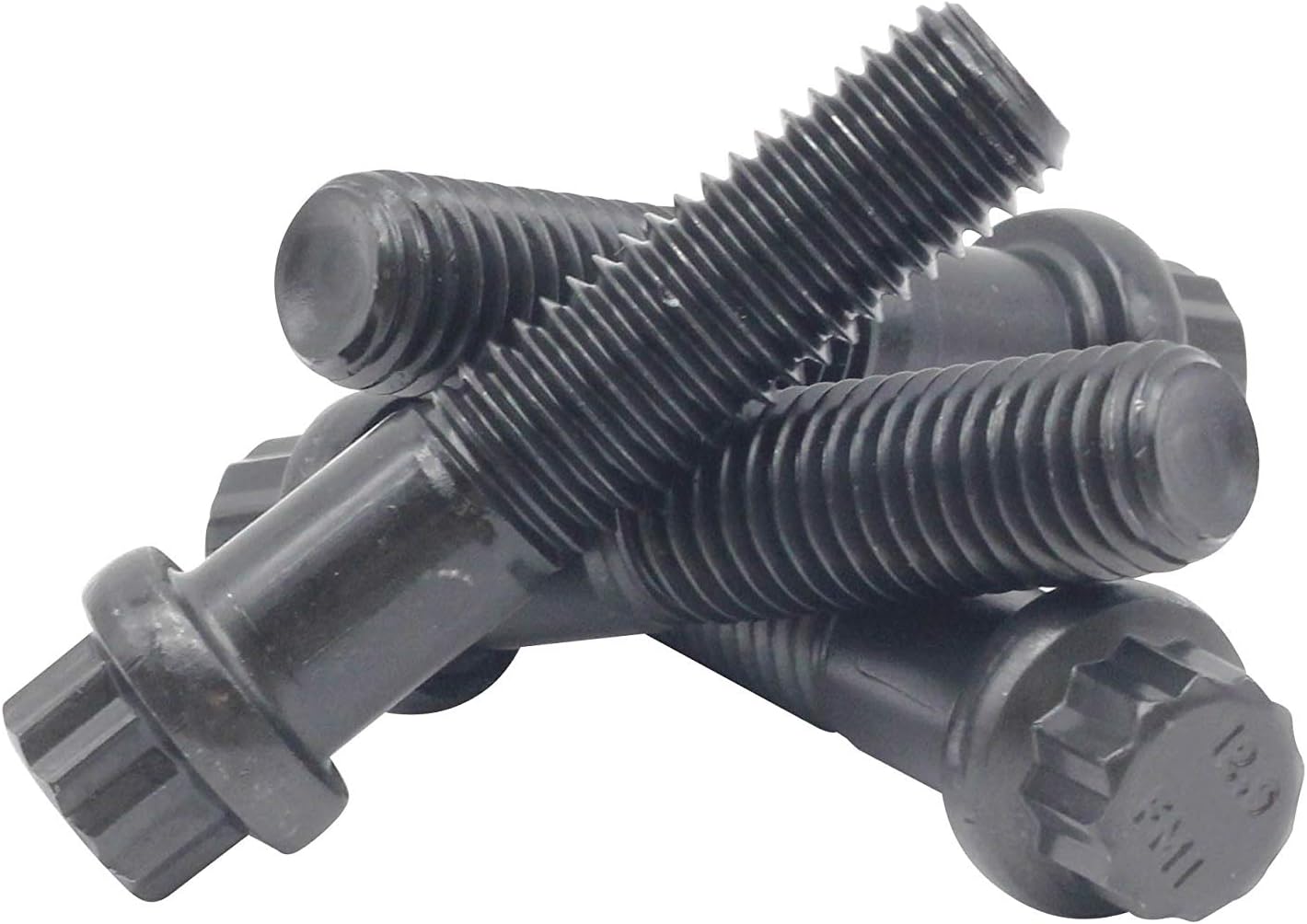

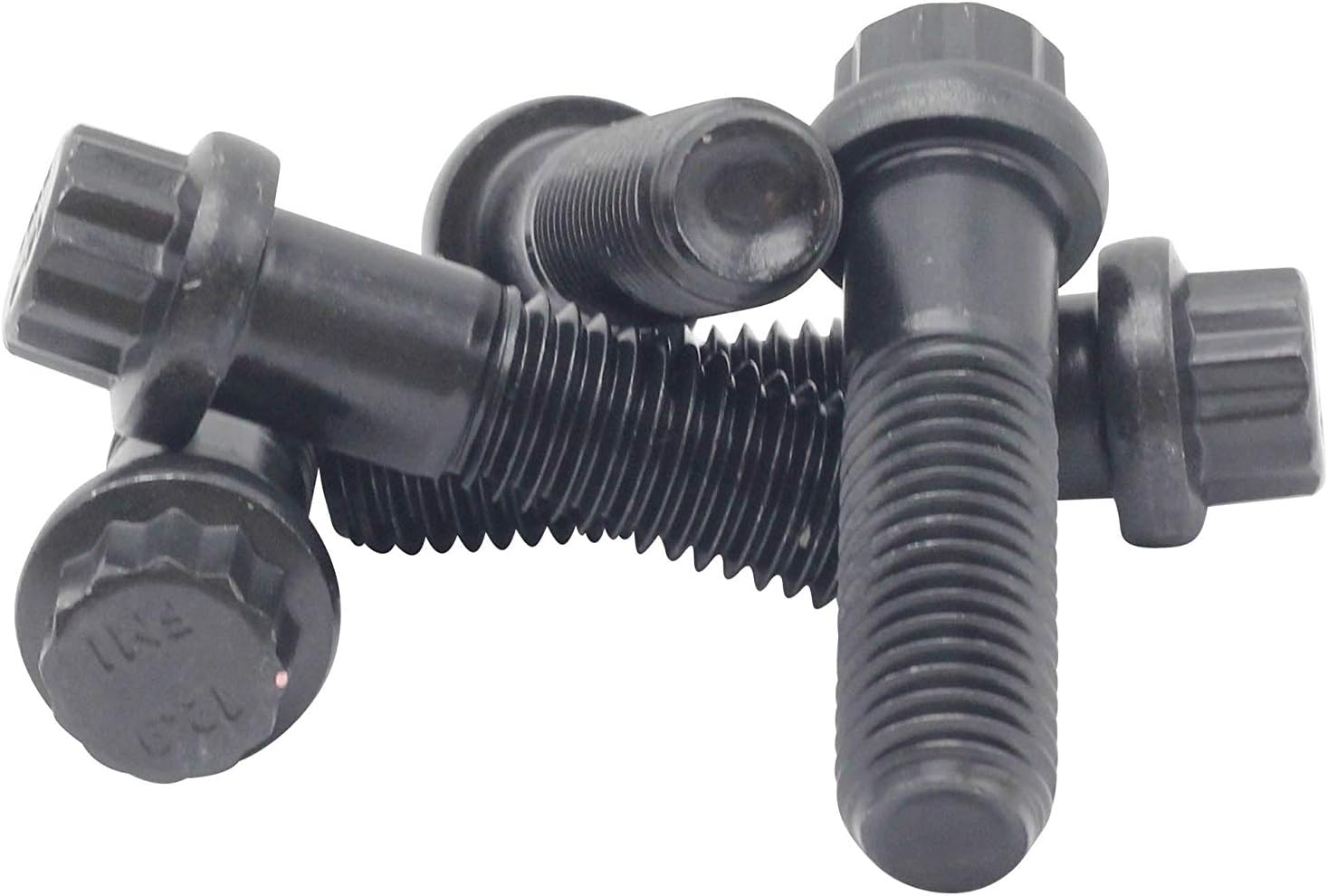

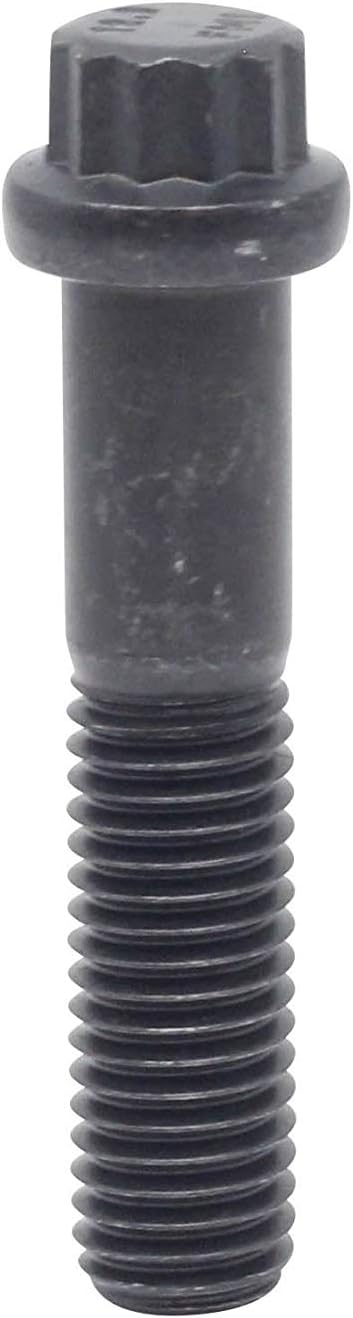

(4pcs) BelMetric M12X50 Metric External 12-Point Hardened 12.9 Flange Bolt, ASME-ANSI B18.2.5M, Black Phosphate, BTP12X50BLK-4
4.5 (52 items)
Limited Time Sale$15.16 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218106984 | Release Date | 2026/05/03 | List Price | $10.11 | Model Number | 218106984 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
M12X1.75X50, M12X1.75X50, M12X50 Metric External 12-Point-Hardened 12.9 Flange Bolt 12-Point flange bolts offer a good alternative to hex head bolts for high strength fastening. Features a non serrated smooth bottom flange. Diameter: 12mmPitch: 1.75 Coarse Thread Length Under Head: 50mm Approximate threaded length: 35mmApproximate un-threaded (shank) length: 15mm Wrench Size: 12mm 12-Point Wrench Reduced Flange Width: 17.95mm Total Head Height: 12.0mm (includes flange) ASME-ANSI B18.2.5M Full Thread Material: 12.9 Alloy Steel AISI4135 Finish: Black Phophate The reduced flange diameter makes it easy to fit these flange bolts in tight spaced or bored holes. Greater torque can be applied to these bolts because of 12-spline design, which provides more surface area for contact during tightening. Also known a twelve spline flange bolt, ferry cap screw, flange screw with 12 external radial corners. Qty: 4 Flange Bolts Per Package
- M12X1.75X50, M12X1.75X50, M12X50
- Non-serrated smooth bottom flange.
- Reduced Flange Diameter for Applications Tight on Space.
- 12-Spline Drive Design for Greater Torque
- Right Hand Threading
| Brand | Bel-Metric |
|---|---|
| Size Name | M12X50 (4pcs) |
| Part Number | BTP12X50BLK-4 |
| Thread Size | M12 x 50 |
| Manufacturer | BelMetric |
| Thread Style | Right Hand |
| Fastener Type | Hexagon Bolt |
| Material Type | 12.9 Alloy Steel AISI 4135 |
| Exterior Finish | Black Phosphate |
| Number Of Items | 1 |
| Screw Head Style | Hex |
| Manufacturer Grade | Grade 2 |
Hex Bolts
