TY28 6 Pin 25A Screw Connection Electrical Power Connector, Female Panel Mount Socket and Male Right Angled 90-Degree Cable Plug, Solder-Free Waterproof Quick-Disconnect for Marine Automotive
4.9 (81 items)
Limited Time Sale$13.50 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218128490 | Release Date | 2026/05/03 | List Price | $9.00 | Model Number | 218128490 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- TY28 6-pin waterproof free-solder screw crimp connector, easy for wire cable assembly
- Features Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance

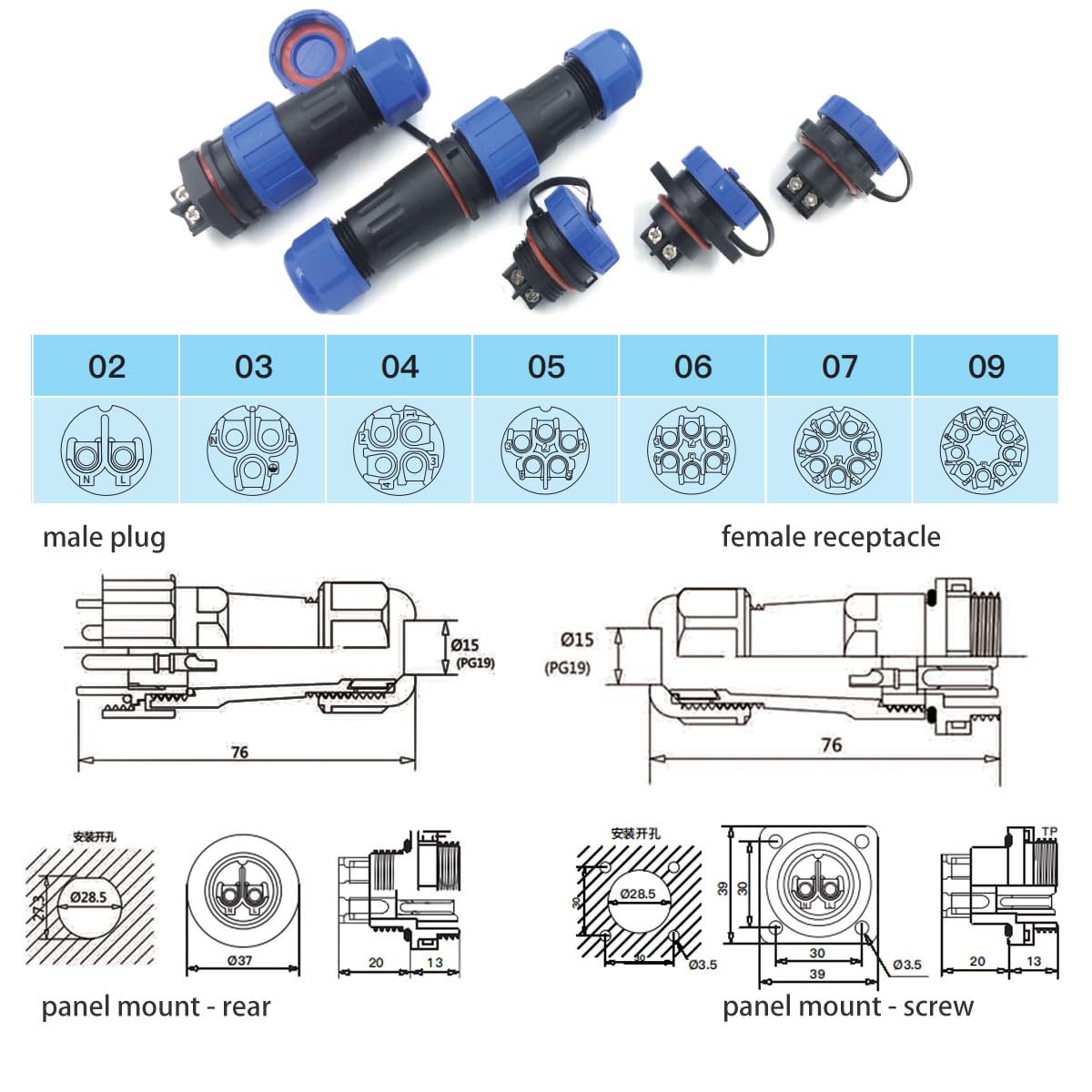

- Rear panel mount female socket and 90-degree angled cable plug with watertight cap. Panel cutout diameter is 28.5mm
- Rated Voltage/Current AC 380V / 25A, Contact resistance 1mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 10-15mm, Wire gauge 4mm² or 12AWG, Contact Diameter Φ2.8mm
- Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment
