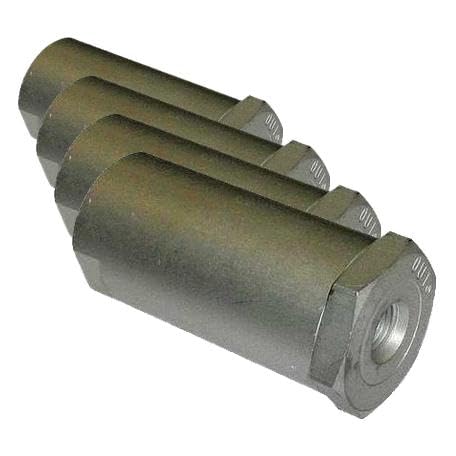

PneumaticPlus PP-9053V Hydraulic in-Line Filter 3/8" NPT, Viton Seal, 10 Micron, Up to 3,000 PSI

By using this filter at the pressure side of a pump, foreign particle 10 micron or larger, such as those created by pump wear, are removed before damage can result to the valving in the system. A sintered bronze element ensures protection against crushing should dirt accumulate and increase pressure drop across the element. The PP-9053V-10Series inline filter is used to protect high-pressure hydraulic systems up to 3,000 PSI. When installed at the pressure side of a pump, the sintered bronze filter element can trap all debris larger than 10um to prevent damage to the valves in the system. The conical shaped sintered bronze element is positioned by a retaining spring to allow true, uninterrupted axial flow while protecting against system crashing by increasing pressure drop across the filter. The strong yet lightweight anodized aluminum housing can be ordered with special viton O-rings for oil systems where chemical action or heat may be a problem for the standard Buna “N” O-rings. The filter element can be easily cleaned or replaced. Filter elements are also available in pore sizes of 25, 40 or 90 um.

• Maximum Operating Pressure: 3,000 PSI
• Operating Temperature: 35 F to 400 F
• 10 Micron Sintered Bronze Element
• Anodized Aluminum Body, 3/8" NPT Connection with Viton Seal
• 1 Year Limited Warranty, Manufactured in USA
