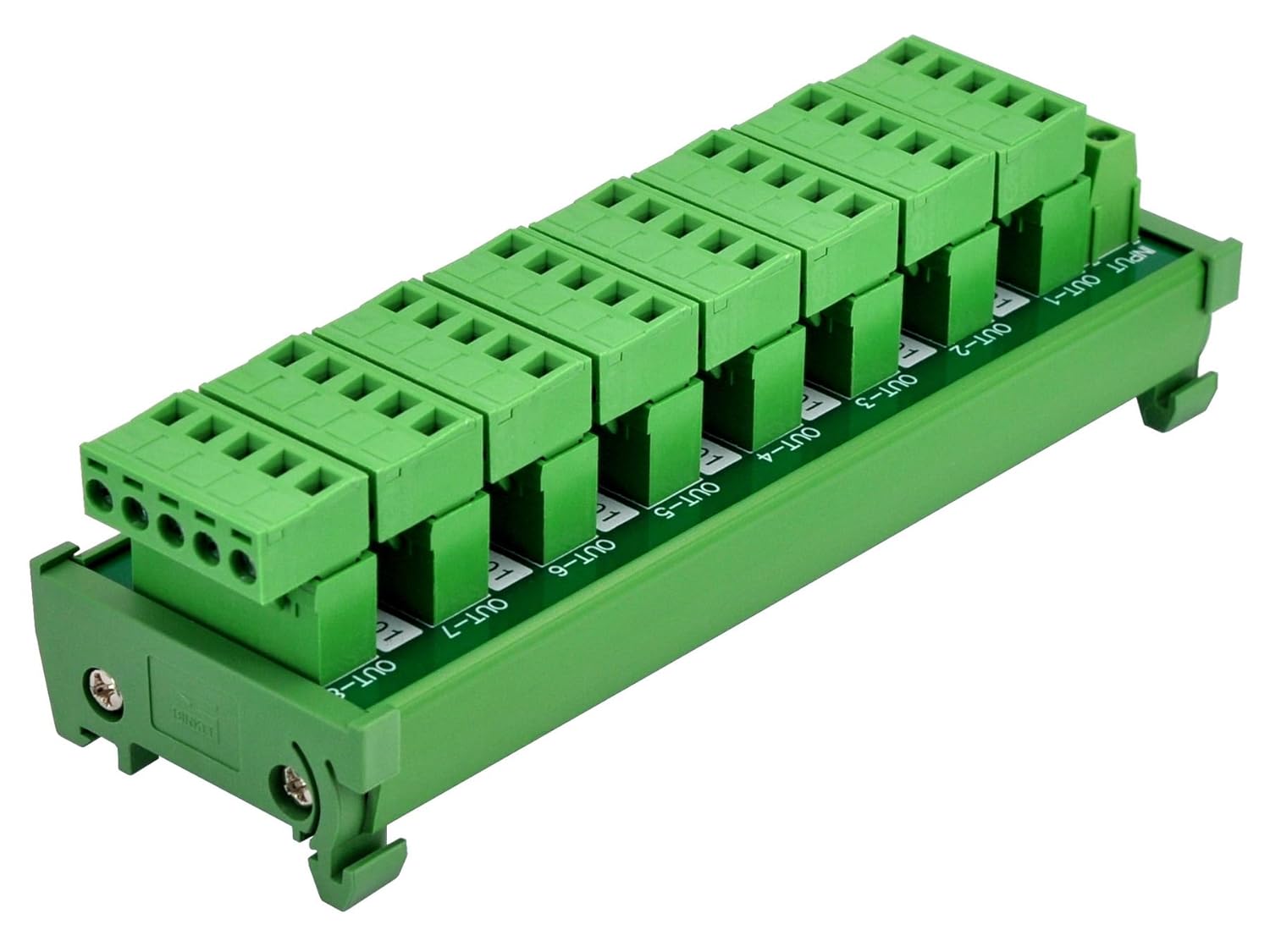

DIN Rail Mount 10A/300V Pluggable Screw Terminal Block Distribution Module (8x5 Pole)
4.7 (87 items)
Limited Time Sale$15.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218140267 | Release Date | 2026/05/03 | List Price | $10.00 | Model Number | 218140267 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Pluggable Terminal Block: Pluggable screw terminal block, top wire connects, pitch 5.08mm / 0.2", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position). 2, PCB mount Terminal Block: PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position). 3, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. FR-4 fiberglass dual copper layers PCB. 4, UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrie
- Pluggable Terminal Block: Pluggable screw terminal block, top wire connects, pitch 5.08mm / 0.2", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).
- PCB mount Terminal Block: PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
- UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
| Model | D-1603T to D-1610T series |
|---|---|
| Pitch | 5 Millimeters |
| Voltage | 300 Volts |
| Brand Name | OONO |
| Part Number | D-1603T to D-1610T series |
| Manufacturer | CZH-LABS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Number Of Poles | 40 |
| Specification Met | RoHS |
| Included Components | Distribution Module |
| Number of Positions | 40 |
